Unit · AXIAL-PISTON PUMP
AA11VLO190DRG/11R-VSD62K17R902205990
Axial piston pump Bosch Rexroth series A11VO, type code AA11VLO190DRG/11R-VSD62K17, material number R902205990. Nominal size: NG 190. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (A11V). Operating mode: pump, open circuit with charge pump (LO). Control device: pressure controller hydraulic remote controlled (DRG). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft ANSI B92.1a‒1976 for single pump (S). Mounting flange: SAE J744 ‒ 4-hole (D). Working port: SAE pressure and suction port at side, opposite, UNC fastening thread. Port thread, UNF with profile sealing ring based on ISO 11926 (62). Through drive: 152-4 (D) 1 3/4 in 13T 8/16DP D (K17).
- Number
- R902205990
- Type code
- AA11VLO190DRG/11R-VSD62K17
- Group
- A11VLO 190
- Edition
- 06/2020

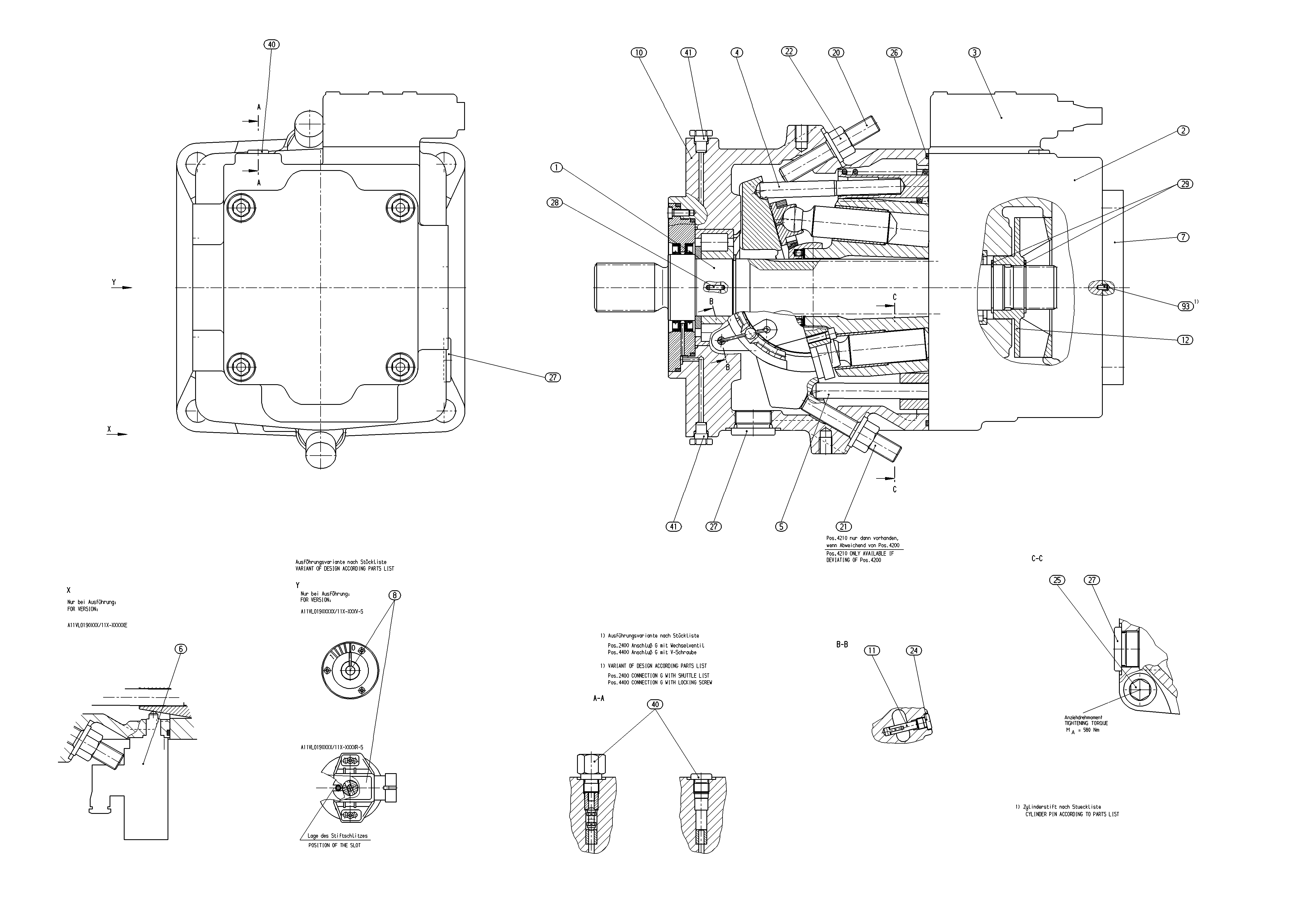

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902226942 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902229945 | CONNECTION PLATE, RL Assembly parts list →L | 1 | ||
| R902099631 | REGULATOR Assembly parts list →L | 1 | ||
| R902013631 | CONTROL Assembly parts list →L | 1 | ||
| R902007456 | CONTROL Assembly parts list →L | 1 | ||
| R902229947 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902120459 | HOUSING | 1 | ||
| R902132714 | PIVOT PIN | 4 | ||
| R909449866 | IMPELLER, RIGHT-HAND ROTATION | 1 | ||
| R909921095 | SETSCREW | 2 | ||
| R909153328 | SEALING NUTD | 2 | ||
| R909156649 | SCREW PLUGD | 4 | ||
| R909084762 | SOCKET HEAD CAP SCREW | 4 | ||
| R909157967 | O-RINGD | 1 | ||
| R902601857 | SCREW PLUG | 1 | ||
| R913016375 | SLOTTED SPRING PIN | 2 | ||
| R909083362 | RETAINING RING | 2 | ||
| R913044793 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi | A11V |
| Operating mode | Pump, open circuit with charge pump | LO |
| Size (NG) | 190 | 190 |
| Control device | Pressure controller hydraulic remote controlled | DRG |
| Index | Size 145 … 260 | 1 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 for single pump | S |
| Mounting flange | SAE J744 ‒ 4-hole | D |
| Working port | SAE pressure and suction port at side, opposite, UNC fastening thread. Port thread, UNF with profile sealing ring based on ISO 11926 | 62 |
| Through drive | 152-4 (D) 1 3/4 in 13T 8/16DP D | K17 |
