Unit · AXIAL-PISTON PUMP
A4VG065EP1BP000/40MRNC6V81U0000CE00-SR902207083
Axial piston pump Bosch Rexroth series A4VG, type code A4VG065EP1BP000/40MRNC6V81U0000CE00-S, material number R902207083. Nominal size: NG 65. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, U = 12 V electric (EP1). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). DA control valve (only for NG110 and 125): without DA control valve (0). Configuration of port and fastening threads: metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN (M). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) (N). Mounting flange: SAE J744 127-2/ (C6). Drive shaft: splined shaft 1 3/8 in 21T 16/32DP ANSI B92.1a–1976 (V8). Working port: SAE working port A and B, on left side (45° left) (1). Boost pump and rotary group configuration: standard rotary group without boost pump (U).
- Number
- R902207083
- Type code
- A4VG065EP1BP000/40MRNC6V81U0000CE00-S
- Group
- A4VG 65
- Edition
- 01/2020

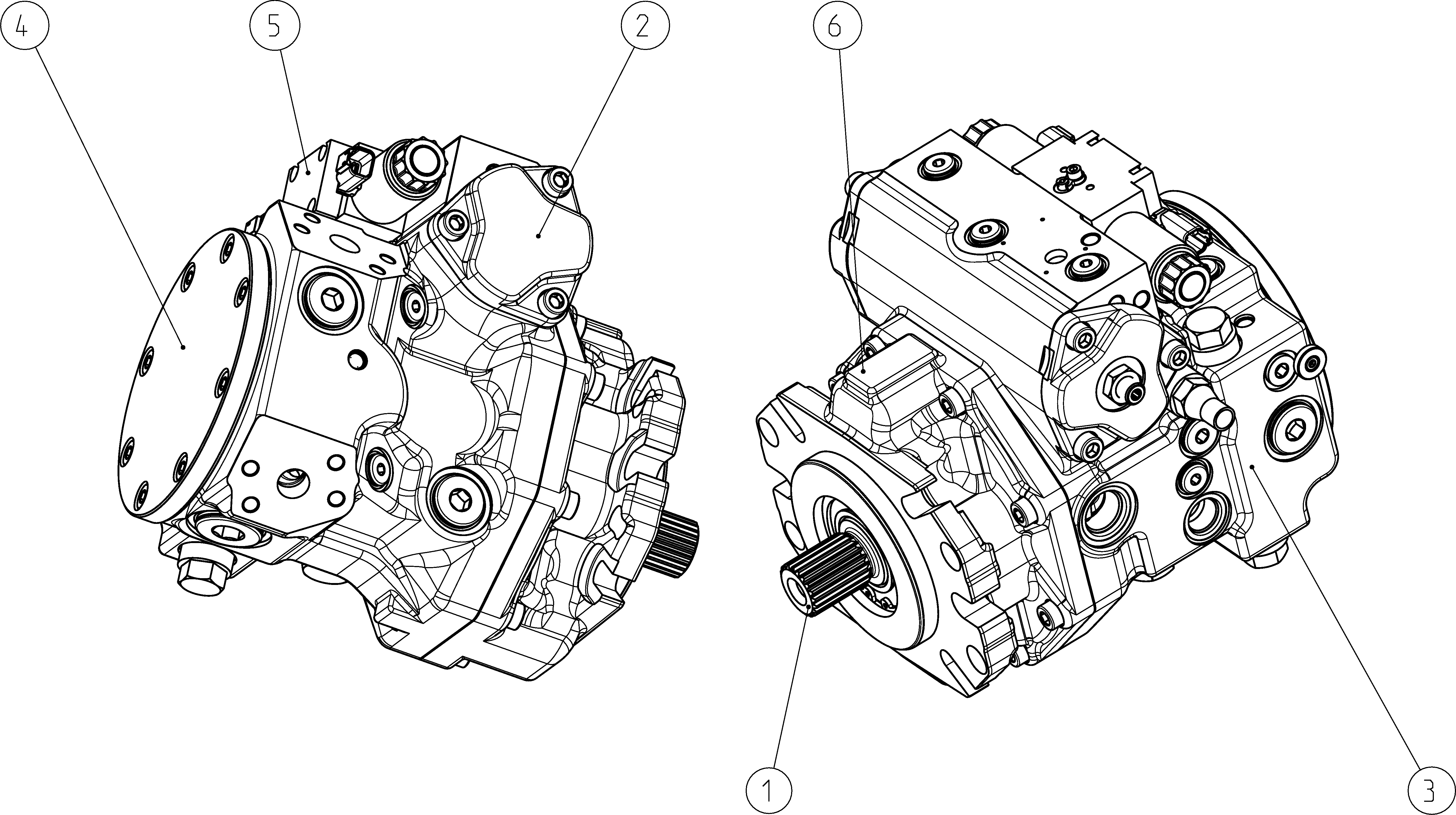

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902222771 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902121263 | CONTROL Assembly parts list →L | 1 | ||
| R902254010 | PUMP HOUSING Assembly parts list →L | 1 | ||
| R902132881 | PUMP COVER Assembly parts list →L | 1 | ||
| R902215750 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902230638 | BEARING FLANGE Assembly parts list →L | 1 | ||
| 98 | R902095813 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 65 | 065 |
| Control device | Proportional control, U = 12 V electric | EP1 |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
| Configuration of port and fastening threads | Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN | M |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) | N |
| Mounting flange | SAE J744 127-2/ | C6 |
| Drive shaft | Splined shaft 1 3/8 in 21T 16/32DP ANSI B92.1a–1976 | V8 |
| Working port | SAE working port A and B, on left side (45° left) | 1 |
| Boost pump and rotary group configuration | Standard rotary group without boost pump | U |
| Through drive | Without through drive | 0000 |
| Filtration boost circuit/external boost pressure supply | External boost pressure supply (on version without integrated boost pump) | E |
| Pressure sensor | Without pressure sensor | 0 |
| Other sensors | Without sensor | 0 |
| Standard / special version | Special version | S |
