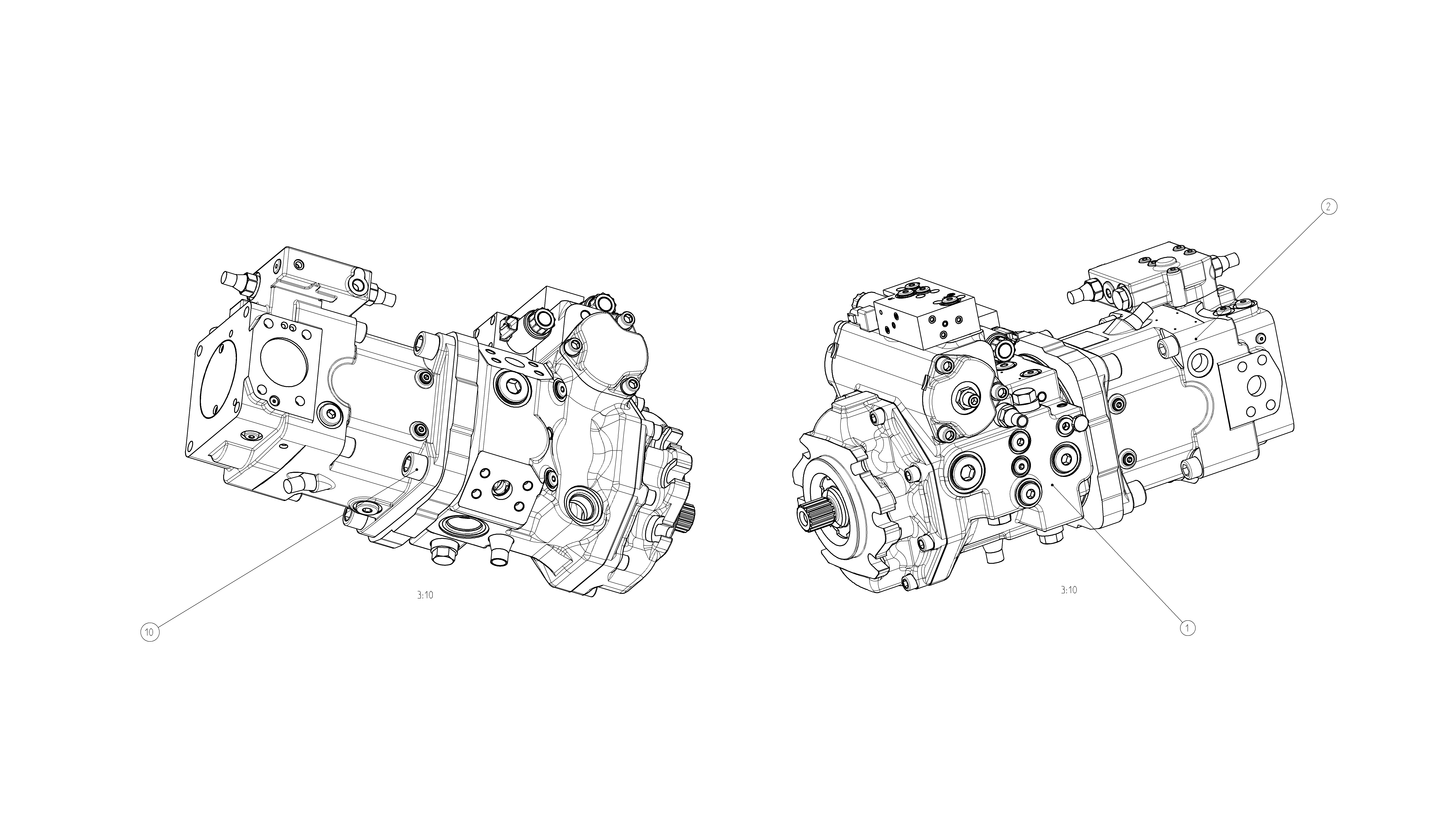

Unit · AXIAL-PISTON PUMP
A4VG085EV2DP/40MR+A11VO75LRS/10RR902207188
Axial piston pump Bosch Rexroth series A4VG, type code A4VG085EV2DP/40MR+A11VO75LRS/10R, material number R902207188. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Configuration of port and fastening threads: metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN (M). Direction of rotation: viewed on drive shaft clockwise (R).
- Number
- R902207188
- Type code
- A4VG085EV2DP/40MR+A11VO75LRS/10R
- Group
- A11VO 75
- Edition
- 01/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902207189 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902207223 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083154 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 85 | 085 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Configuration of port and fastening threads | Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN | M |
| Direction of rotation | Viewed on drive shaft clockwise | R |
