Unit · AXIAL-PISTON MOTOR
AA6VM107EP1D/63W-VSD517DTB-YR902207276
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM107EP1D/63W-VSD517DTB-Y, material number R902207276. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: proportional control, electric (with HIRSCHMANN U = 12 V connector – without suppressor diode) (EP1). Pressure control (only for HD and EP): pressure control Fixed setting (D). Direction of rotation: viewed on drive shaft bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft ANSI B92.1a (S). Mounting flange: SAE J744 - 4-bolt 165-4 (D). Working port: SAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7 (517). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R902207276
- Type code
- AA6VM107EP1D/63W-VSD517DTB-Y
- Group
- A6VM 107
- Edition
- 06/2020

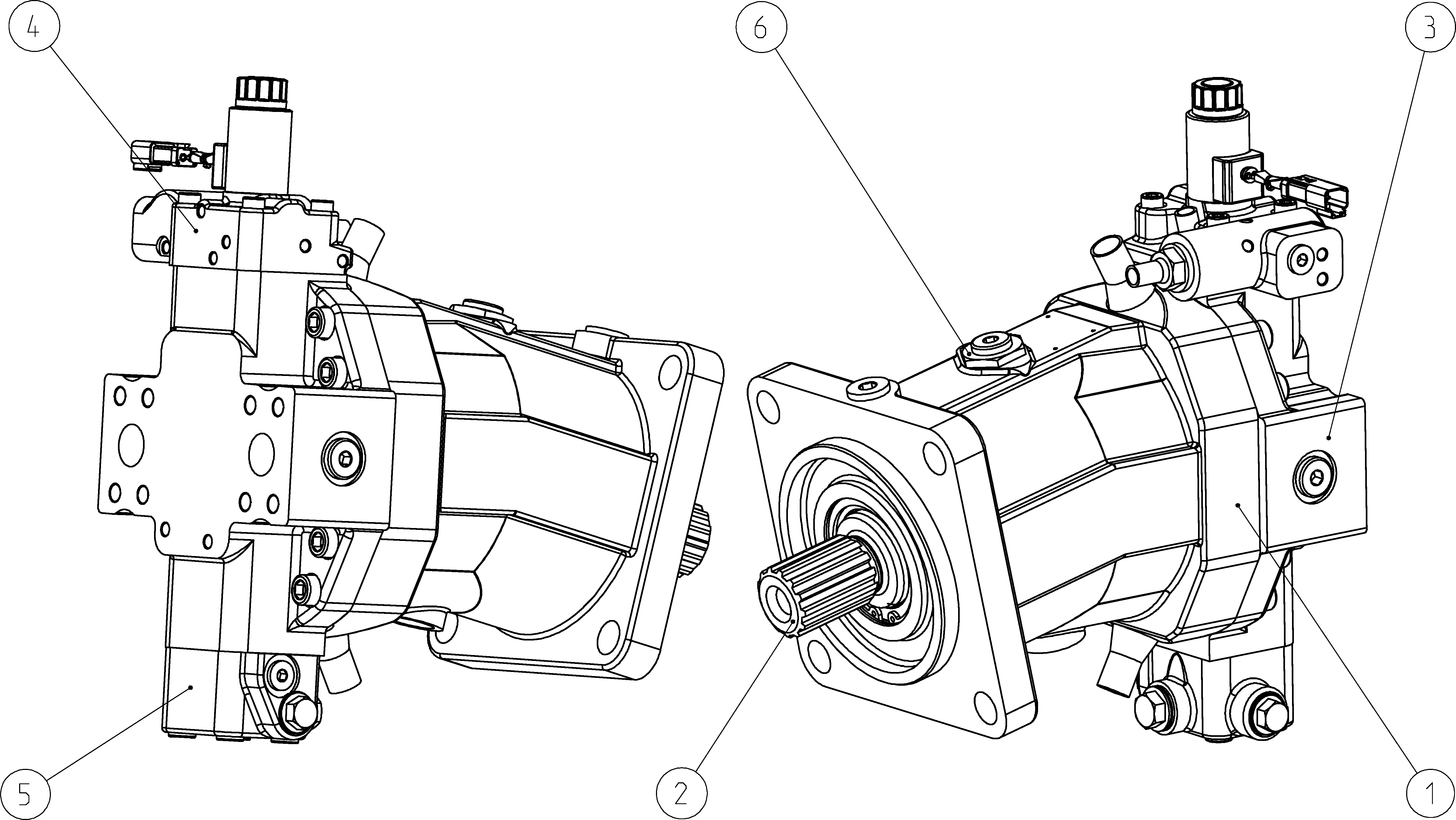

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902207677 | HOUSING Assembly parts list →L | 1 | ||
| R909604706 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902207660 | COVER PLATE Assembly parts list →L | 1 | ||
| R902102588 | CONTROL PART Assembly parts list →L | 1 | ||
| R902151505 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902132494 | THREADED REDUCING STUD Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Proportional control, electric (with HIRSCHMANN U = 12 V connector – without suppressor diode) | EP1 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft ANSI B92.1a | S |
| Mounting flange | SAE J744 - 4-bolt 165-4 | D |
| Working port | SAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7 | 517 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
