Unit · AXIAL-PISTON PUMP
AA4VG40HD3D1/32R-NSCXXF003D-SR902208578
Axial piston pump Bosch Rexroth series A4VG, type code AA4VG40HD3D1/32R-NSCXXF003D-S, material number R902208578. Nominal size: NG 40. Axial piston unit: swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control pilot-pressure related, with inlet filtration in P hydraulic (HD3). Pressure cut-off: pressure cut-off (D). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft for single pump ANSI B92.1a (S). Mounting flange: SAE J744 2-hole (C). Boost pump: integrated boost pump with and without through drive (F). Through drive: without through drive, only for version N and F (00). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve 3600 to 6100 psi without bypass direct operated, fixed setting (250 to 420 bar) (3). Filtration boost circuit/external boost pressure supply: filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and Fa) (D). Standard/special version: special version (-S).
- Number
- R902208578
- Type code
- AA4VG40HD3D1/32R-NSCXXF003D-S
- Group
- A4VG 40
- Edition
- 02/2020

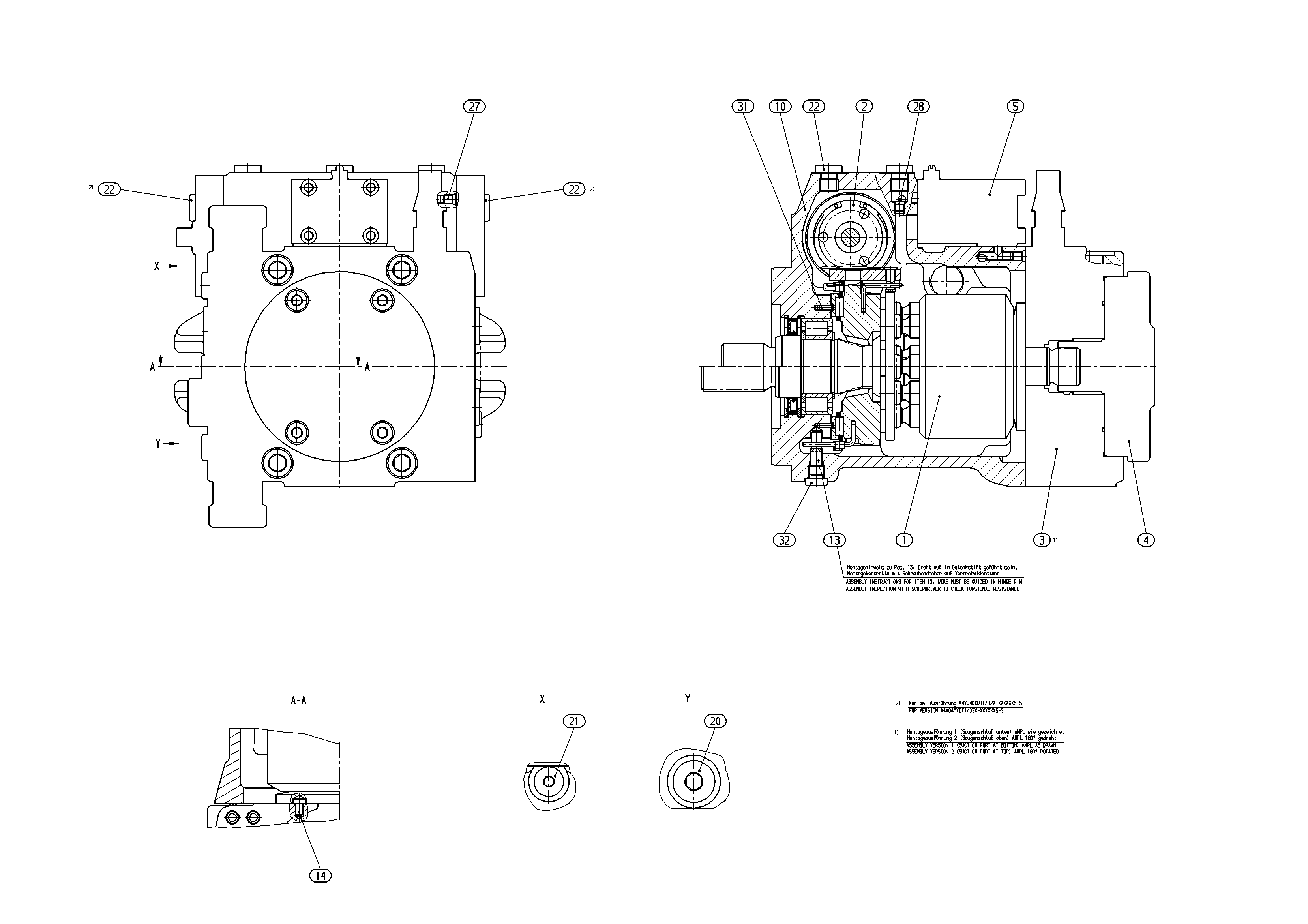

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902199676 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902043307 | CONTROL Assembly parts list →L | 1 | ||
| R902062457 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909606688 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902107328 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902103593 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909154478 | SCREW PLUGD | 3 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156495 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| 98 | R902002419 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 40 | 40 |
| Control device | Proportional control pilot-pressure related, with inlet filtration in P hydraulic | HD3 |
| Pressure cut-off | Pressure cut-off | D |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft for single pump ANSI B92.1a | S |
| Mounting flange | SAE J744 2-hole | C |
| Boost pump | Integrated boost pump with and without through drive | F |
| Through drive | Without through drive, only for version N and F | 00 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve 3600 to 6100 psi without bypass direct operated, fixed setting (250 to 420 bar) | 3 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and Fa) | D |
| Standard/special version | Special version | -S |
