Unit · AXIAL-PISTON MOTOR
A6VM55HD6/63W-VZB02700BR902208655
Axial piston motor Bosch Rexroth series A6VM, type code A6VM55HD6/63W-VZB02700B, material number R902208655. Nominal size: NG 55. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R902208655
- Type code
- A6VM55HD6/63W-VZB02700B
- Group
- A6VM 55
- Edition
- 06/2020

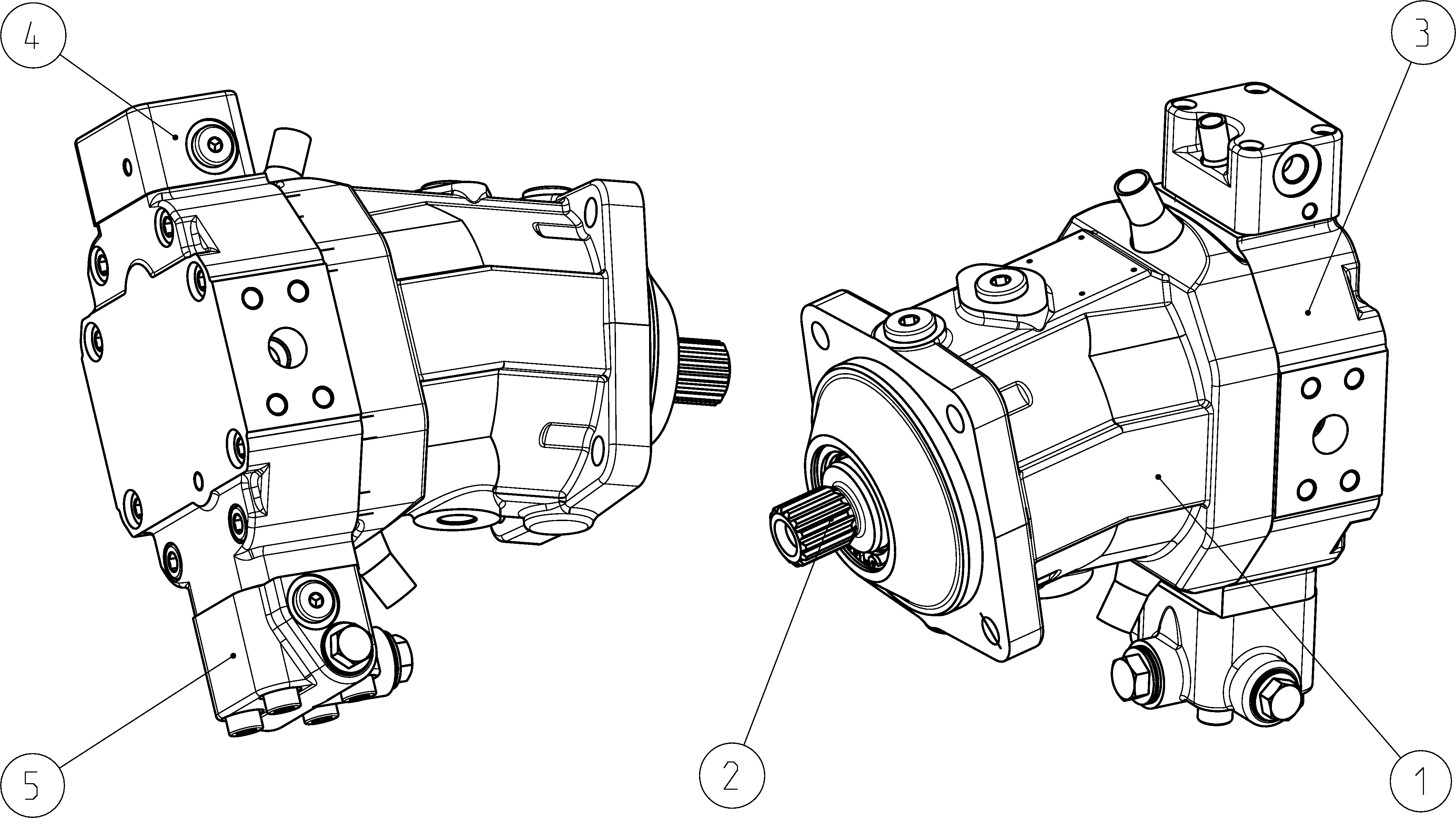

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902206802 | HOUSING Assembly parts list →L | 1 | ||
| R909603915 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902182184 | COVER PLATE Assembly parts list →L | 1 | ||
| R909603920 | CONTROL PART Assembly parts list →L | 1 | ||
| R902241033 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 55 | 55 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 027 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
