Unit · PUMP COMBINATION
A4VG210EP0/40NR+A4VG210EP0/40NRR902208749
Pump combination Bosch Rexroth series A4VG, type code A4VG210EP0/40NR+A4VG210EP0/40NR, material number R902208749. Nominal size: NG 21. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: without pressure cut-off without bypass (0). Additional function: neutral valve U = 12 V and mechanical stroke limiter, externally adjustable (P). DA control valve (only for NG110 and 125): without DA control valve (0). Direction of rotation: viewed on drive shaft clockwise (R).
- Number
- R902208749
- Type code
- A4VG210EP0/40NR+A4VG210EP0/40NR
- Group
- A4VG 210
- Edition
- 01/2020

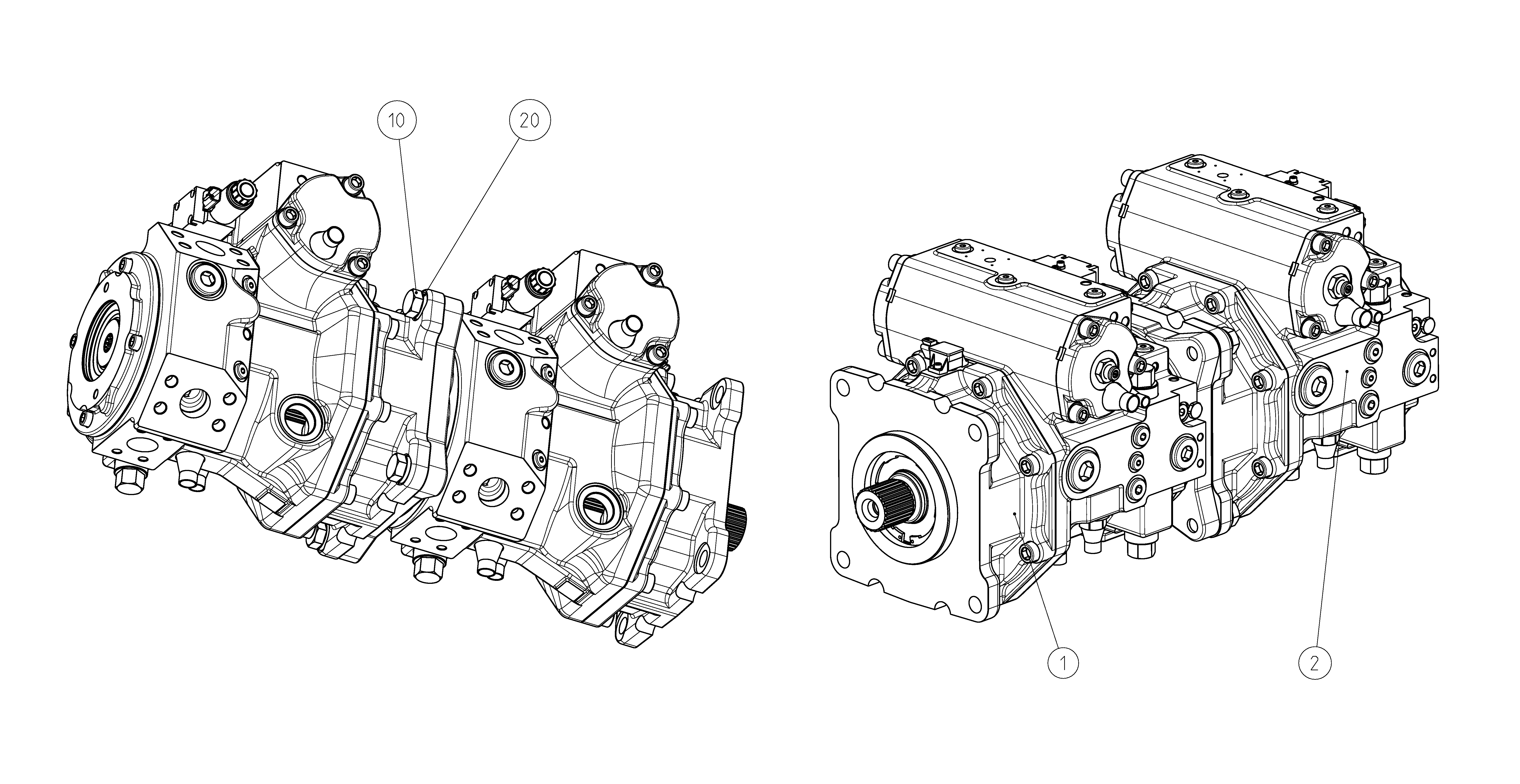

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902208800 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902208801 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909152538 | HEXAGON SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 21 | 21 |
| Pressure cut-off | Without pressure cut-off without bypass | 0 |
| Additional function | Neutral valve U = 12 V and mechanical stroke limiter, externally adjustable | P |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
