Unit · AXIAL-PISTON PUMP
AA10VG45EP71/10R-NSC68FXX4DP-SR902208827
Axial piston pump Bosch Rexroth series A10VG, type code AA10VG45EP71/10R-NSC68FXX4DP-S, material number R902208827. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 4350 psi (300 bar), maximum pressure 5100 psi (AA10V). Operating mode: pump, closed circuit (G). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (flurocarbon rubber) (N). Drive shaft: splined shaft ANSI B92.1a–1976 for single pump (S). Mounting flange: SAE J744 2-hole (C). Working port (port plate): threaded port A and B, same side left suction port S bottom (68). Boost pump: integrated boost pump with and without through drive (F). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve direct operated, fixed setting 1450 … 3600 psi without bypass (100 … 250 bar) (4). Filtration boost circuit/external boost pressure supply: filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and G (Fa)) (D). Connector for solenoids: DEUTSCH molded connector, 2-pin, without suppressor diode DT04-2P (P). Standard/special version: special version (-S).
- Number
- R902208827
- Type code
- AA10VG45EP71/10R-NSC68FXX4DP-S
- Group
- A10VG 45
- Edition
- 06/2020

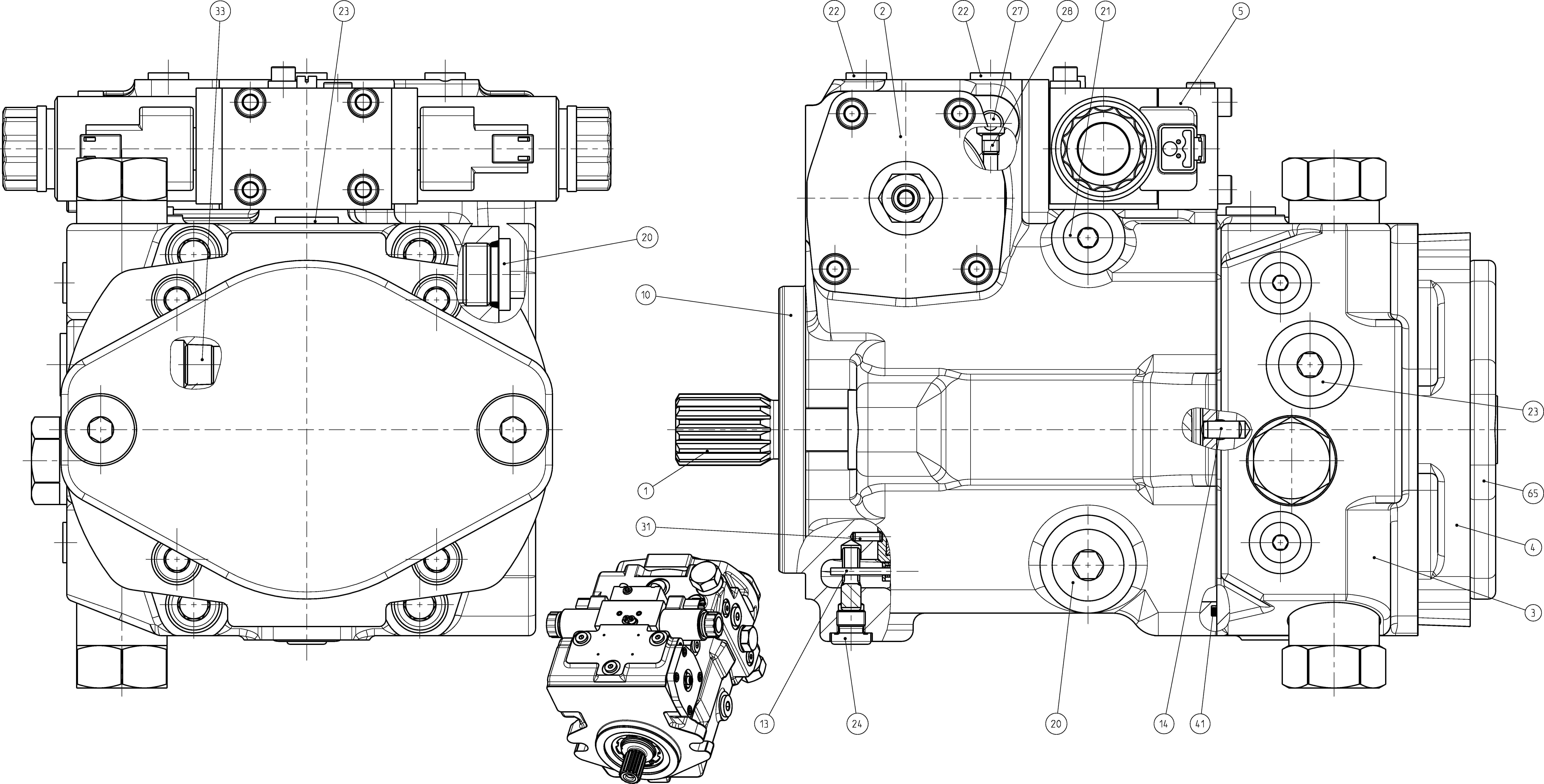

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902100538 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902009489 | CONTROL Assembly parts list →L | 1 | ||
| R902044926 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902195654 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902168268 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902015661 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| R909153339 | SCREW PLUGD | 2 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909154478 | SCREW PLUGD | 3 | ||
| R909153338 | SCREW PLUGD | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909087912 | SCREW PLUG | 1 | ||
| R909085364 | O-RINGD | 1 | ||
| R909438015 | COVER Assembly parts list →L | 1 | ||
| 98 | R902095615 | SEAL KITD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 4350 psi (300 bar), maximum pressure 5100 psi | AA10V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 45 | 45 |
| DA control valve | Without DA control valve | 1 |
| Series | Series 1, index 0 | 10 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (flurocarbon rubber) | N |
| Drive shaft | Splined shaft ANSI B92.1a–1976 for single pump | S |
| Mounting flange | SAE J744 2-hole | C |
| Working port (port plate) | Threaded port A and B, same side left suction port S bottom | 68 |
| Boost pump | Integrated boost pump with and without through drive | F |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve direct operated, fixed setting 1450 … 3600 psi without bypass (100 … 250 bar) | 4 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and G (Fa)) | D |
| Connector for solenoids | DEUTSCH molded connector, 2-pin, without suppressor diode DT04-2P | P |
| Standard/special version | Special version | -S |
