Unit · PUMP COMBINATION
A4VG175EP2DP000/40+A4VG175EP2DP000/40R902208843
Pump combination Bosch Rexroth series A4VG, type code A4VG175EP2DP000/40+A4VG175EP2DP000/40, material number R902208843. Nominal size: NG 175. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, electric U = 24 V (EP2). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). DA control valve (only for NG110 and 125): without DA control valve (0).
- Number
- R902208843
- Type code
- A4VG175EP2DP000/40+A4VG175EP2DP000/40
- Group
- A4VG 175
- Edition
- 01/2020

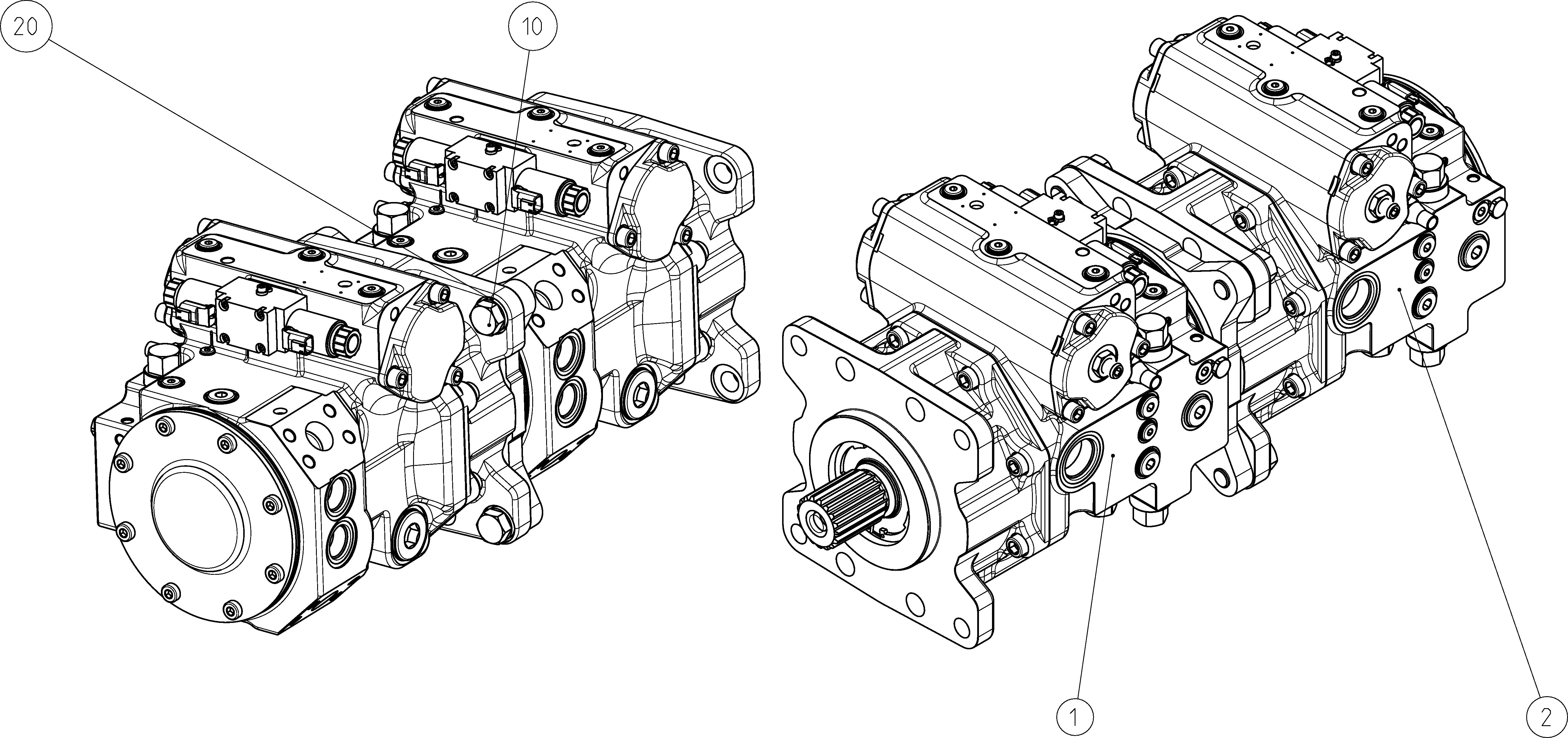

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902208844 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902208845 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909085746 | HEXAGON SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 175 | 175 |
| Control device | Proportional control, electric U = 24 V | EP2 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
