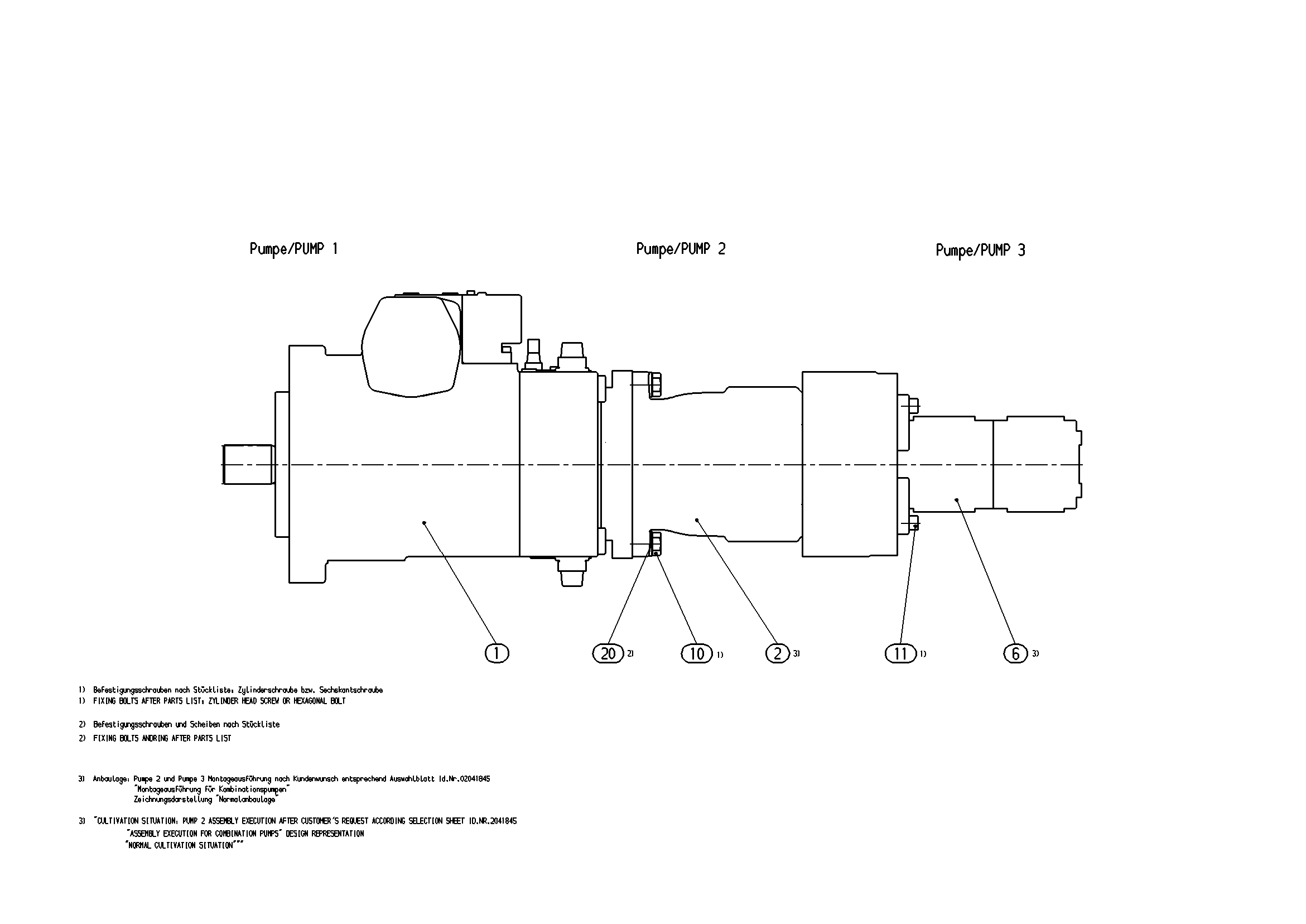

Unit · PUMP COMBINATION
AA4VG180EP3/32+A10VO85EP1/53-SKR902208904
Pump combination Bosch Rexroth series A4VG, type code AA4VG180EP3/32+A10VO85EP1/53-SK, material number R902208904. Nominal size: NG 180. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional U = 12 V control electric with proportional solenoid (EP3).
- Number
- R902208904
- Type code
- AA4VG180EP3/32+A10VO85EP1/53-SK
- Group
- A10VO 85
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902208903 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902466693 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R979022495 | HYDRAULIC GEAR PUMP | 1 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083058 | SOCKET HEAD CAP SCREW | 2 | ||
| R902040708 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 180 | 180 |
| Control device | Proportional U = 12 V control electric with proportional solenoid | EP3 |
| Series | Series 3, index 2 | 32 |
