Unit · AXIAL-PISTON PUMP
AA11VLO145EP4D/11R-WSD07K02T-SR902208914
Axial piston pump Bosch Rexroth series A11VO, type code AA11VLO145EP4D/11R-WSD07K02T-S, material number R902208914. Nominal size: NG 145. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit with charge pump (LO). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: splined shaft ANSI B92.1a‒1976 for single pump (S). Mounting flange: SAE J744 ‒ 4-hole (D). Working port: SAE pressure and suction port lateral, opposite, metric fastening thread according to DIN 13. Port thread, UNF with O-ring based on ISO 11926 (07). Through drive: 101-2 (B) 7/8 in 13T 16/32DP B (K02). Standard/special version: special version (S).
- Number
- R902208914
- Type code
- AA11VLO145EP4D/11R-WSD07K02T-S
- Group
- A11VLO 145
- Edition
- 06/2020

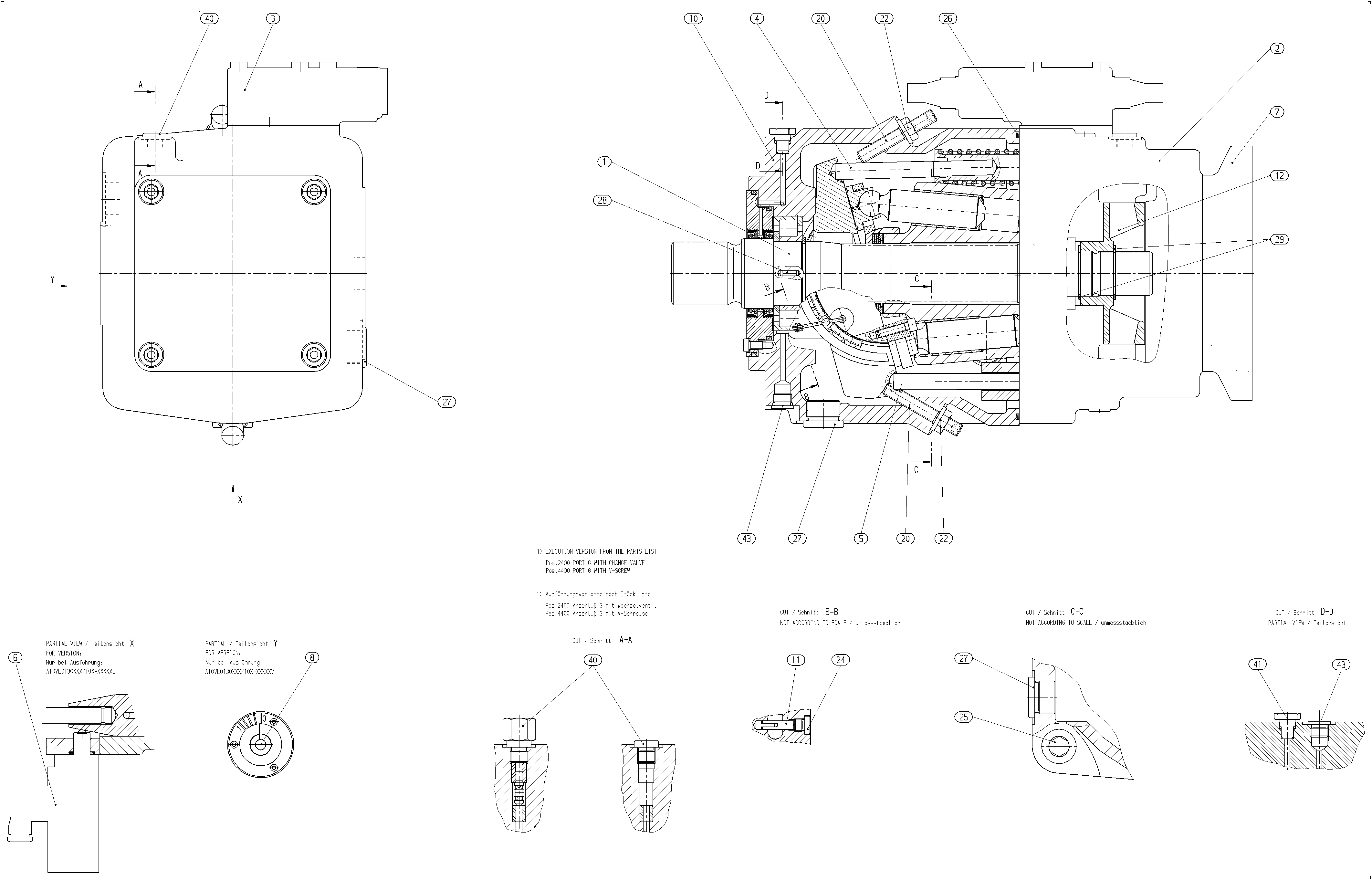

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902152545 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902154531 | CONNECTION PLATE, RL Assembly parts list →L | 1 | ||
| R902153203 | REGULATOR Assembly parts list →L | 1 | ||
| R909601773 | CONTROL Assembly parts list →L | 1 | ||
| R909601775 | CONTROL Assembly parts list →L | 1 | ||
| R902213616 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902157978 | HOUSING | 1 | ||
| R902132714 | PIVOT PIN | 4 | ||
| R909921832 | IMPELLER, RIGHT-HAND ROTATION | 1 | ||
| R909449078 | SETSCREW | 2 | ||
| R909152426 | SEALING NUTD | 2 | ||
| R909156649 | SCREW PLUGD | 4 | ||
| R909830782 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831545 | O-RINGD | 1 | ||
| R910967351 | SCREW PLUG | 1 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909083360 | RETAINING RING | 2 | ||
| R902220059 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R902600612 | BLEEDER VALVE | 1 | ||
| R909157039 | SCREW PLUGD | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit with charge pump | LO |
| Size (NG) | 145 | 145 |
| Index | Size 145 … 260 | 1 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 for single pump | S |
| Mounting flange | SAE J744 ‒ 4-hole | D |
| Working port | SAE pressure and suction port lateral, opposite, metric fastening thread according to DIN 13. Port thread, UNF with O-ring based on ISO 11926 | 07 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP B | K02 |
| Standard/special version | Special version | S |
