Unit · AXIAL-PISTON MOTOR
A6VE80HA1T/63W-VAL02700AR902208990
Axial piston motor Bosch Rexroth series A6VM, type code A6VE80HA1T/63W-VAL02700A, material number R902208990. Nominal size: NG 80. Axial piston unit: bent-axis design, variable (A6V). Control device: automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar (HA1). Override (only for HA): override, hydraulic, remote controlled, proportional (T). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Beginning of control: at Vg min (standard for HA) (A).
- Number
- R902208990
- Type code
- A6VE80HA1T/63W-VAL02700A
- Group
- A6VE 80
- Edition
- 06/2020

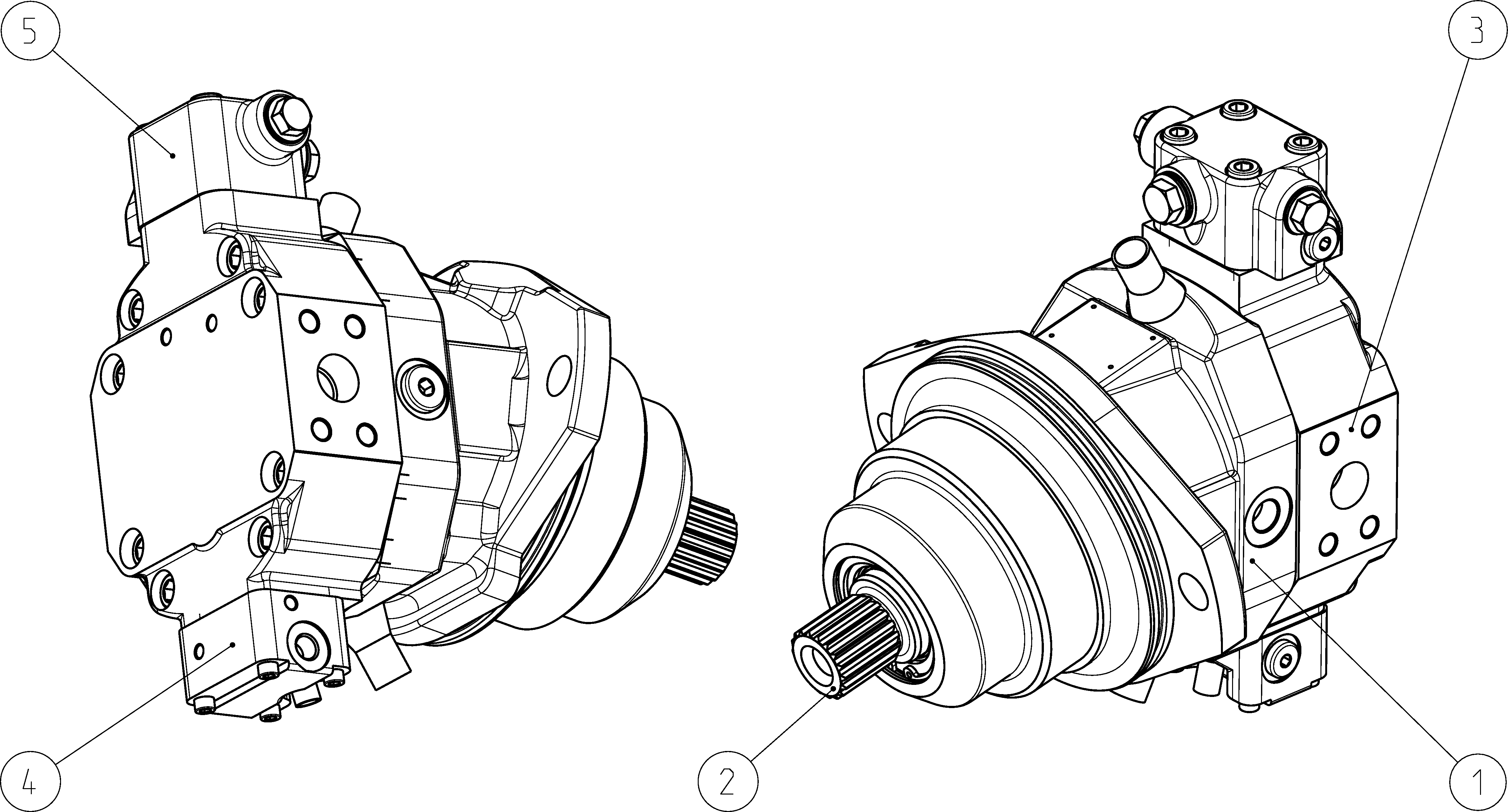

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902191946 | HOUSING Assembly parts list →L | 1 | ||
| R909604145 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902156193 | COVER PLATE Assembly parts list →L | 1 | ||
| R909604154 | CONTROL PART Assembly parts list →L | 1 | ||
| R902189489 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 80 | 80 |
| Control device | Automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar | HA1 |
| Override (only for HA) | Override, hydraulic, remote controlled, proportional | T |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 027 |
| Beginning of control | At Vg min (standard for HA) | A |
