Unit · AXIAL-PISTON MOTOR

A6VM107DA1/63W-VZB01700BR902209957

Axial piston motor Bosch Rexroth series A6VM, type code A6VM107DA1/63W-VZB01700B, material number R902209957. Nominal size: NG 107. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: automatic control, speed related pSt/pHD = 3/100, hydraulic travel direction valve (DA). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7 (017). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).

Number
R902209957
Type code
A6VM107DA1/63W-VZB01700B
Group
A6VM 107
Edition
06/2020

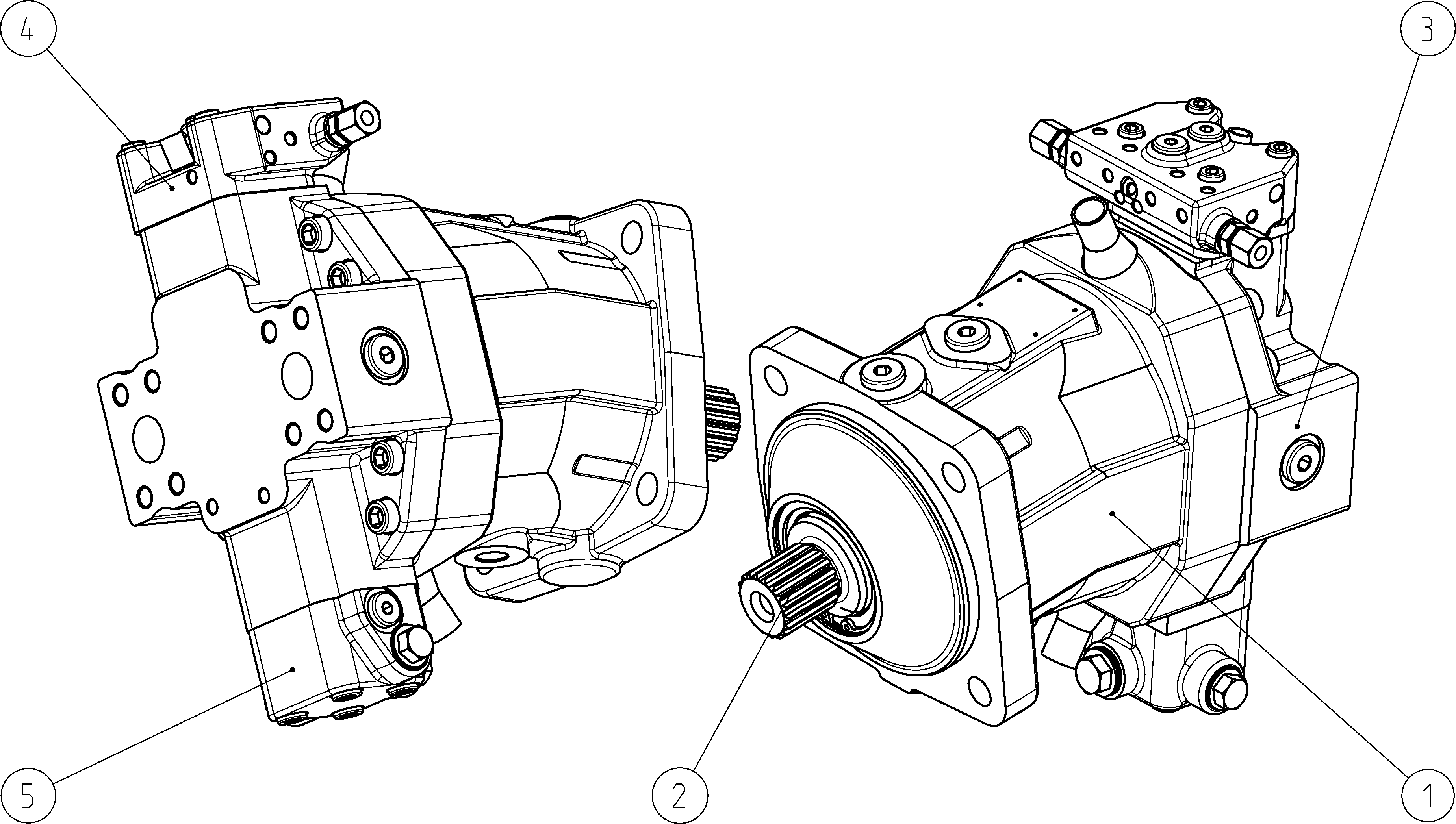

A6VM107DA1/63W-VZB01700B — Drawing
Pos.NumberNameQtyAdd to inquiry
R902203737HOUSING Assembly parts list →L1
R909603781ROTARY GROUP Assembly parts list →L1
R902158798COVER PLATE Assembly parts list →L1
R909603794CONTROL PART Assembly parts list →L1
R902206858FLUSH/BOOST PRESSURE VALVE Assembly parts list →L1

Parameters from the type code

ItemMeaningCode
Axial piston unitBent-axis design, variableA6V
Operating modeMotorM
Size (NG)107107
Control deviceAutomatic control, speed related pSt/pHD = 3/100, hydraulic travel direction valveDA
SeriesSeries 6, index 363
Direction of rotationViewed on drive shaft variableW
Sealing materialFKM (fluoroelastomer)V
Drive shaftSplined shaft DIN 5480Z
Mounting flangeISO 3019-2 4-holeB
Working portSAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7017
Beginning of controlAt Vg max (standard for HD, HZ, EP, EZ, DA)B

Other versions 11
