Unit · AXIAL-PISTON PUMP
A10VG28EZ1DM1/10R-XXC15K045EQ-SR902211512
Axial piston pump Bosch Rexroth series A10VG, type code A10VG28EZ1DM1/10R-XXC15K045EQ-S, material number R902211512. Nominal size: NG 28. Operating mode: pump, closed circuit (G). Control device: two-point control, electric with switching solenoid (EZ1). Pressure cut-off: pressure cut-off (D). Mechanical stroke limiter: mechanical stroke limiter, externally adjustable (M). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R). Mounting flange: SAE J744 2-hole (C). Boost pump: without integrated boost pump with through drive (K). Through drive: flange SAE J744 Hub for splined shaft, 101-2 (B) 1 in 15T 16/32DP (04). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve direct operated, 3600 … 4650 psi fixed setting (250 … 320 bar) with bypass (5). Filtration boost circuit/external boost pressure supply: external boost pressure supply (on version without integrated boost pump N and K) (E). Connector for solenoids: DEUTSCH molded connector, 2-pin, DT04-2P with suppressor diode (only for EZ and DA switching solenoid) (Q). Standard/special version: special version (-S).
- Number
- R902211512
- Type code
- A10VG28EZ1DM1/10R-XXC15K045EQ-S
- Group
- A10VG 28
- Edition
- 06/2020

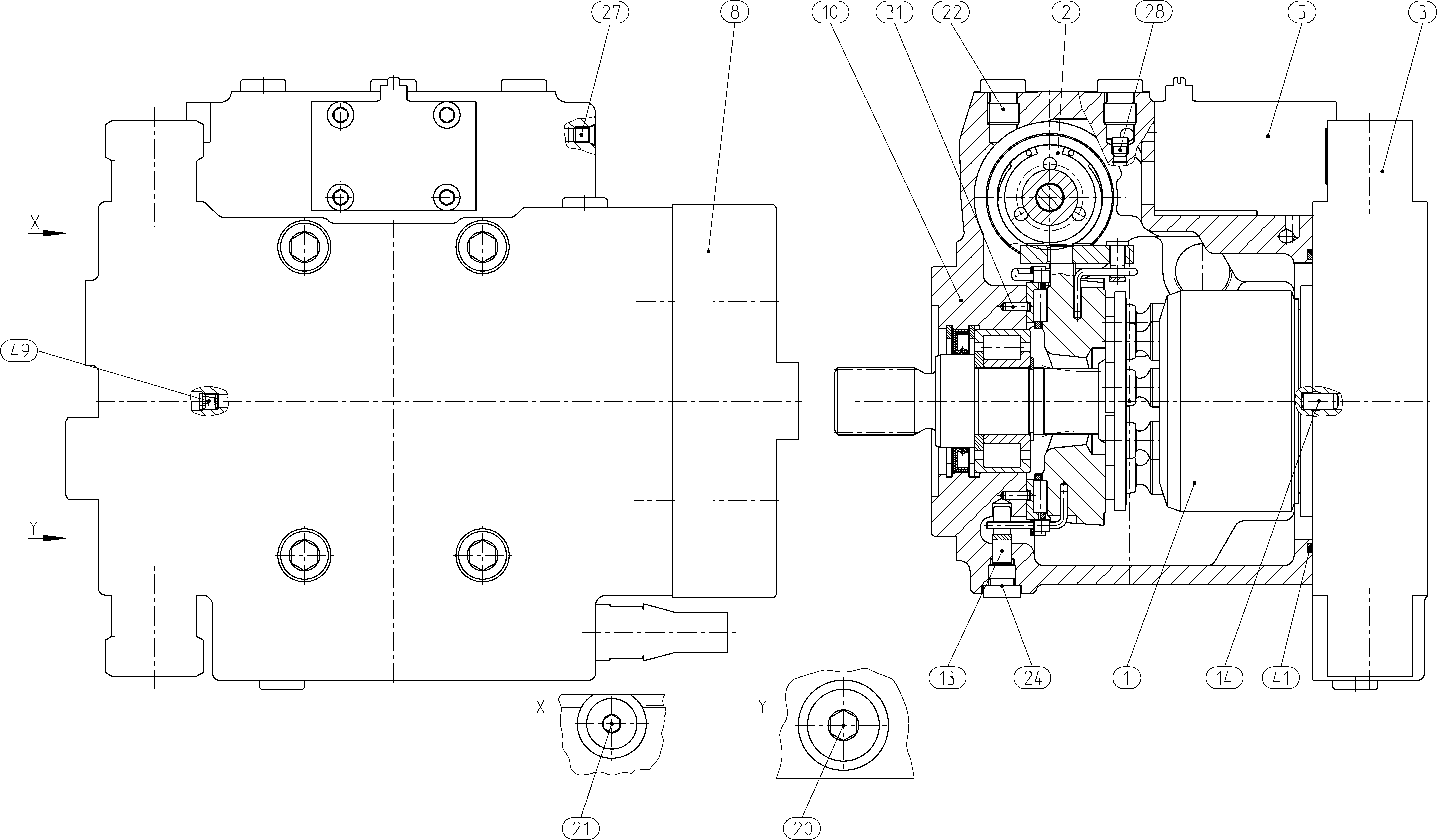

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902224762 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902084787 | CONTROL Assembly parts list →L | 1 | ||
| R902211263 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902087254 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R902015665 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 1 | ||
| R913009665 | STRAIGHT PIN | 1 | ||
| R909151694 | SCREW PLUG | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| 23 | R909153815 | SCREW PLUGD | 1 | |
| R909153364 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909086547 | O-RINGD | 1 | ||
| R909156497 | NOZZLE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 28 | 28 |
| Control device | Two-point control, electric with switching solenoid | EZ1 |
| Pressure cut-off | Pressure cut-off | D |
| Mechanical stroke limiter | Mechanical stroke limiter, externally adjustable | M |
| DA control valve | Without DA control valve | 1 |
| Series | Series 1, index 0 | 10 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Mounting flange | SAE J744 2-hole | C |
| Boost pump | Without integrated boost pump with through drive | K |
| Through drive | Flange SAE J744 Hub for splined shaft, 101-2 (B) 1 in 15T 16/32DP | 04 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve direct operated, 3600 … 4650 psi fixed setting (250 … 320 bar) with bypass | 5 |
| Filtration boost circuit/external boost pressure supply | External boost pressure supply (on version without integrated boost pump N and K) | E |
| Connector for solenoids | DEUTSCH molded connector, 2-pin, DT04-2P with suppressor diode (only for EZ and DA switching solenoid) | Q |
| Standard/special version | Special version | -S |
