Unit · AXIAL-PISTON PUMP
A4VG175EP1DX0U0/40NLND6A21XB1S5BS00-SR902211606
Axial piston pump Bosch Rexroth series A4VG, type code A4VG175EP1DX0U0/40NLND6A21XB1S5BS00-S, material number R902211606. Nominal size: NG 175. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, U = 12 V electric (EP1). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Swivel angle sensor: without swivel angle sensor (0). Additional function: neutral valve U = 24 V (U). DA control valve (only for NG110 and 125): without DA control valve (0). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) (N). Mounting flange: SAE J744 152-2/4 (D6). Drive shaft: splined shaft DIN 5480 W50×2×24×9g (A2). Working port: SAE working port A and B, on left side (45° left) (1). Through drive: 101-2 (B) B1 1 in 15T 16/32DP S5 (B1S5). Filtration boost circuit/external boost pressure supply: filtration in the boost pump suction line (S).
- Number
- R902211606
- Type code
- A4VG175EP1DX0U0/40NLND6A21XB1S5BS00-S
- Group
- A4VG 175
- Edition
- 01/2020

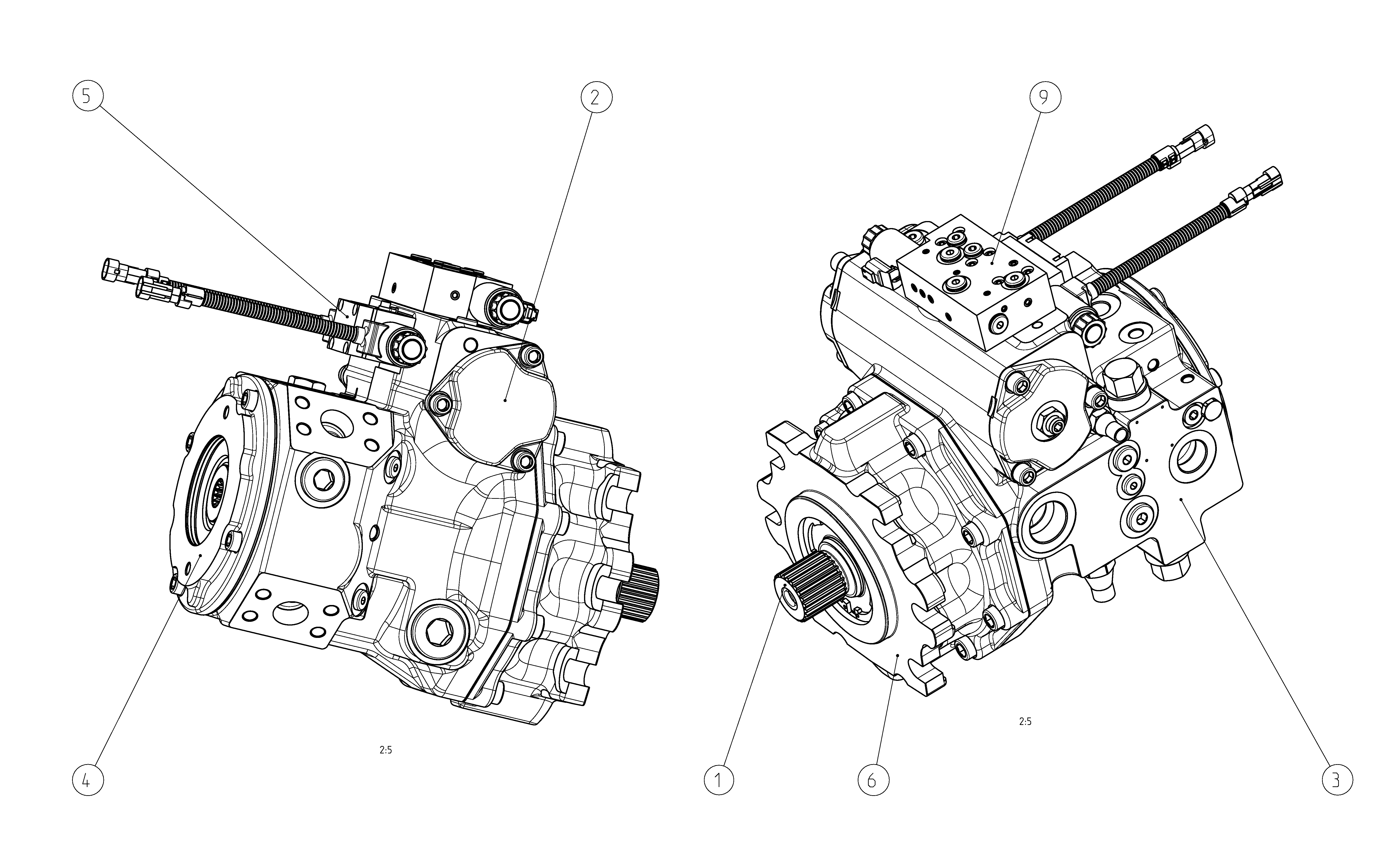

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902205435 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902201236 | CONTROL Assembly parts list →L | 1 | ||
| R902213324 | PUMP HOUSING Assembly parts list →L | 1 | ||
| R902161638 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902239049 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902157457 | BEARING FLANGE Assembly parts list →L | 1 | ||
| R902206240 | UNLOADING VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 175 | 175 |
| Control device | Proportional control, U = 12 V electric | EP1 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Neutral valve U = 24 V | U |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) | N |
| Mounting flange | SAE J744 152-2/4 | D6 |
| Drive shaft | Splined shaft DIN 5480 W50×2×24×9g | A2 |
| Working port | SAE working port A and B, on left side (45° left) | 1 |
| Through drive | 101-2 (B) B1 1 in 15T 16/32DP S5 | B1S5 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump suction line | S |
| Pressure sensor | Without pressure sensor | 0 |
| Other sensors | Without sensor | 0 |
| Standard / special version | Special version | S |
