Unit · PUMP COMBINATION
A4VG085EP1/40ML+A4VG085EP1/40MLR902211708
Pump combination Bosch Rexroth series A4VG, type code A4VG085EP1/40ML+A4VG085EP1/40ML, material number R902211708. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, U = 12 V electric (EP1).
- Number
- R902211708
- Type code
- A4VG085EP1/40ML+A4VG085EP1/40ML
- Group
- A4VG 85
- Edition
- 01/2020

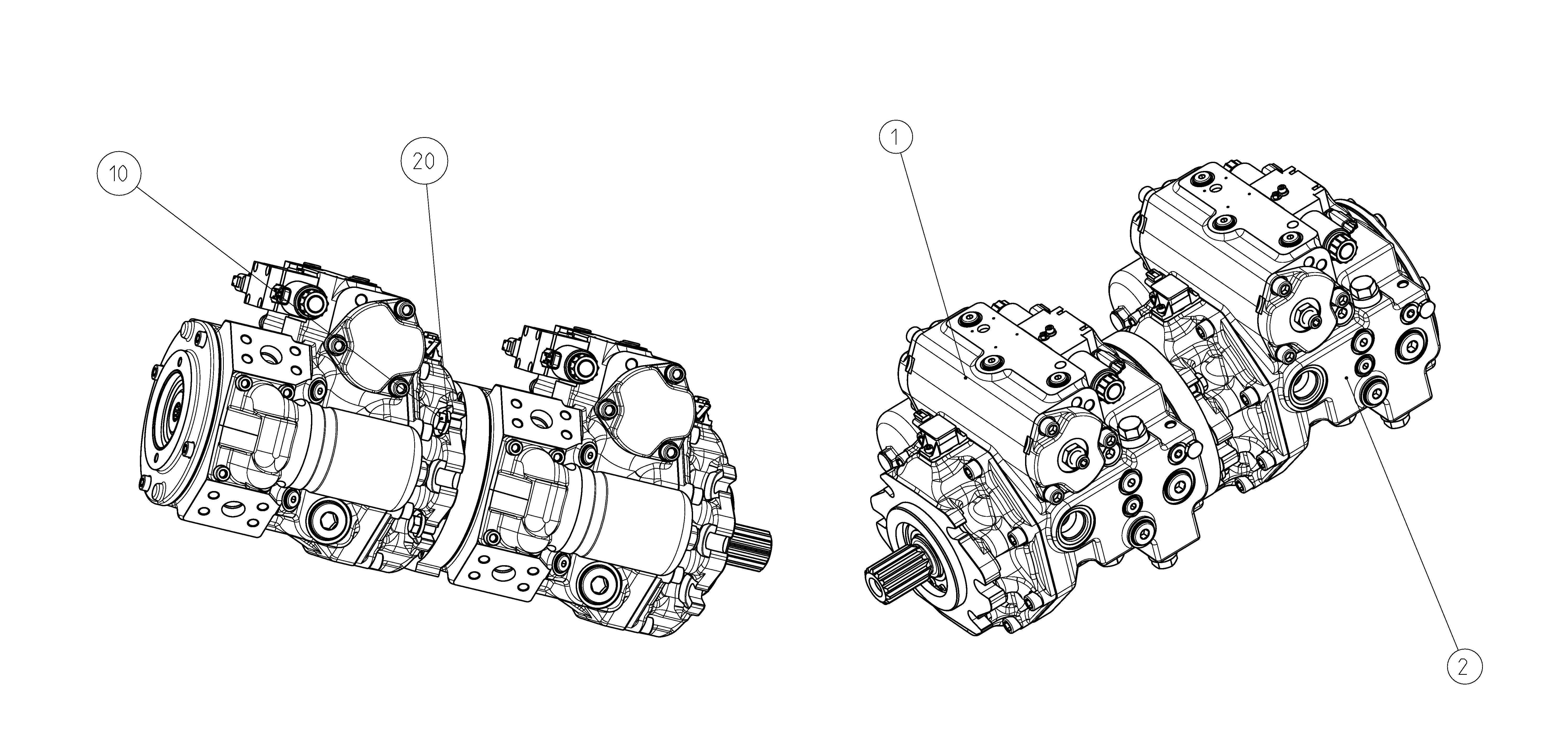

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902211793 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902211794 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083708 | HEXAGON SCREW | 4 | ||
| R909430409 | WASHER | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 85 | 085 |
| Control device | Proportional control, U = 12 V electric | EP1 |
