Unit · AXIAL-PISTON MOTOR
AA6VM80HZ3/63W-VSC51X00B-SR902211724
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM80HZ3/63W-VSC51X00B-S, material number R902211724. Nominal size: NG 80. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: two-point control, hydraulic (HZ). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S).
- Number
- R902211724
- Type code
- AA6VM80HZ3/63W-VSC51X00B-S
- Group
- A6VM 80
- Edition
- 06/2020

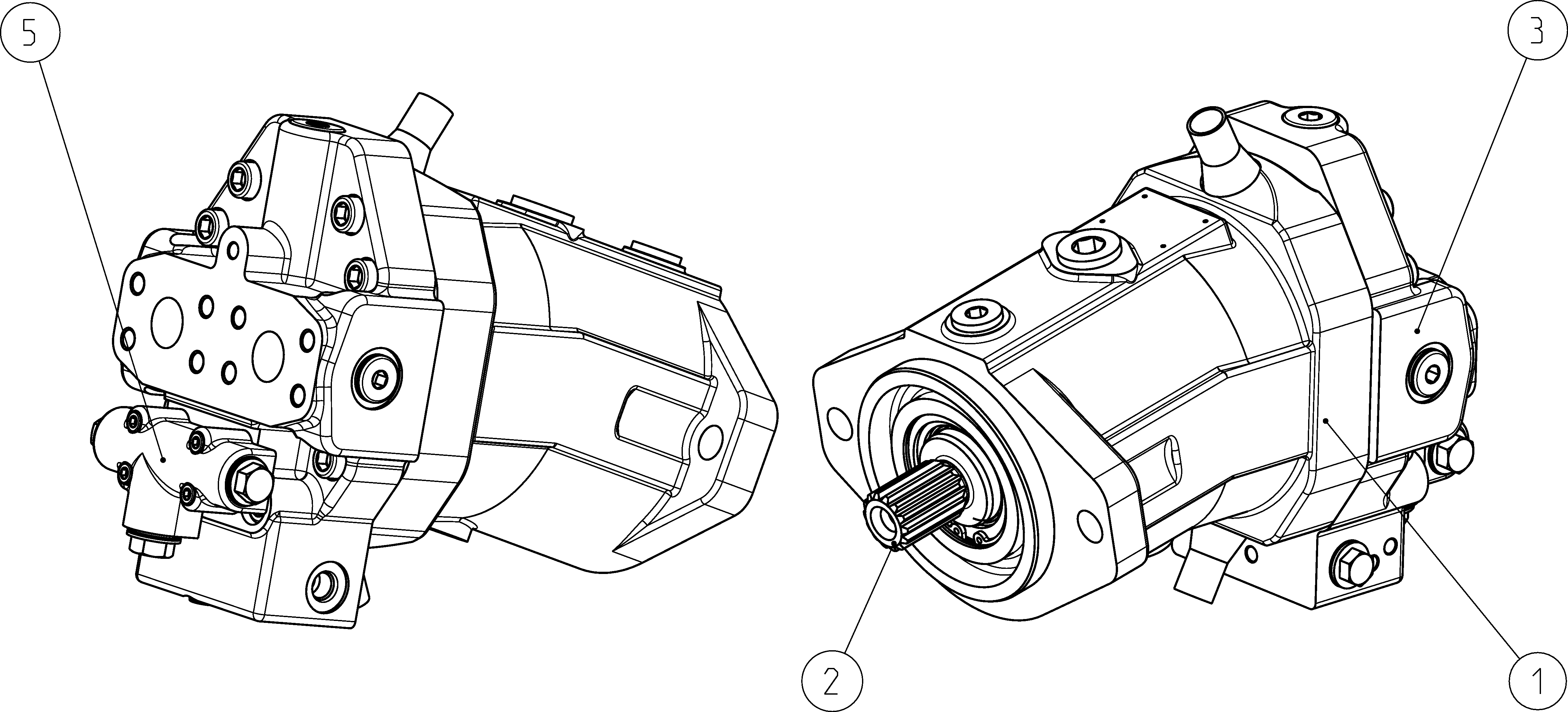

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902212594 | HOUSING Assembly parts list →L | 1 | ||
| R909604150 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902241257 | COVER PLATE Assembly parts list →L | 1 | ||
| R902212597 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 80 | 80 |
| Control device | Two-point control, hydraulic | HZ |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
