Unit · AXIAL-PISTON PUMP
A4VG085EV2DP0T0/40ARNC6T11BC4S7AD00-0R902211807
Axial piston pump Bosch Rexroth series A4VG, type code A4VG085EV2DP0T0/40ARNC6T11BC4S7AD00-0, material number R902211807. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: stroking chamber pressure port X X (T). DA control valve (only for NG110 and 125): without DA control valve (0). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) (N). Mounting flange: SAE J744 127-2/ (C6). Drive shaft: splined shaft ANSI B92.1a–1976 1 3/4 in 13T 8/16DP (T1). Working port: SAE working port A and B, on left side (45° left) (1). Boost pump and rotary group configuration: standard rotary group boost pump integrated, large internal gear pump (B). Through drive: 127-4 (C) C4 1 1/4 in 14T 12/24DP S7 (C4S7).
- Number
- R902211807
- Type code
- A4VG085EV2DP0T0/40ARNC6T11BC4S7AD00-0
- Group
- A4VG 85
- Edition
- 01/2020

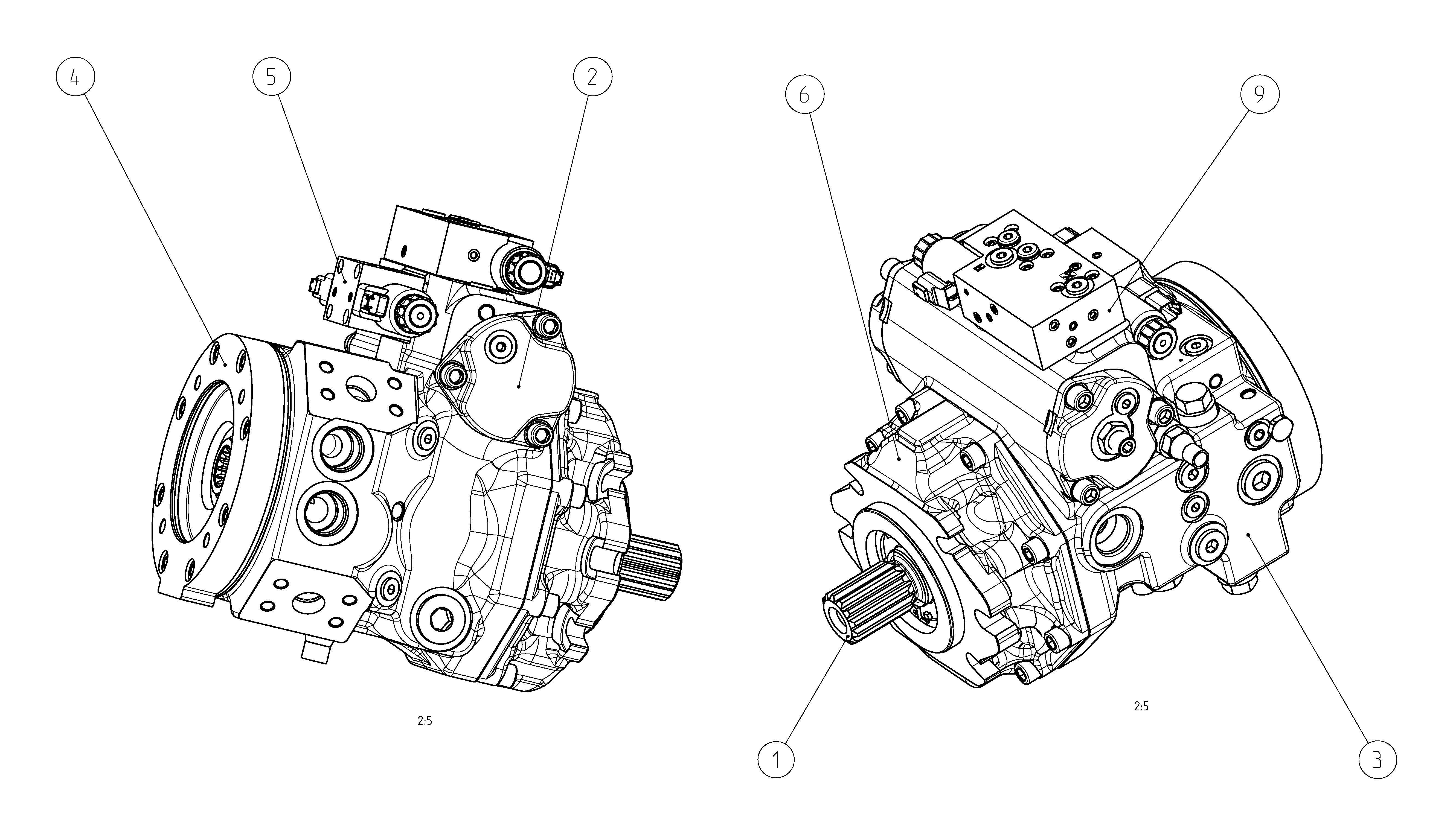

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902213019 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902210462 | CONTROL Assembly parts list →L | 1 | ||
| R902210459 | PUMP HOUSING Assembly parts list →L | 1 | ||
| R902210465 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902139459 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902201486 | BEARING FLANGE Assembly parts list →L | 1 | ||
| R902206199 | PRESSURE REDUCING VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 85 | 085 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Stroking chamber pressure port X X | T |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) | N |
| Mounting flange | SAE J744 127-2/ | C6 |
| Drive shaft | Splined shaft ANSI B92.1a–1976 1 3/4 in 13T 8/16DP | T1 |
| Working port | SAE working port A and B, on left side (45° left) | 1 |
| Boost pump and rotary group configuration | Standard rotary group boost pump integrated, large internal gear pump | B |
| Through drive | 127-4 (C) C4 1 1/4 in 14T 12/24DP S7 | C4S7 |
| High-pressure relief valve | High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting | A |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump pressure line Ports for external boost circuit filtration (Fe and Fa) | D |
| Pressure sensor | Without pressure sensor | 0 |
| Other sensors | Without sensor | 0 |
| Standard / special version | Standard version | 0 |
