Unit · AXIAL-PISTON MOTOR
AA6VM80HD1D/63W-VSC52700BR902214538
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM80HD1D/63W-VSC52700B, material number R902214538. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 145 psi (10 bar) (HD1). Pressure control (only for HD and EP): pressure control Fixed setting (D). Direction of rotation: viewed on drive shaft bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft ANSI B92.1a (S). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (527). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R902214538
- Type code
- AA6VM80HD1D/63W-VSC52700B
- Group
- A6VM 80
- Edition
- 06/2020

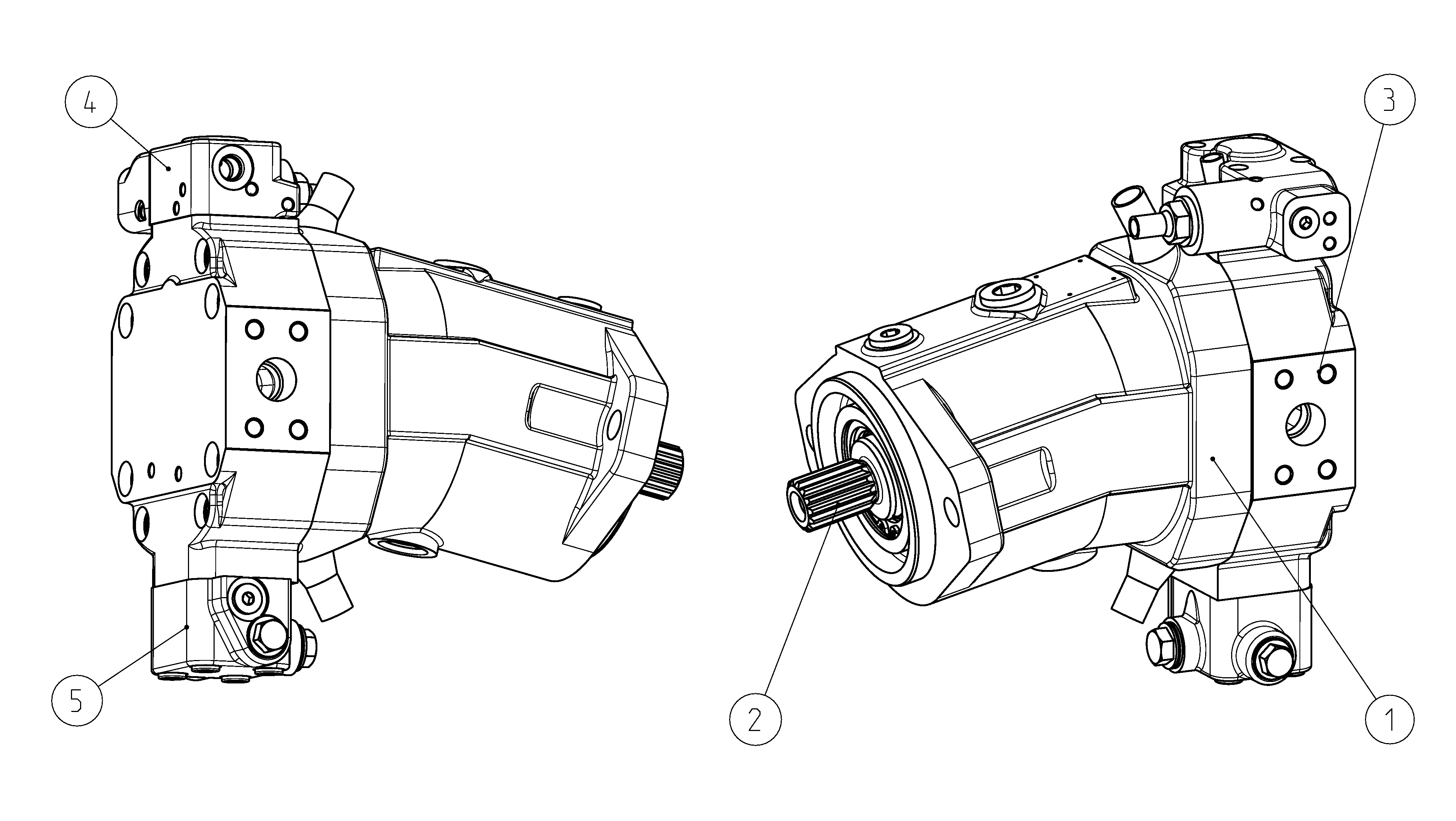

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902206523 | HOUSING Assembly parts list →L | 1 | ||
| R909604150 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902241193 | COVER PLATE Assembly parts list →L | 1 | ||
| R909604626 | CONTROL PART Assembly parts list →L | 1 | ||
| R902214774 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Proportional control, hydraulic ΔpSt = 145 psi (10 bar) | HD1 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft ANSI B92.1a | S |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 527 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
