Unit · AXIAL-PISTON MOTOR
A6VM80HD1D/63W-XZB01000B-SR902214551
Axial piston motor Bosch Rexroth series A6VM, type code A6VM80HD1D/63W-XZB01000B-S, material number R902214551. Nominal size: NG 80. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 10 bar (HD1). Pressure control (only for HD and EP): pressure control Fixed setting (D). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports Without valve 0 A and B at rear 01 (010). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S).
- Number
- R902214551
- Type code
- A6VM80HD1D/63W-XZB01000B-S
- Group
- A6VM 80
- Edition
- 06/2020

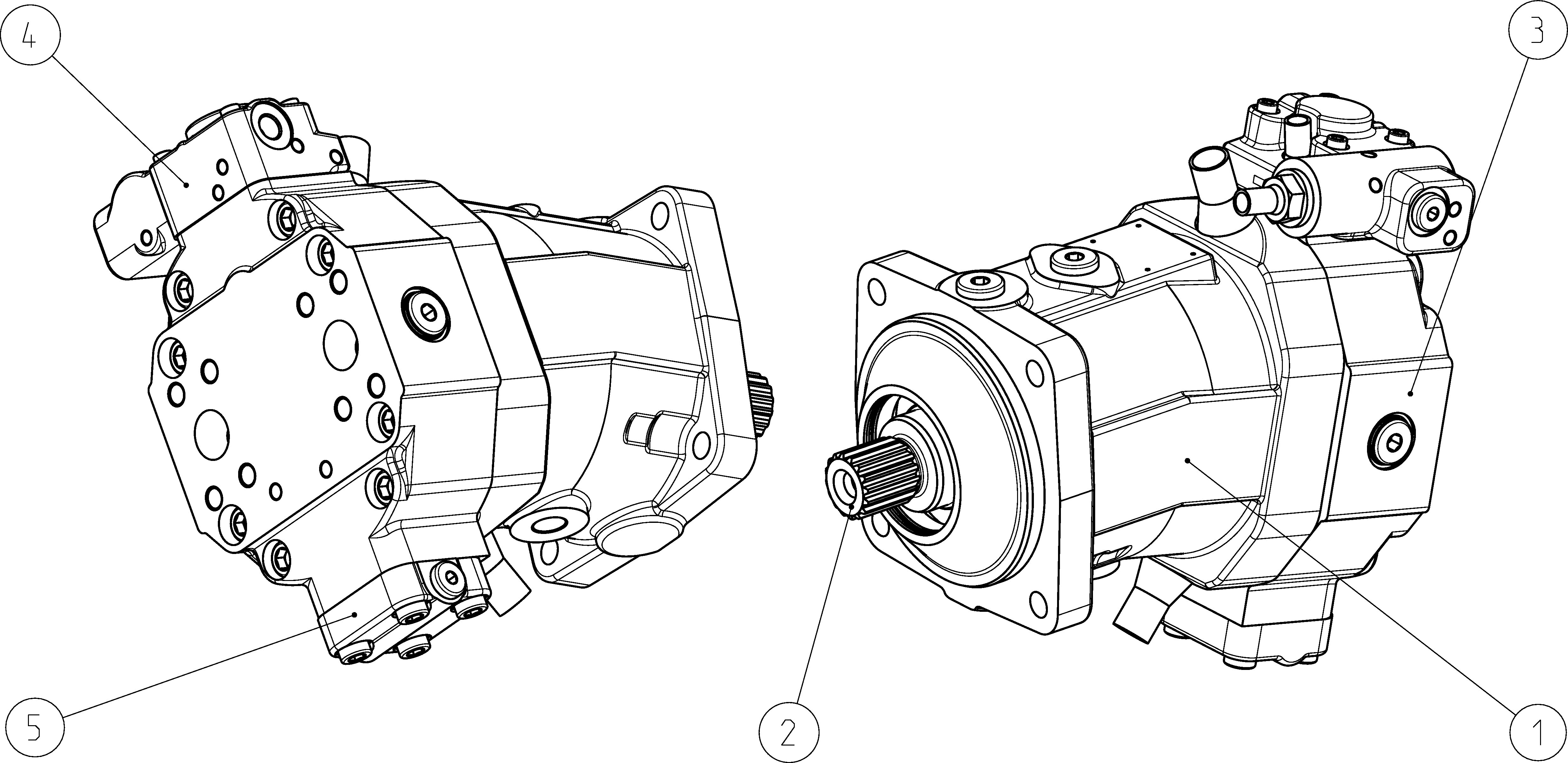

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902214809 | HOUSING Assembly parts list →L | 1 | ||
| R909603778 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902163645 | COVER PLATE Assembly parts list →L | 1 | ||
| R909604560 | CONTROL PART Assembly parts list →L | 1 | ||
| R902156401 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 80 | 80 |
| Control device | Proportional control, hydraulic ΔpSt = 10 bar | HD1 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | SAE working ports Without valve 0 A and B at rear 01 | 010 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
