Unit · AXIAL-PISTON MOTOR

AA6VM80HD2/63W-VSC52000BR902214637

Axial piston motor Bosch Rexroth series A6VM, type code AA6VM80HD2/63W-VSC52000B, material number R902214637. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 365 psi (25 bar) (HD2). Direction of rotation: viewed on drive shaft bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft ANSI B92.1a (S). Working port: SAE working ports Without valve 0 A and B at side, opposite 52 (520). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).

Number: R902214637
Type code: AA6VM80HD2/63W-VSC52000B
Group: A6VM 80
Edition: 06/2020

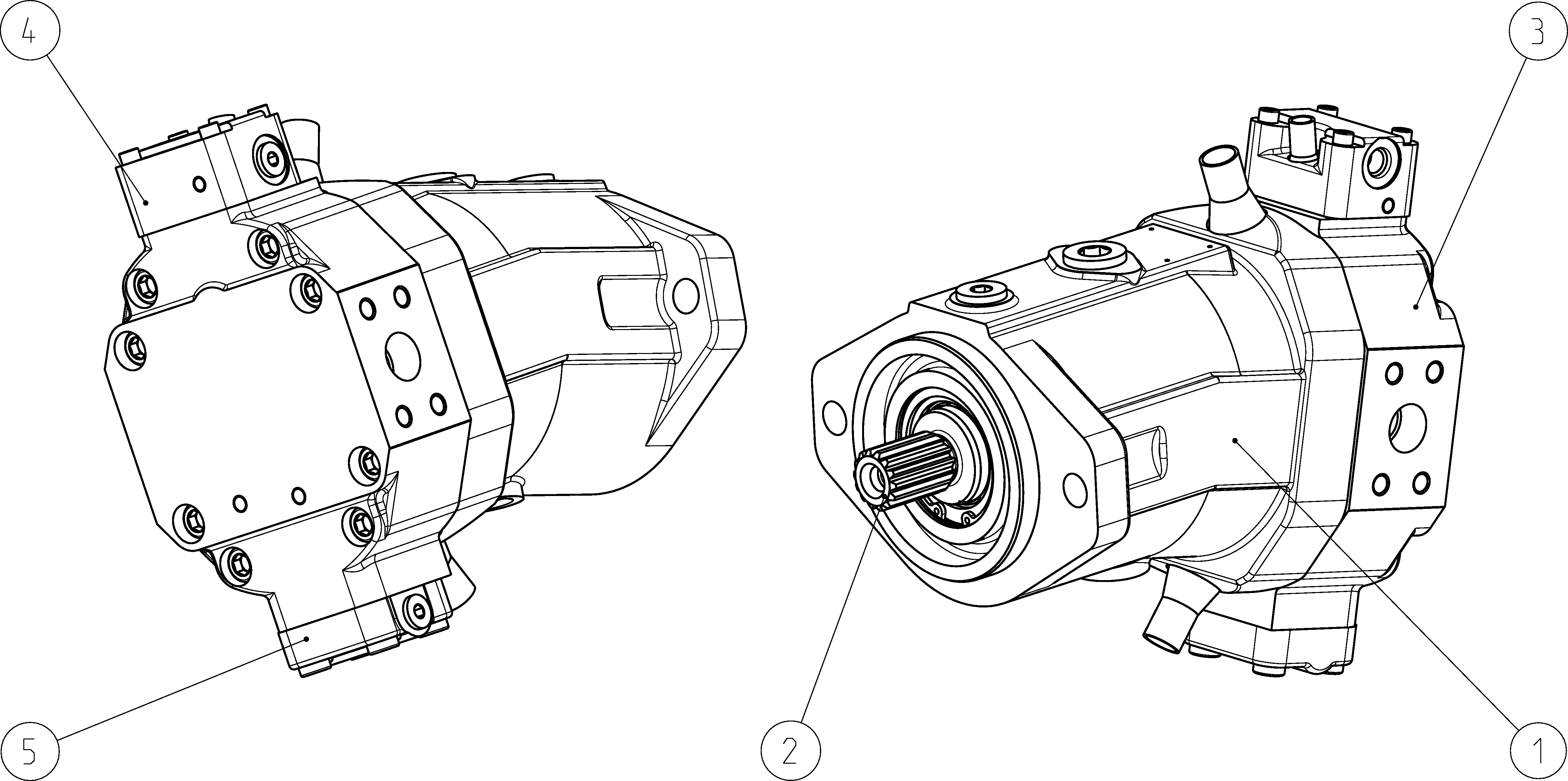

Number	Name	Qty
R902212810	HOUSING Assembly parts list →L	1
R909604150	ROTARY GROUP Assembly parts list →L	1
R902186493	COVER PLATE Assembly parts list →L	1
R902163647	CONTROL PART Assembly parts list →L	1
R902132421	COVER Assembly parts list →L	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Bent-axis design, variable	AA6V
Operating mode	Motor	M
Control device	Proportional control, hydraulic ΔpSt = 365 psi (25 bar)	HD2
Series	Series 6, index 3	63
Direction of rotation	Viewed on drive shaft bidirectional	W
Sealing material	FKM (fluoroelastomer)	V
Drive shaft	Splined shaft ANSI B92.1a	S
Working port	SAE working ports Without valve 0 A and B at side, opposite 52	520
Beginning of control	At Vg max (standard for HD, HZ, EP, EZ, DA)	B

Parameters from the type code

Other versions 10
