Unit · AXIAL-PISTON PUMP
A4VG175EP0DP0X0/40NRNE4A31FE4A1BS00-SR902215040
Axial piston pump Bosch Rexroth series A4VG, type code A4VG175EP0DP0X0/40NRNE4A31FE4A1BS00-S, material number R902215040. Nominal size: NG 175. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). DA control valve (only for NG110 and 125): without DA control valve (0). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) (N). Mounting flange: SAE J744 165-4 (E4). Drive shaft: splined shaft DIN 5480 W55×2×26×9g (A3). Working port: SAE working port A and B, on left side (45° left) (1). Boost pump and rotary group configuration: standard rotary group boost pump integrated, standard internal gear pump (F). Filtration boost circuit/external boost pressure supply: filtration in the boost pump suction line (S). Pressure sensor: without pressure sensor (0).
- Number
- R902215040
- Type code
- A4VG175EP0DP0X0/40NRNE4A31FE4A1BS00-S
- Group
- A4VG 175
- Edition
- 01/2020

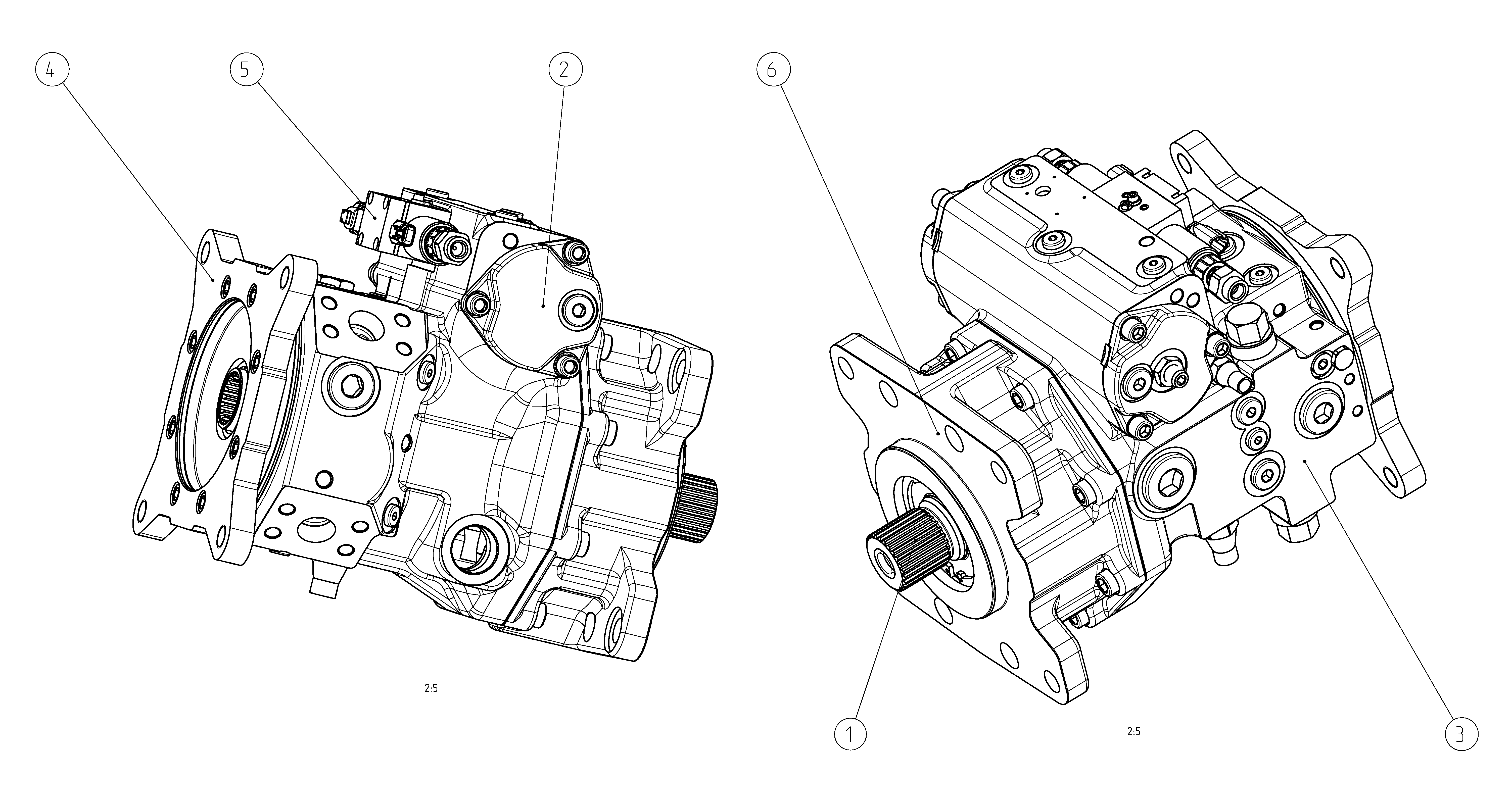

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902213192 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902201252 | CONTROL Assembly parts list →L | 1 | ||
| R902188461 | PUMP HOUSING Assembly parts list →L | 1 | ||
| R902213184 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902197112 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902114477 | BEARING FLANGE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 175 | 175 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) | N |
| Mounting flange | SAE J744 165-4 | E4 |
| Drive shaft | Splined shaft DIN 5480 W55×2×26×9g | A3 |
| Working port | SAE working port A and B, on left side (45° left) | 1 |
| Boost pump and rotary group configuration | Standard rotary group boost pump integrated, standard internal gear pump | F |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump suction line | S |
| Pressure sensor | Without pressure sensor | 0 |
| Other sensors | Without sensor | 0 |
| Standard / special version | Special version | S |
