Unit · AXIAL-PISTON MOTOR
A6VM060EP200P000C/71XWV0M4Z81FF-SR902215061
Axial piston motor Bosch Rexroth series A6VM, type code A6VM060EP200P000C/71XWV0M4Z81FF-S, material number R902215061. Nominal size: NG 60. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: proportional control, positive control electric U = 24 V (EP2). Pressure control/override: without pressure control/override (00). Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Stroking time damping: without damping (standard with HP and EP) (0). Setting range for displacement: without setting screw long (C). Direction of rotation: viewed on drive shaft, bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 125-4 (M4). Drive shaft: splined shaft DIN 5480 W35×2×16×9g (Z8).
- Number
- R902215061
- Type code
- A6VM060EP200P000C/71XWV0M4Z81FF-S
- Group
- A6VM 60
- Edition
- 06/2020

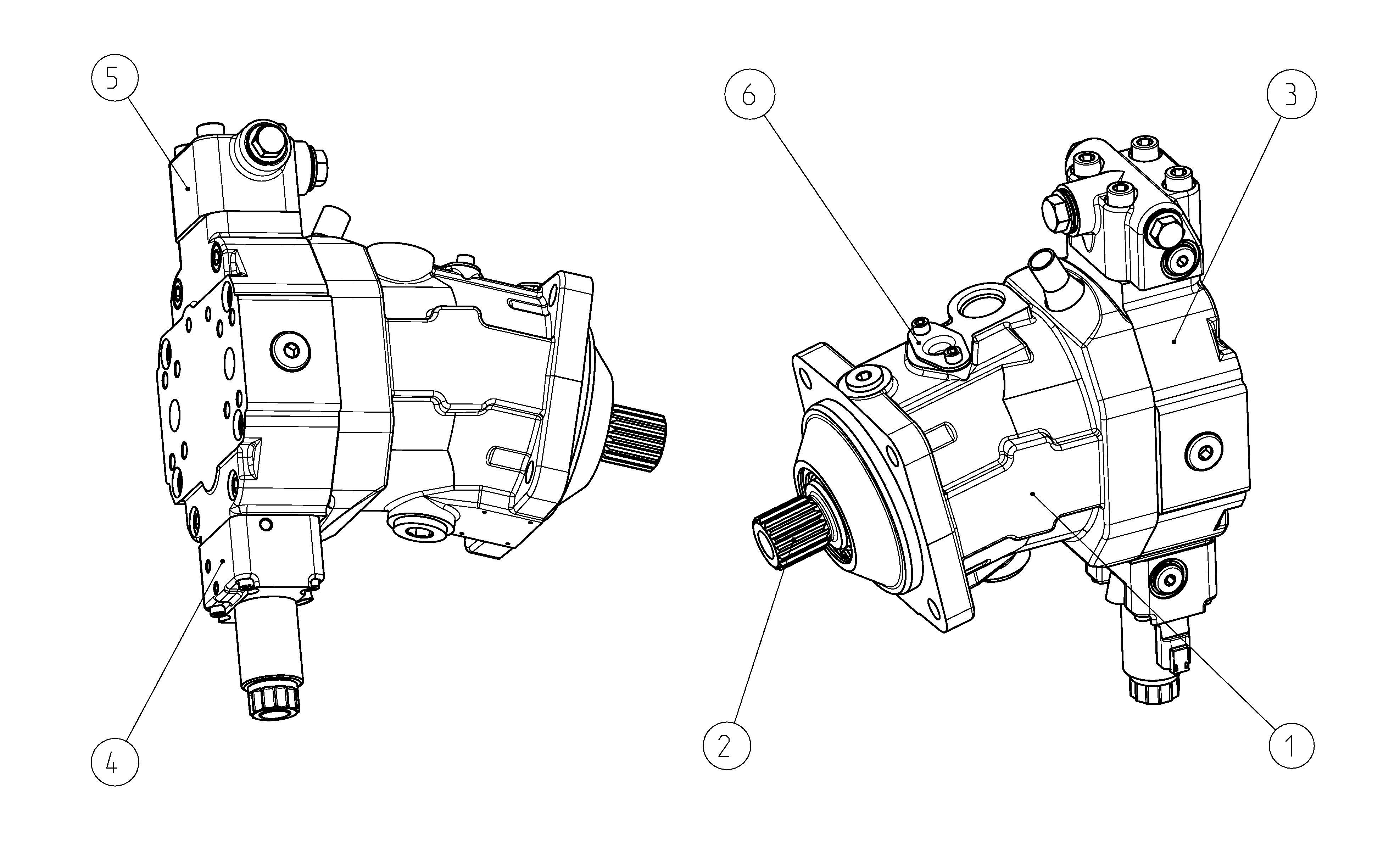

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902221884 | HOUSING Assembly parts list →L | 1 | ||
| R902191722 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902151852 | COVER PLATE Assembly parts list →L | 1 | ||
| R902151851 | CONTROL PART Assembly parts list →L | 1 | ||
| R902191718 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902151719 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 60 | 060 |
| Control device | Proportional control, positive control electric U = 24 V | EP2 |
| Pressure control/override | Without pressure control/override | 00 |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin, without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Without damping (standard with HP and EP) | 0 |
| Setting range for displacement | Without setting screw long | C |
| Series | Series 7, index 1 (nominal pressure 450 bar) | 71 |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 125-4 | M4 |
| Drive shaft | Splined shaft DIN 5480 W35×2×16×9g | Z8 |
| Working port | SAE working port A and B at rear | 1 |
| Valve | 14 | F |
| Standard/special version | Special version | S |
