Unit · AXIAL-PISTON MOTOR
A6VM200HZ1/63W-VAB017D0BR902215380
Axial piston motor Bosch Rexroth series A6VM, type code A6VM200HZ1/63W-VAB017D0B, material number R902215380. Nominal size: NG 200. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: two-point control, hydraulic (HZ). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7 (017). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R902215380
- Type code
- A6VM200HZ1/63W-VAB017D0B
- Group
- A6VM 200
- Edition
- 06/2020

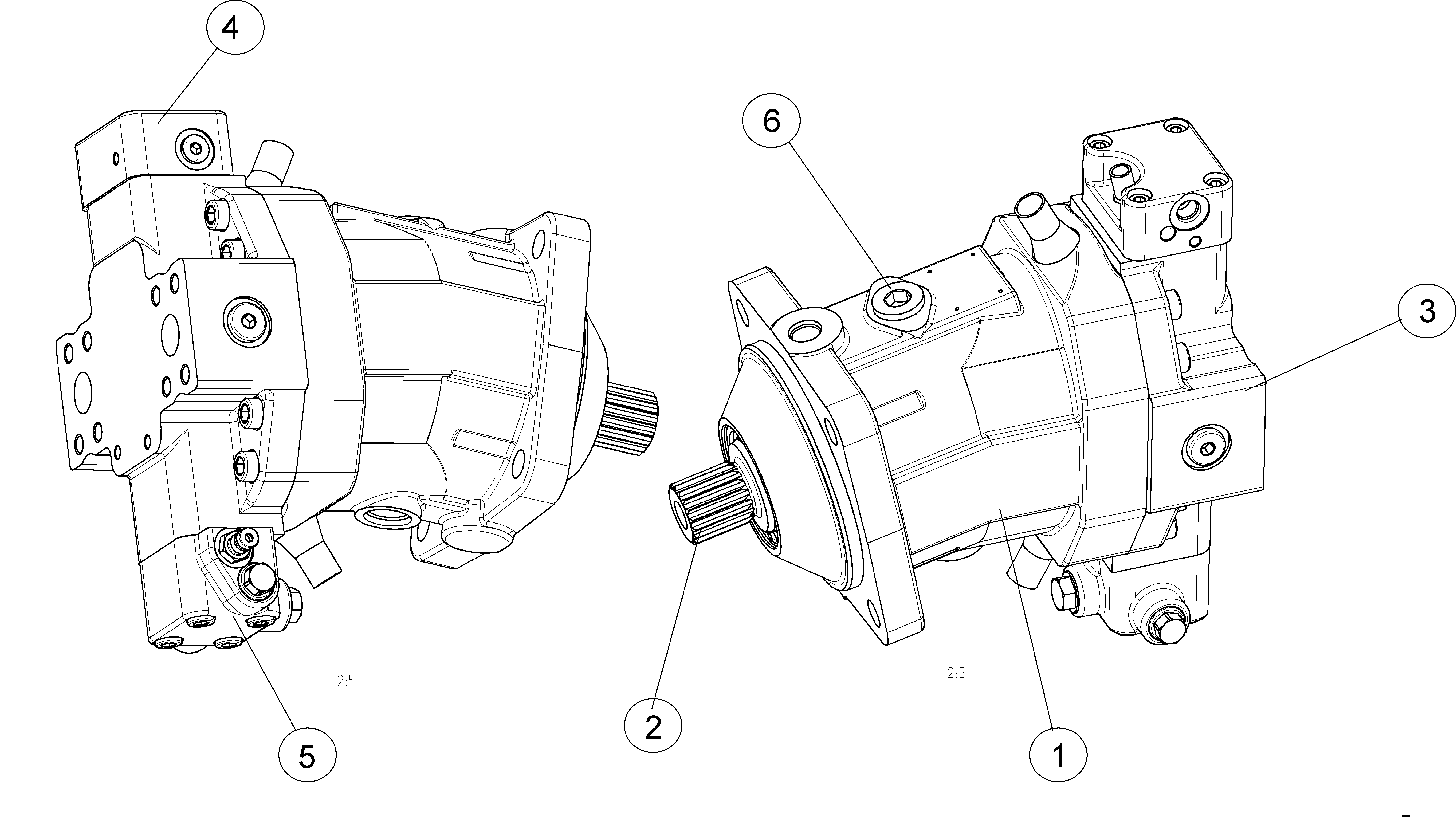

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902191677 | HOUSING Assembly parts list →L | 1 | ||
| R909604703 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902139864 | COVER PLATE Assembly parts list →L | 1 | ||
| R902000174 | CONTROL PART Assembly parts list →L | 1 | ||
| R902206798 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902207511 | THREADED REDUCING STUD Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 200 | 200 |
| Control device | Two-point control, hydraulic | HZ |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | SAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7 | 017 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
