Unit · AXIAL-PISTON MOTOR
A6VE160HZ3/63W-VZL22100BR902216811
Axial piston motor Bosch Rexroth series A6VM, type code A6VE160HZ3/63W-VZL22100B, material number R902216811. Nominal size: NG 160. Axial piston unit: bent-axis design, variable (A6V). Control device: two-point control, hydraulic (HZ). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R902216811
- Type code
- A6VE160HZ3/63W-VZL22100B
- Group
- A6VE 160
- Edition
- 06/2020

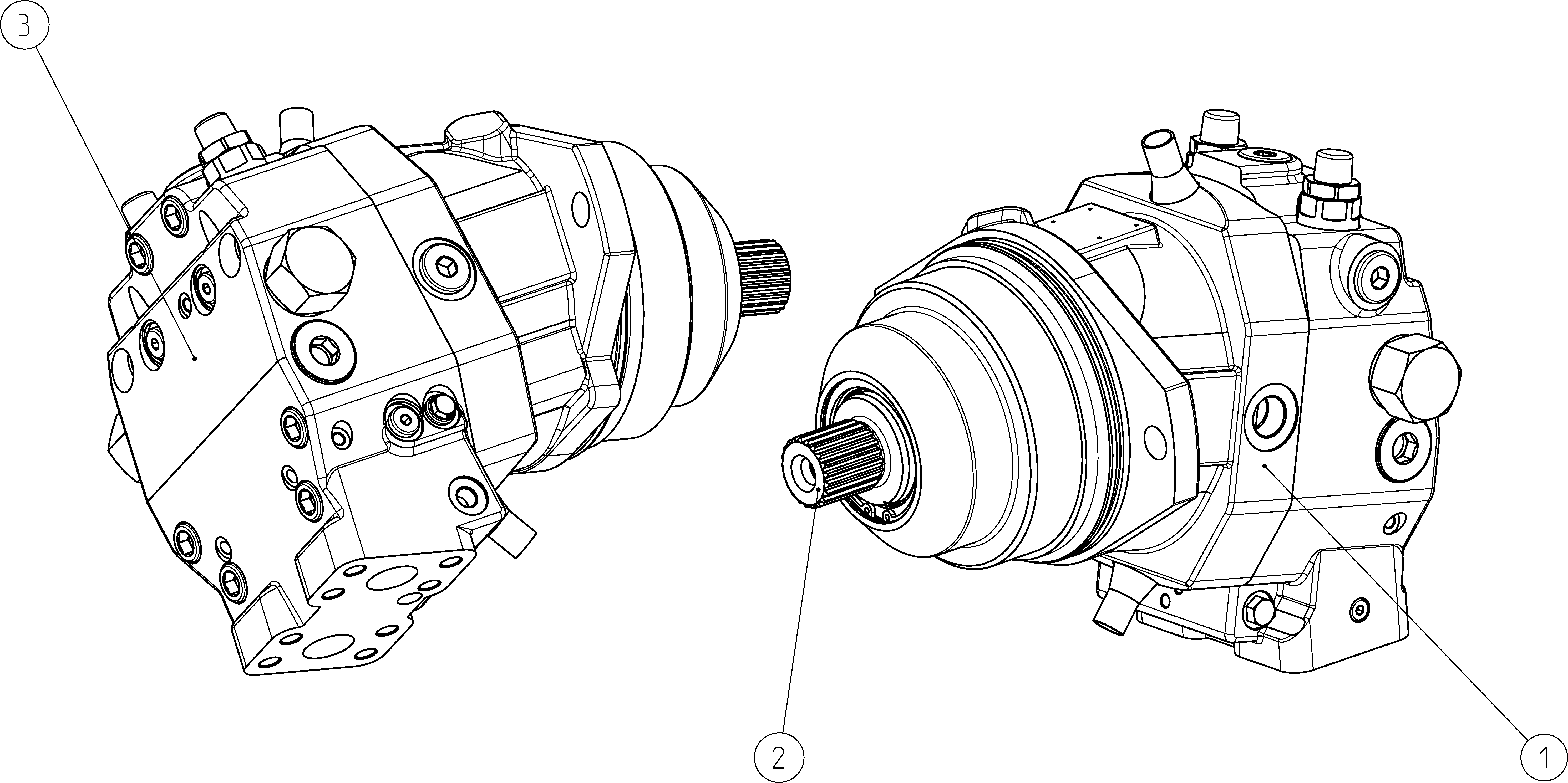

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902206504 | HOUSING Assembly parts list →L | 1 | ||
| R902277866 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902277912 | COVER PLATE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 160 | 160 |
| Control device | Two-point control, hydraulic | HZ |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
Other versions 9
- R902155135 A6VE160HZ3/63W-VZL22100B
- R902216827 A6VE160HZ3/63W-VZL22100B
- R902216828 A6VE160HZ3/63W-VZL22100B
- R902216831 A6VE160HZ3/63W-VZL22100B
- R902216833 A6VE160HZ3/63W-VZL22100B
- R902216850 A6VE160HZ3/63W-VZL22100B
- R902216853 A6VE160HZ3/63W-VZL22100B
- R902217890 A6VE160HZ3/63W-VZL22100B
- R902226483 A6VE160HZ3/63W-VZL22100B
