Unit · PUMP COMBINATION
A4VG175EP1DPXN0/40+A4VG175EP1DPXN0/40R902217516
Pump combination Bosch Rexroth series A4VG, type code A4VG175EP1DPXN0/40+A4VG175EP1DPXN0/40, material number R902217516. Nominal size: NG 175. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, U = 12 V electric (EP1). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Additional function: neutral valve U = 12 V (N). DA control valve (only for NG110 and 125): without DA control valve (0).
- Number
- R902217516
- Type code
- A4VG175EP1DPXN0/40+A4VG175EP1DPXN0/40
- Group
- A4VG 175
- Edition
- 01/2020

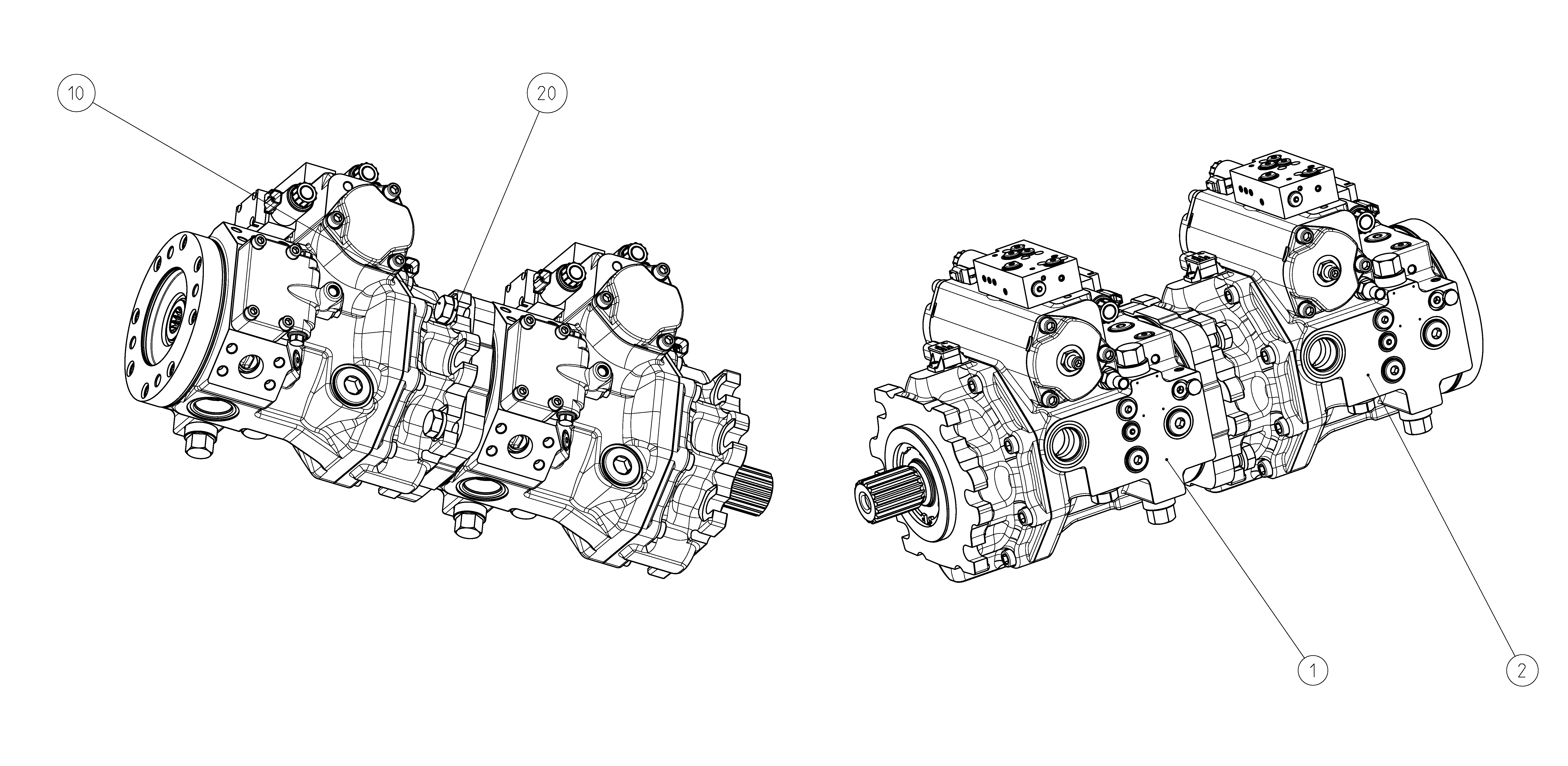

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902217514 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902217515 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083672 | HEXAGON SCREW | 4 | ||
| R909436988 | WASHER | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 175 | 175 |
| Control device | Proportional control, U = 12 V electric | EP1 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Additional function | Neutral valve U = 12 V | N |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
