Unit · PUMP COMBINATION
A4VG110SH1D/40L+A4VG110SH1D/40LR902217550
Pump combination Bosch Rexroth series A4VG, type code A4VG110SH1D/40L+A4VG110SH1D/40L, material number R902217550. Nominal size: NG 110. Axial piston unit: swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off (D). Direction of rotation: viewed on drive shaft counter-clockwise (L).
- Number
- R902217550
- Type code
- A4VG110SH1D/40L+A4VG110SH1D/40L
- Group
- A4VG 110
- Edition
- 01/2020

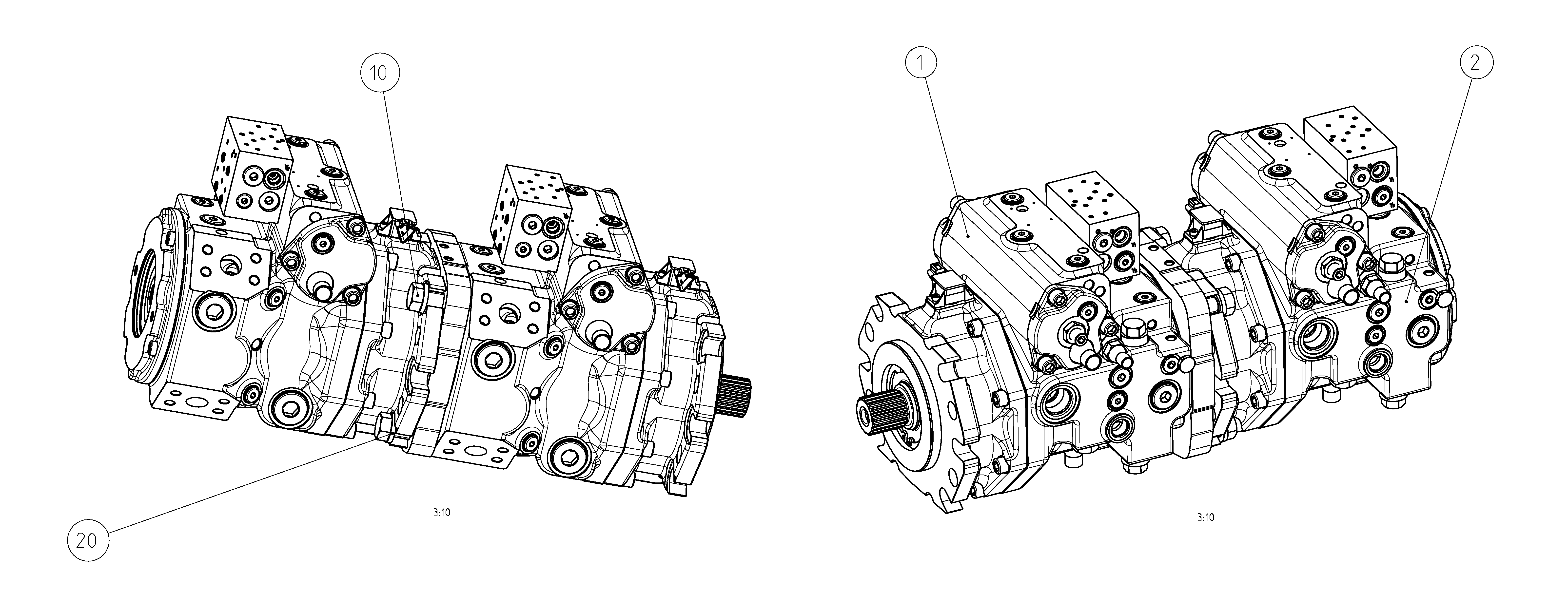

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902217548 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902217549 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909152538 | HEXAGON SCREW | 4 | ||
| R909436988 | WASHER | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 110 | 110 |
| Pressure cut-off | Pressure cut-off | D |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
