Unit · AXIAL-PISTON MOTOR
A6VE28EP2/63W-VAL017HTB-SR902218719
Axial piston motor Bosch Rexroth series A6VM, type code A6VE28EP2/63W-VAL017HTB-S, material number R902218719. Nominal size: NG 28. Axial piston unit: bent-axis design, variable (A6V). Control device: proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EP2). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7 (017). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S).
- Number
- R902218719
- Type code
- A6VE28EP2/63W-VAL017HTB-S
- Group
- A6VE 28
- Edition
- 06/2020

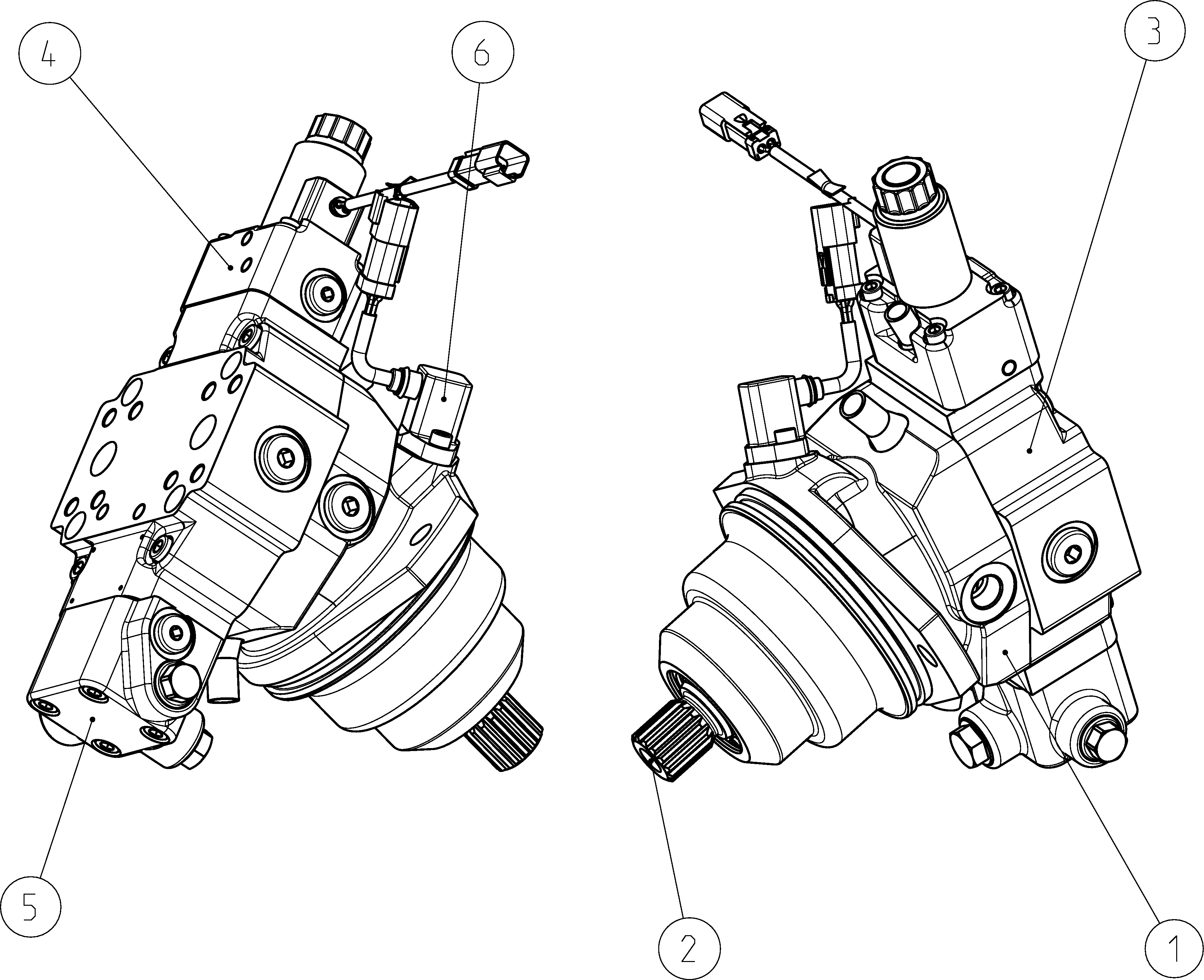

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902186127 | HOUSING Assembly parts list →L | 1 | ||
| R902024677 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902206826 | COVER PLATE Assembly parts list →L | 1 | ||
| R902163564 | CONTROL PART Assembly parts list →L | 1 | ||
| R902200055 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902085682 | ROTATIONAL SPEED SENSOR Assembly parts list →L | 1 | ||
| 98 | R902221448 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 28 | 28 |
| Control device | Proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EP2 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7 | 017 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
