Unit · AXIAL-PISTON MOTOR
A6VE55HA2U2/63W-VZL020DHAR902218744
Axial piston motor Bosch Rexroth series A6VM, type code A6VE55HA2U2/63W-VZL020DHA, material number R902218744. Nominal size: NG 55. Axial piston unit: bent-axis design, variable (A6V). Control device: automatic control, high-pressure related with pressure increase Δp = 100 bar (HA2). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Beginning of control: at Vg min (standard for HA) (A).
- Number
- R902218744
- Type code
- A6VE55HA2U2/63W-VZL020DHA
- Group
- A6VE 55
- Edition
- 06/2020

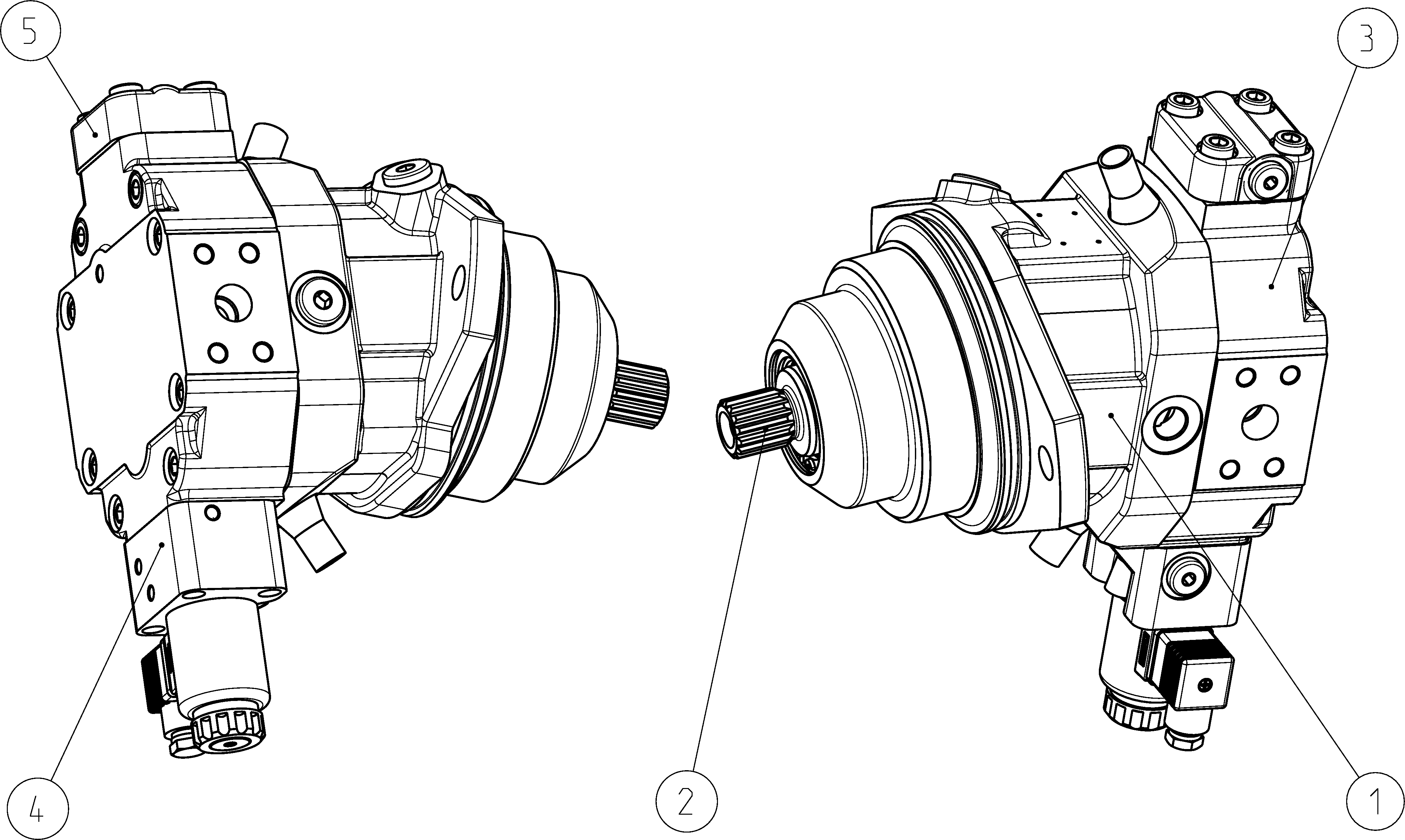

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902216130 | HOUSING Assembly parts list →L | 1 | ||
| R909604692 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902200131 | COVER PLATE Assembly parts list →L | 1 | ||
| R902006693 | CONTROL PART Assembly parts list →L | 1 | ||
| R902238497 | COVER Assembly parts list →L | 1 | ||
| 6 | R909156651 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 55 | 55 |
| Control device | Automatic control, high-pressure related with pressure increase Δp = 100 bar | HA2 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Beginning of control | At Vg min (standard for HA) | A |
