Unit · AXIAL-PISTON MOTOR
A6VE55EZ4/63W-VZL0X0FPB-SR902218963
Axial piston motor Bosch Rexroth series A6VM, type code A6VE55EZ4/63W-VZL0X0FPB-S, material number R902218963. Nominal size: NG 55. Axial piston unit: bent-axis design, variable (A6V). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S).
- Number
- R902218963
- Type code
- A6VE55EZ4/63W-VZL0X0FPB-S
- Group
- A6VE 55
- Edition
- 06/2020

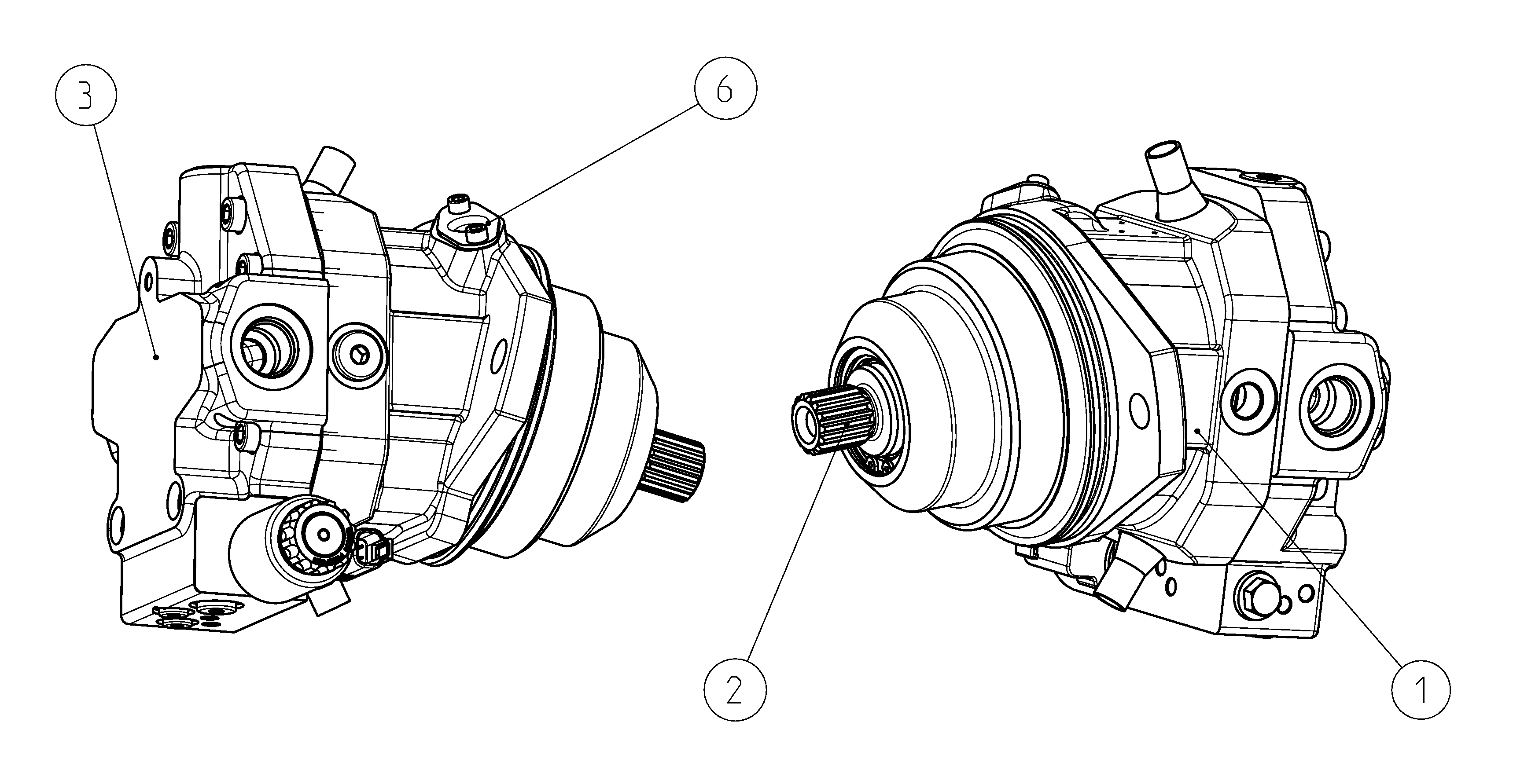

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902162310 | HOUSING Assembly parts list →L | 1 | ||
| R909604692 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902241326 | COVER PLATE Assembly parts list →L | 1 | ||
| R902151719 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 55 | 55 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
