Unit · AXIAL-PISTON MOTOR
AA6VM55HA1/63W-VSD51000A-YR902218968
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM55HA1/63W-VSD51000A-Y, material number R902218968. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 145 psi (10 bar) (HA1). Direction of rotation: viewed on drive shaft bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft ANSI B92.1a (S). Mounting flange: SAE J744 - 4-bolt 165-4 (D). Working port: SAE working ports Without valve 0 A and B at rear 51 (510). Beginning of control: at Vg min (standard for HA) (A).
- Number
- R902218968
- Type code
- AA6VM55HA1/63W-VSD51000A-Y
- Group
- A6VM 55
- Edition
- 06/2020

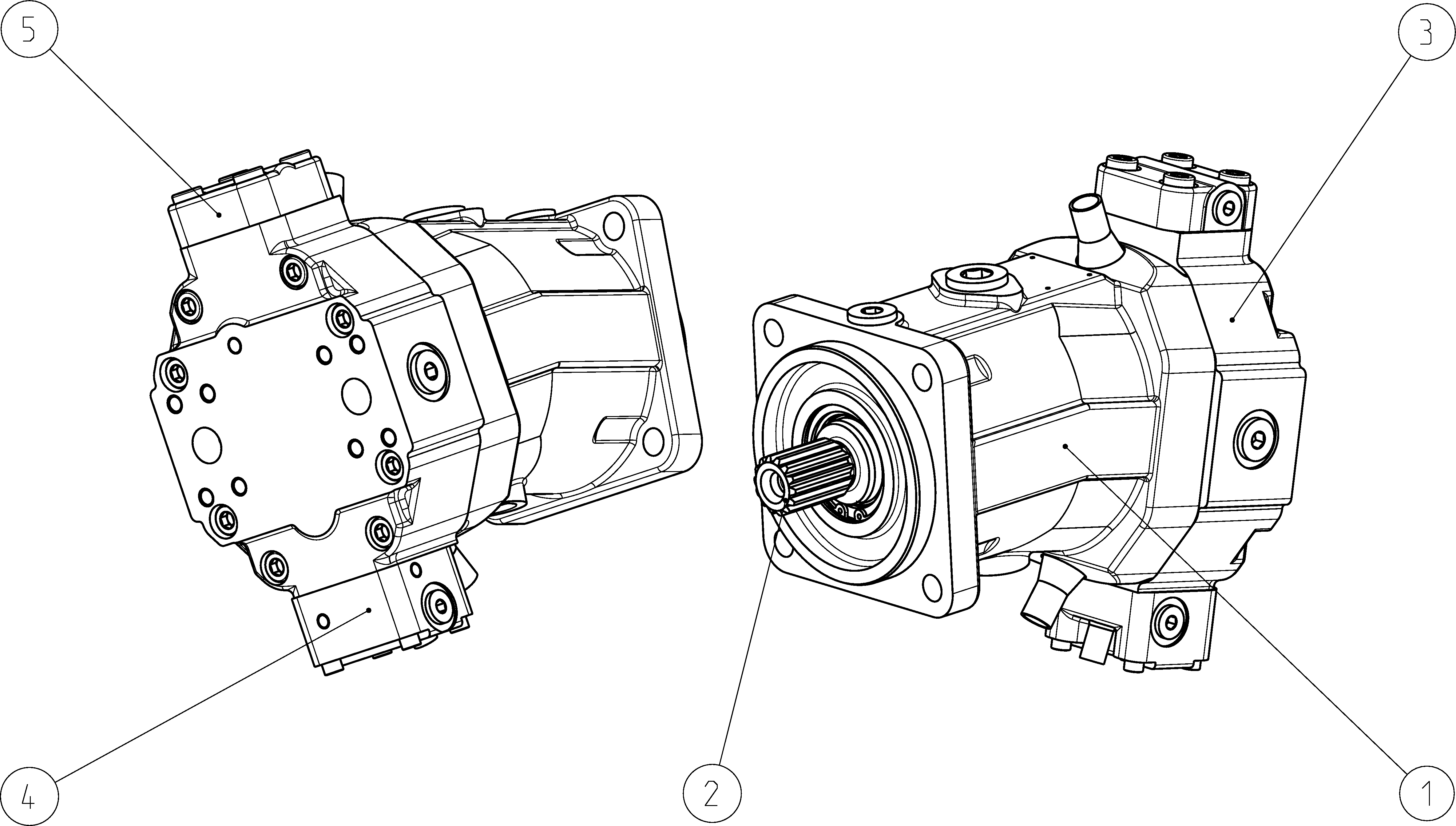

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902206550 | HOUSING Assembly parts list →L | 1 | ||
| R909604149 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902189302 | COVER PLATE Assembly parts list →L | 1 | ||
| R902221690 | CONTROL PART Assembly parts list →L | 1 | ||
| R902189307 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 145 psi (10 bar) | HA1 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft ANSI B92.1a | S |
| Mounting flange | SAE J744 - 4-bolt 165-4 | D |
| Working port | SAE working ports Without valve 0 A and B at rear 51 | 510 |
| Beginning of control | At Vg min (standard for HA) | A |
