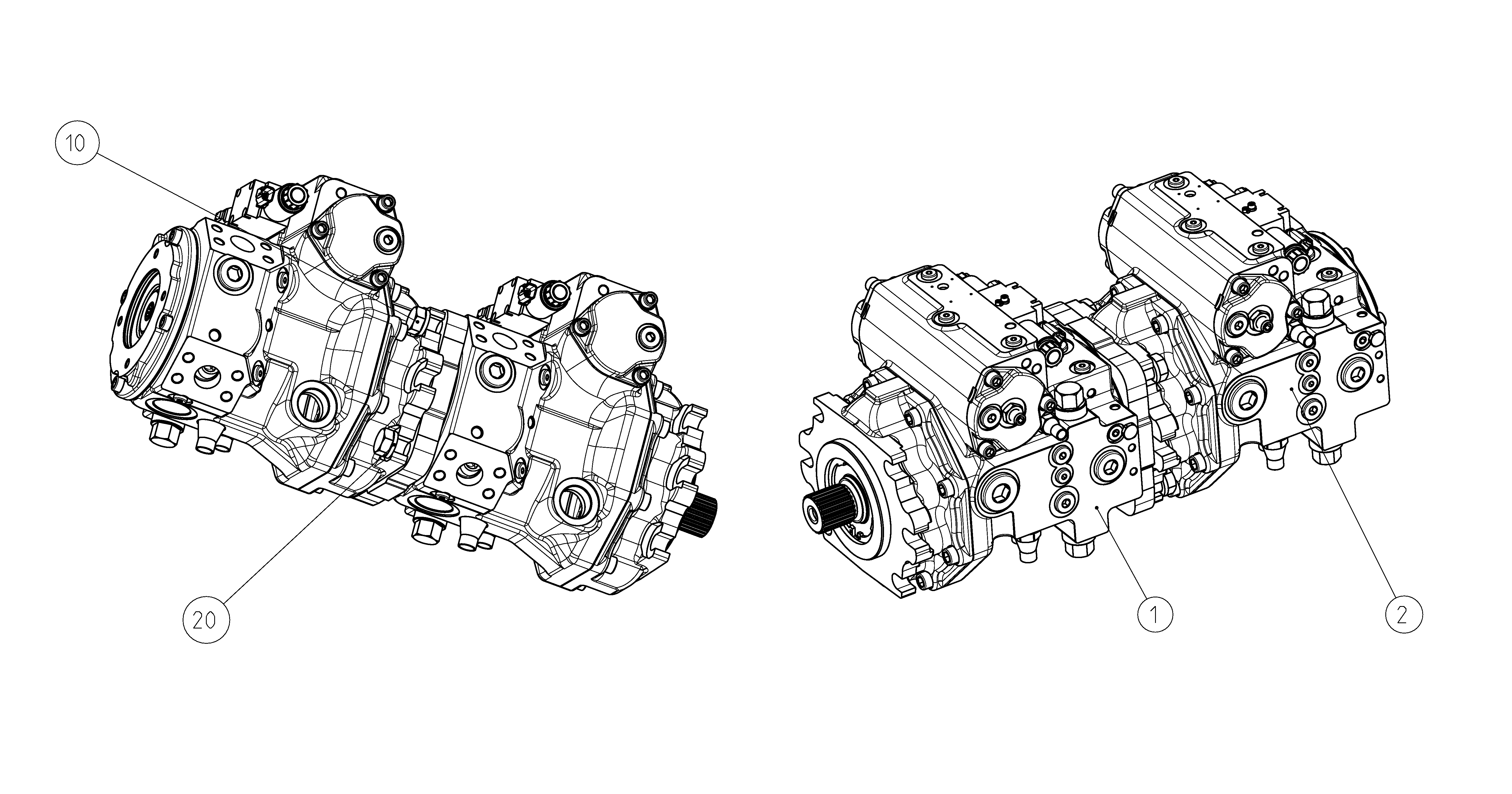

Unit · AXIAL-PISTON PUMP
A4VG145EP0/40NR+A4VG145EP0NR/40NRR902220686
Axial piston pump Bosch Rexroth series A4VG, type code A4VG145EP0/40NR+A4VG145EP0NR/40NR, material number R902220686. Nominal size: NG 145. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: without pressure cut-off without bypass (0). Swivel angle sensor: electric swivel angle sensor (DWS20-1, 3-pin) (R).
- Number
- R902220686
- Type code
- A4VG145EP0/40NR+A4VG145EP0NR/40NR
- Group
- A4VG 145
- Edition
- 01/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902225023 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902225022 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909152538 | HEXAGON SCREW | 4 | ||
| R909436988 | WASHER | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 145 | 145 |
| Pressure cut-off | Without pressure cut-off without bypass | 0 |
| Swivel angle sensor | Electric swivel angle sensor (DWS20-1, 3-pin) | R |
