Unit · AXIAL-PISTON PUMP
A4VG175EP0/40NR+A4VG175EP0/40NRR902220711
Axial piston pump Bosch Rexroth series A4VG, type code A4VG175EP0/40NR+A4VG175EP0/40NR, material number R902220711. Nominal size: NG 175. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: without pressure cut-off without bypass (0). Swivel angle sensor: electric swivel angle sensor (DWS20-1, 3-pin) (R).
- Number
- R902220711
- Type code
- A4VG175EP0/40NR+A4VG175EP0/40NR
- Group
- A4VG 175
- Edition
- 01/2020

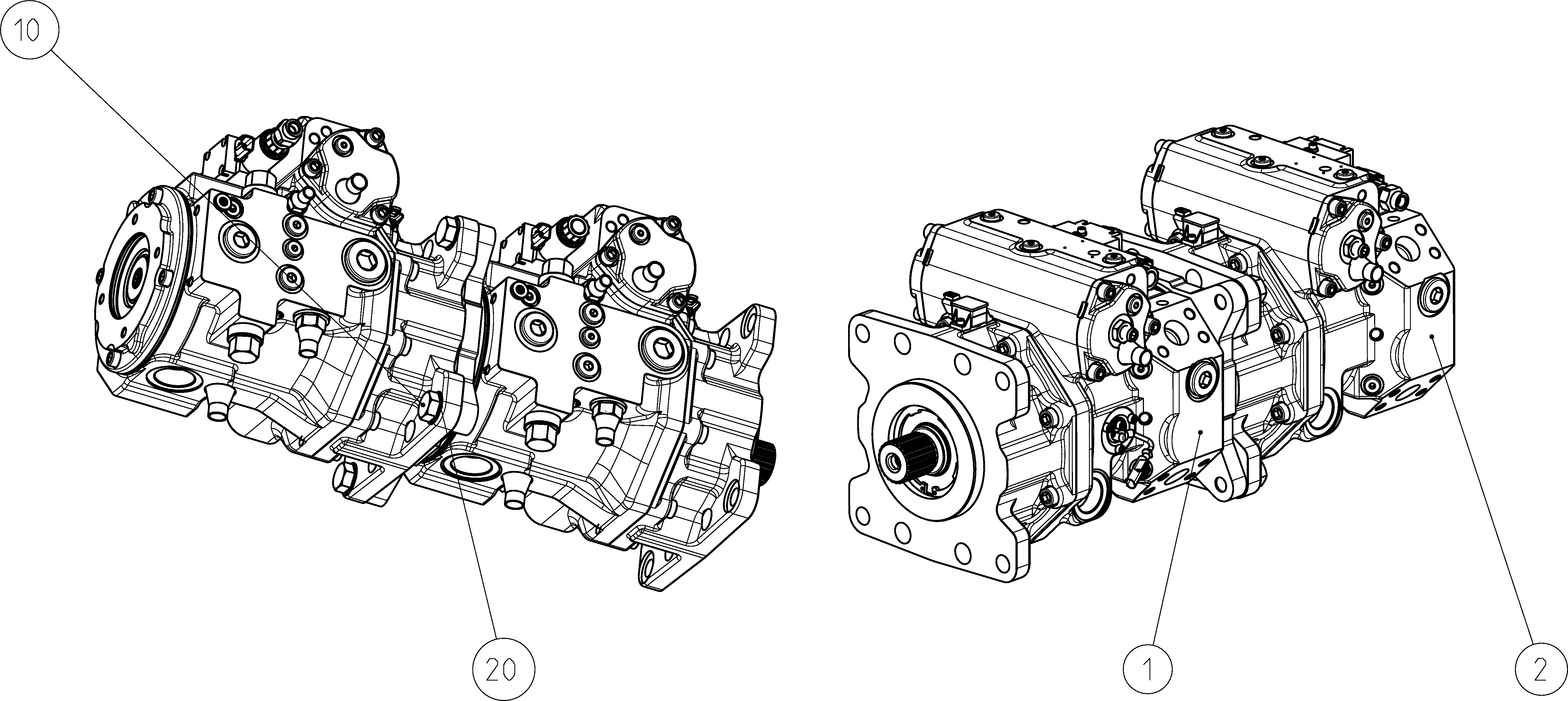

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902225031 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902225032 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909085746 | HEXAGON SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 175 | 175 |
| Pressure cut-off | Without pressure cut-off without bypass | 0 |
| Swivel angle sensor | Electric swivel angle sensor (DWS20-1, 3-pin) | R |
