Unit · AXIAL-PISTON MOTOR
A6VM170HA2T30004B/71MWV0R4A120H-0R902220895
Axial piston motor Bosch Rexroth series A6VM, type code A6VM170HA2T30004B/71MWV0R4A120H-0, material number R902220895. Nominal size: NG 170. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: automatic high-pressure related control, positive control with pressure increase Δp = 100 bar (HA2). Pressure control/override: override of the HA1 and Hydraulic, remote controlled, HA2 controls proportional (T3). Connector for solenoids: without connectors (only for purely hydraulic control) (0). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Stroking time damping: damping One-sided in inlet to large stroking chamber (HA) (4). Setting range for displacement: without setting screw moderate (B). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 (M). Direction of rotation: viewed on drive shaft, bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 180-4 (R4).
- Number
- R902220895
- Type code
- A6VM170HA2T30004B/71MWV0R4A120H-0
- Group
- A6VM 170
- Edition
- 06/2020

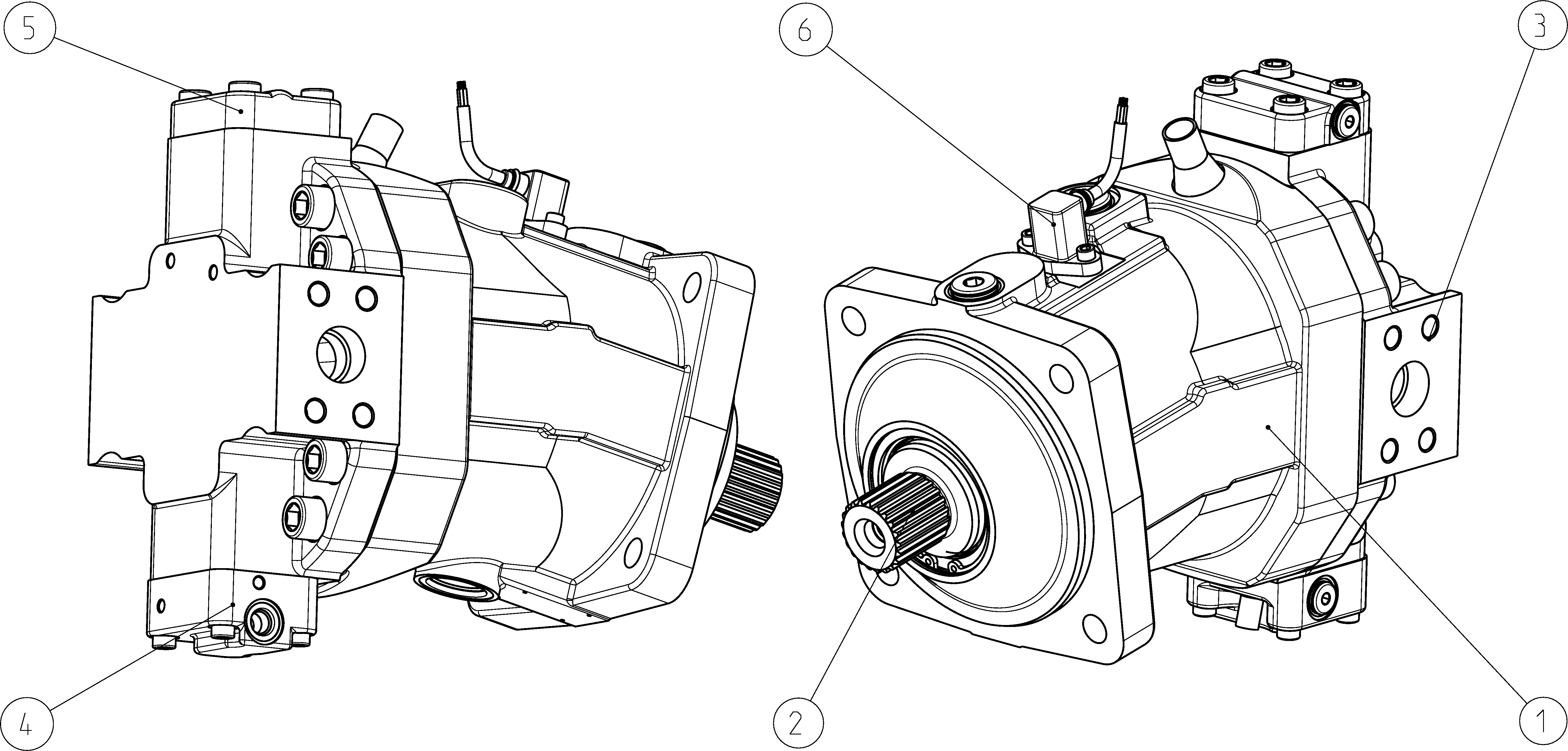

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902130692 | HOUSING Assembly parts list →L | 1 | ||
| R902277876 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902279439 | COVER PLATE Assembly parts list →L | 1 | ||
| R902163767 | CONTROL PART Assembly parts list →L | 1 | ||
| R902149242 | COVER Assembly parts list →L | 1 | ||
| R902085684 | ROTATIONAL SPEED SENSOR Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 170 | 170 |
| Control device | Automatic high-pressure related control, positive control with pressure increase Δp = 100 bar | HA2 |
| Pressure control/override | Override of the HA1 and Hydraulic, remote controlled, HA2 controls proportional | T3 |
| Connector for solenoids | Without connectors (only for purely hydraulic control) | 0 |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Damping One-sided in inlet to large stroking chamber (HA) | 4 |
| Setting range for displacement | Without setting screw moderate | B |
| Series | Series 7, index 1 (nominal pressure 450 bar) | 71 |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 | M |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 180-4 | R4 |
| Drive shaft | Splined shaft DIN 5480 W45×2×21×9g | A1 |
| Working port | SAE working ports A and B lateral, opposite | 2 |
| Valve | Without valve | 0 |
| Standard/special version | Standard version | 0 |
