Unit · AXIAL-PISTON PUMP
A4VG175HP1/40MR+A4VG175HP1/40MRR902220901
Axial piston pump Bosch Rexroth series A4VG, type code A4VG175HP1/40MR+A4VG175HP1/40MR, material number R902220901. Nominal size: NG 175. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, pilot-pressure related p = 6 to 18 bar hydraulic (HP1). Connector for solenoids: without connector (only for purely hydraulic control) (0). Additional function: neutral valve U = 12 V and ports X X for stroking chamber pressure (R).
- Number
- R902220901
- Type code
- A4VG175HP1/40MR+A4VG175HP1/40MR
- Group
- A4VG 175
- Edition
- 01/2020

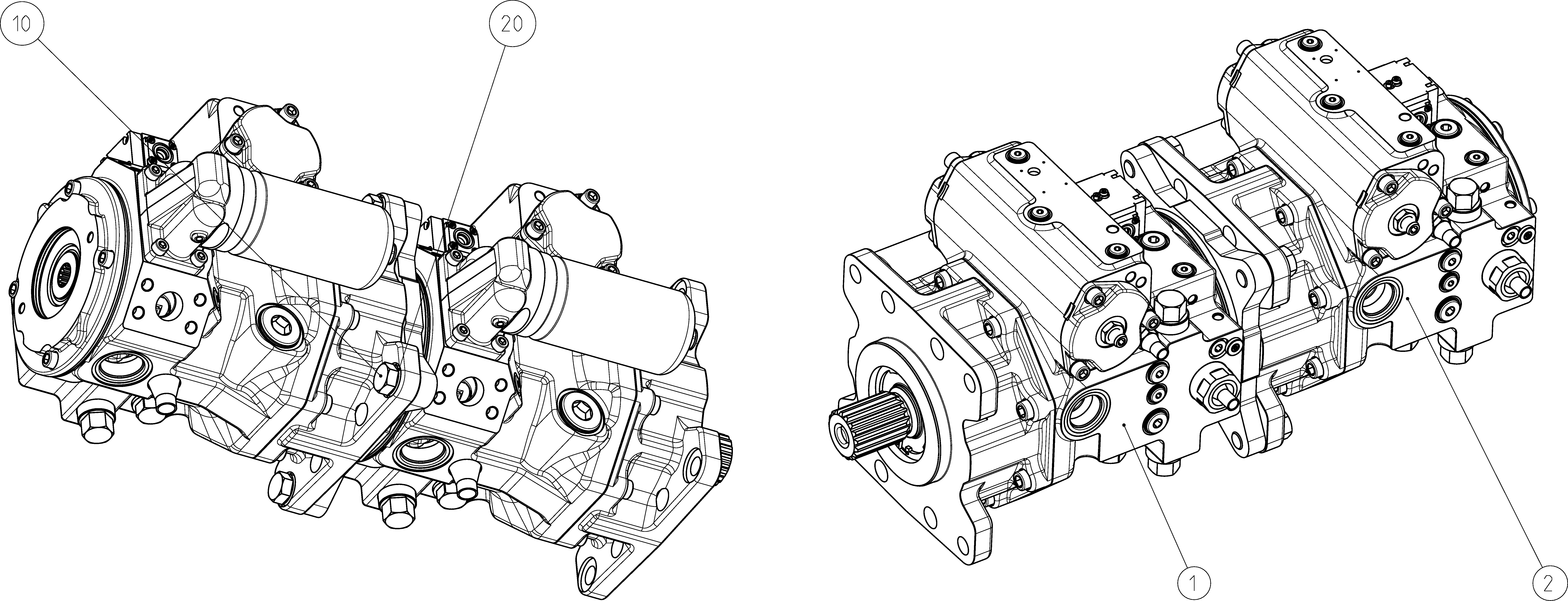

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902225075 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902225076 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909085746 | HEXAGON SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 175 | 175 |
| Control device | Proportional control, pilot-pressure related p = 6 to 18 bar hydraulic | HP1 |
| Connector for solenoids | Without connector (only for purely hydraulic control) | 0 |
| Additional function | Neutral valve U = 12 V and ports X X for stroking chamber pressure | R |
