Unit · AXIAL-PISTON MOTOR
A6VM085HA1000004C/71AWV0C2S91000R902222167
Axial piston motor Bosch Rexroth series A6VM, type code A6VM085HA1000004C/71AWV0C2S91000, material number R902222167. Nominal size: NG 85. Axial piston unit: bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi (A6V). Operating mode: motor (M). Control device: automatic control with minimum pressure Δp ≤ approx. 145 psi high-pressure related, increase (10 bar) positive control (HA1). Pressure control/override: without pressure control/override (00). Swivel angle detection: without (0). Additional function: without additional function (0). Stroking time damping: damping One-sided in inlet to large stroking chamber (HA) (4). Setting range for displacement: no setting screw long (C). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: SAE J744 127-2 (C2). Drive shaft: splined shaft ANSI B92.1a 1 1/4 in 17T 12/24 DP (S9). Working port: SAE working ports A and B at rear (1).
- Number
- R902222167
- Type code
- A6VM085HA1000004C/71AWV0C2S91000
- Group
- A6VM 85
- Edition
- 06/2020

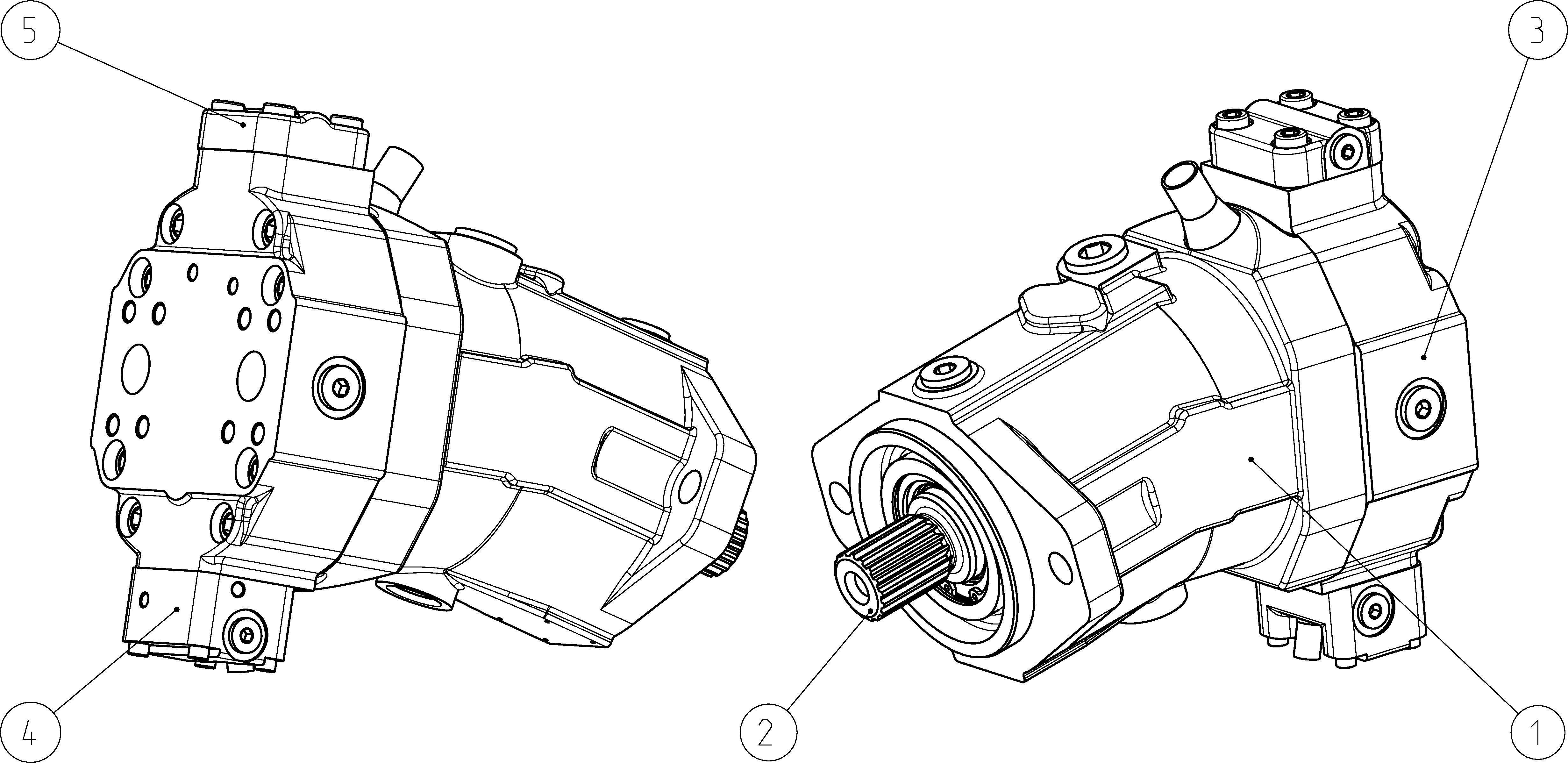

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902251200 | HOUSING Assembly parts list →L | 1 | ||
| R902132370 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902207522 | COVER PLATE Assembly parts list →L | 1 | ||
| R902221690 | CONTROL PART Assembly parts list →L | 1 | ||
| R902207523 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi | A6V |
| Operating mode | Motor | M |
| Size (NG) | 85 | 085 |
| Control device | Automatic control with minimum pressure Δp ≤ approx. 145 psi high-pressure related, increase (10 bar) positive control | HA1 |
| Pressure control/override | Without pressure control/override | 00 |
| Without damping (without solenoid, only for hydraulic control) | 0 | |
| Swivel angle detection | Without | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Damping One-sided in inlet to large stroking chamber (HA) | 4 |
| Setting range for displacement | No setting screw long | C |
| Series | Series 7, Index 1 | 71 |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | SAE J744 127-2 | C2 |
| Drive shaft | Splined shaft ANSI B92.1a 1 1/4 in 17T 12/24 DP | S9 |
| Working port | SAE working ports A and B at rear | 1 |
| Valve | Without valve | 0 |
| Speed sensor | Without speed sensor | 0 |
| Standard/special version | Standard version | 0 |
