Unit · AXIAL-PISTON PUMP
A4VG085DA2DP005/40MRNC6Z81FC4S7AB00-0R902222473
Axial piston pump Bosch Rexroth series A4VG, type code A4VG085DA2DP005/40MRNC6Z81FC4S7AB00-0, material number R902222473. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: automatic control, speed related U = 24 V (DA2). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). DA control valve (only for NG110 and 125): DA control valve, fixed setting and brake inch valve based on mineral oil mounted, control with brake fluid (5). Configuration of port and fastening threads: metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN (M). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) (N). Mounting flange: SAE J744 127-2/ (C6). Working port: SAE working port A and B, on left side (45° left) (1). Boost pump and rotary group configuration: standard rotary group boost pump integrated, standard internal gear pump (F).
- Number
- R902222473
- Type code
- A4VG085DA2DP005/40MRNC6Z81FC4S7AB00-0
- Group
- A4VG 85
- Edition
- 01/2020

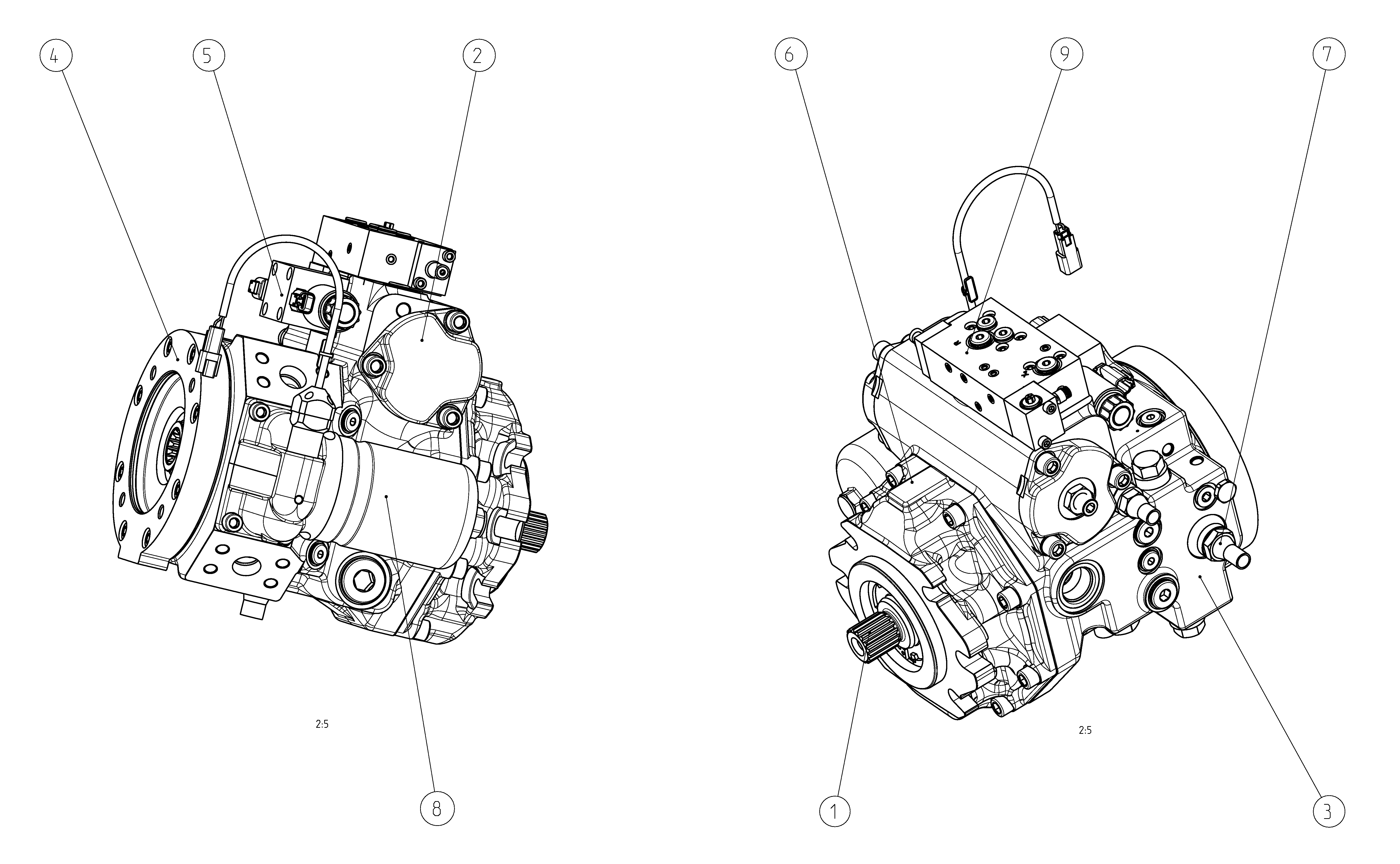

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902188175 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902114345 | CONTROL Assembly parts list →L | 1 | ||
| R902236841 | PUMP HOUSING Assembly parts list →L | 1 | ||
| R902188035 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902197465 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902201486 | BEARING FLANGE Assembly parts list →L | 1 | ||
| R902188929 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| R902133257 | MOUNTABLE FILTER Assembly parts list →L | 1 | ||
| R902156706 | CONTROL VALVE Assembly parts list →L | 1 | ||
| 98 | R902221382 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 85 | 085 |
| Control device | Automatic control, speed related U = 24 V | DA2 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| DA control valve (only for NG110 and 125) | DA control valve, fixed setting and brake inch valve based on mineral oil mounted, control with brake fluid | 5 |
| Configuration of port and fastening threads | Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN | M |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) | N |
| Mounting flange | SAE J744 127-2/ | C6 |
| Working port | SAE working port A and B, on left side (45° left) | 1 |
| Boost pump and rotary group configuration | Standard rotary group boost pump integrated, standard internal gear pump | F |
| Through drive | 127-4 (C) C4 1 1/4 in 14T 12/24DP S7 | C4S7 |
| High-pressure relief valve | High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting | A |
| Filtration boost circuit/external boost pressure supply | Attachment filter with cold start valve and electric contamination indicator – DEUTSCH con- nector | B |
| Pressure sensor | Without pressure sensor | 0 |
| Other sensors | Without sensor | 0 |
| Standard / special version | Standard version | 0 |
