Unit · AXIAL-PISTON MOTOR
AA6VM160EP1D/63W-VSD01X0PB-SR902226062
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM160EP1D/63W-VSD01X0PB-S, material number R902226062. Nominal size: NG 160. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, electric (with HIRSCHMANN U = 12 V connector – without suppressor diode) (EP1). Pressure control (only for HD and EP): pressure control Fixed setting (D). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S).
- Number
- R902226062
- Type code
- AA6VM160EP1D/63W-VSD01X0PB-S
- Group
- A6VM 160
- Edition
- 07/2020

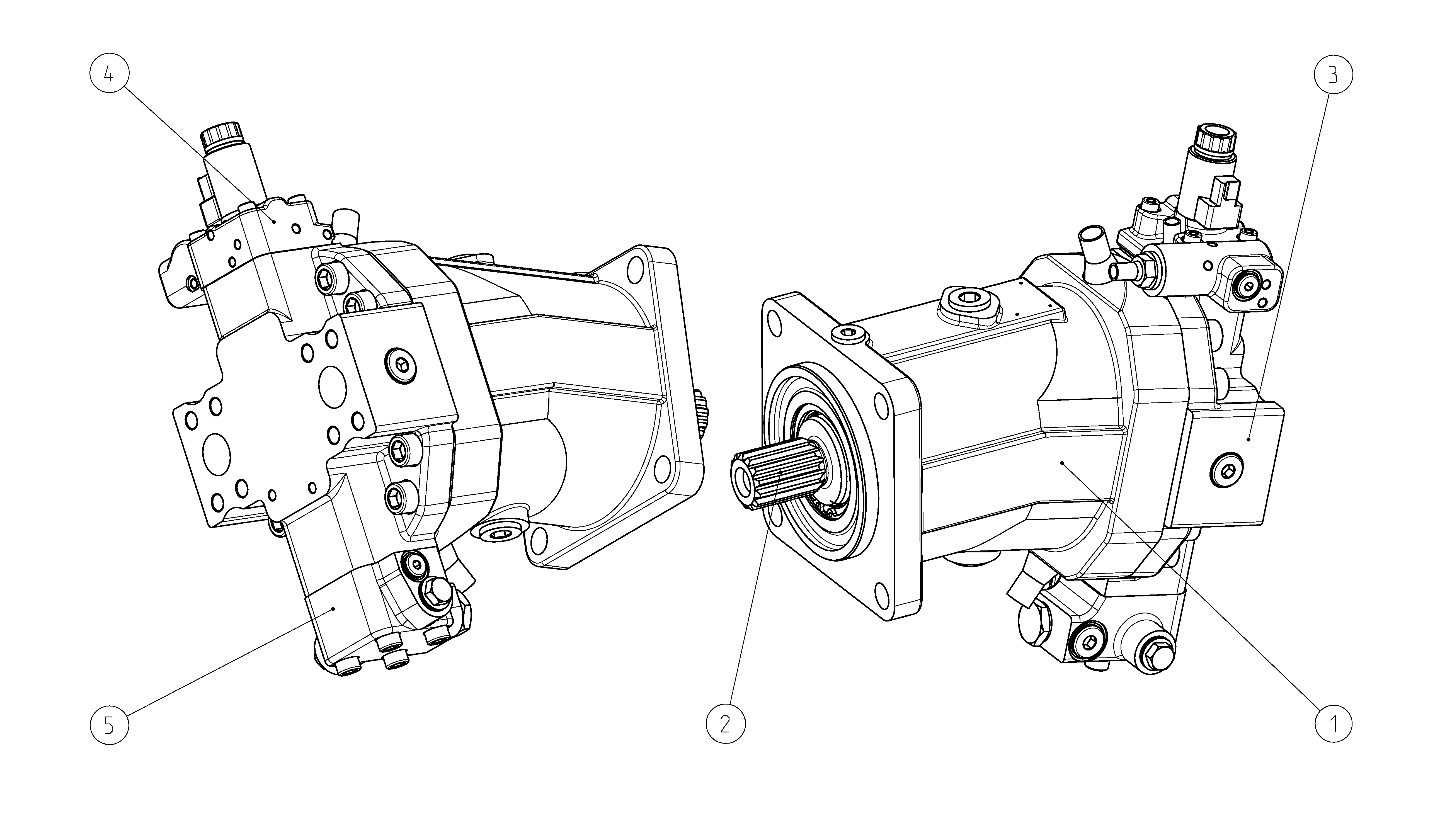

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902227128 | HOUSING Assembly parts list →L | 1 | ||
| R902277868 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902279463 | COVER PLATE Assembly parts list →L | 1 | ||
| R902235873 | CONTROL PART Assembly parts list →L | 1 | ||
| R902217051 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 160 | 160 |
| Control device | Proportional control, electric (with HIRSCHMANN U = 12 V connector – without suppressor diode) | EP1 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
