Unit · AXIAL-PISTON MOTOR
A6VM28HA1/63W-VZB02000AR902226298
Axial piston motor Bosch Rexroth series A6VM, type code A6VM28HA1/63W-VZB02000A, material number R902226298. Nominal size: NG 28. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar (HA1). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Beginning of control: at Vg min (standard for HA) (A).
- Number
- R902226298
- Type code
- A6VM28HA1/63W-VZB02000A
- Group
- A6VM 28
- Edition
- 06/2020

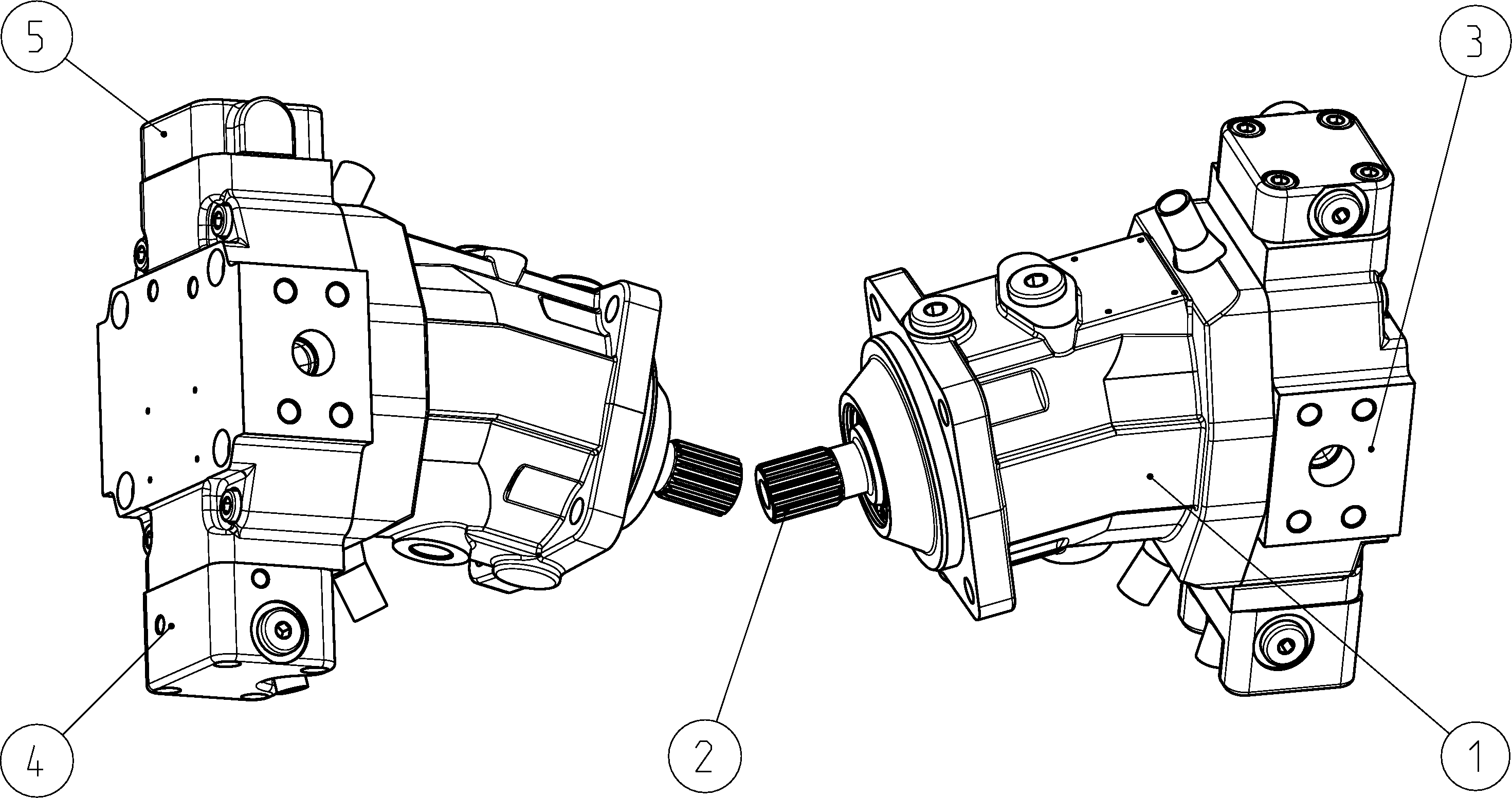

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902224361 | HOUSING Assembly parts list →L | 1 | ||
| R909603914 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902186450 | COVER PLATE Assembly parts list →L | 1 | ||
| R909604034 | CONTROL PART Assembly parts list →L | 1 | ||
| R902203650 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 28 | 28 |
| Control device | Automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar | HA1 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Beginning of control | At Vg min (standard for HA) | A |
