Unit · AXIAL-PISTON PUMP
A4VG145EP2D/40+A11VO75DRS/10R902226478
Axial piston pump Bosch Rexroth series A4VG, type code A4VG145EP2D/40+A11VO75DRS/10, material number R902226478. Nominal size: NG 145. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, electric U = 24 V (EP2). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Swivel angle sensor: without swivel angle sensor (0).
- Number
- R902226478
- Type code
- A4VG145EP2D/40+A11VO75DRS/10
- Group
- A11VO 75
- Edition
- 01/2020

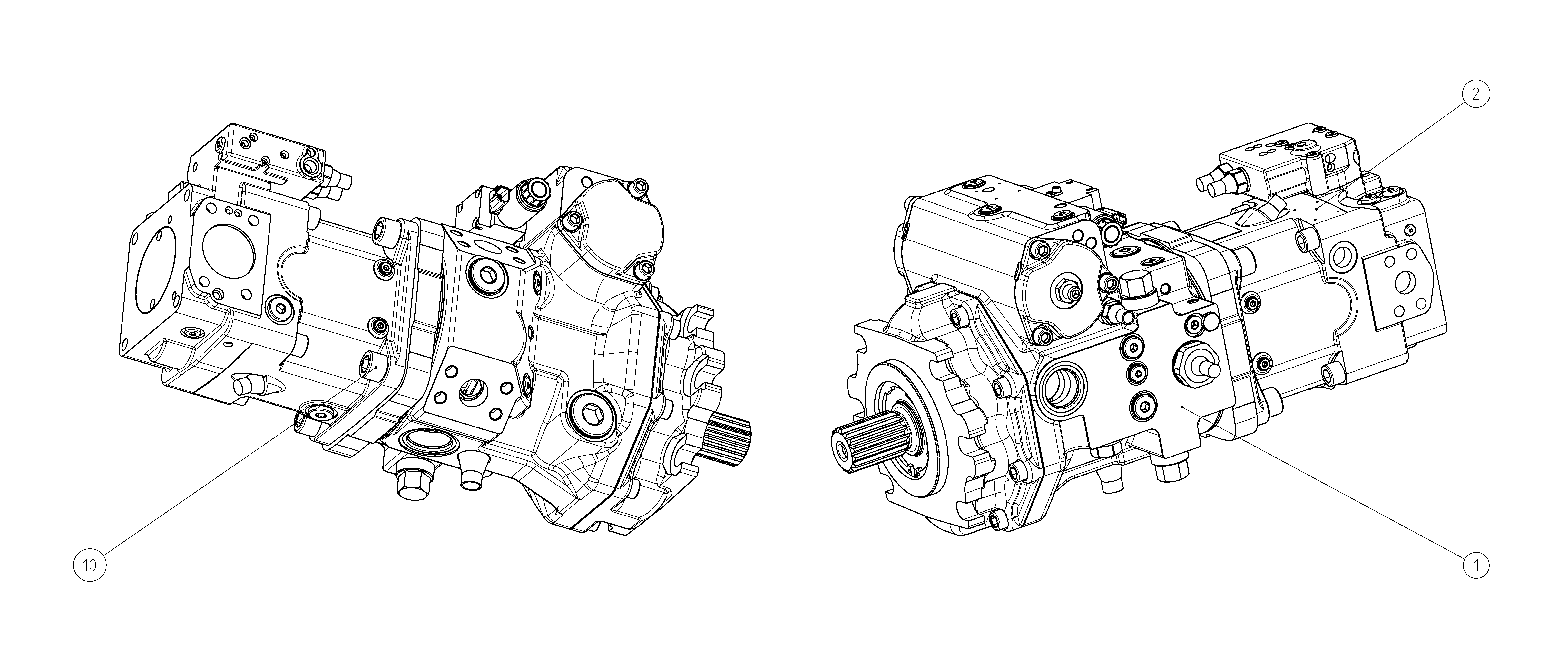

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902226476 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902227521 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083154 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 145 | 145 |
| Control device | Proportional control, electric U = 24 V | EP2 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Swivel angle sensor | Without swivel angle sensor | 0 |
