Unit · AXIAL-PISTON MOTOR
AA6VM107HA2R2/63W-VXD517FPA-SR902227528
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM107HA2R2/63W-VXD517FPA-S, material number R902227528. Axial piston unit: bent-axis design, variable (AA6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with pressure increase Δp = 1450 psi (100 bar) (HA2). Direction of rotation: viewed on drive shaft bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Mounting flange: SAE J744 - 4-bolt 165-4 (D). Working port: SAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7 (517). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S).
- Number
- R902227528
- Type code
- AA6VM107HA2R2/63W-VXD517FPA-S
- Group
- A6VM 107
- Edition
- 06/2020

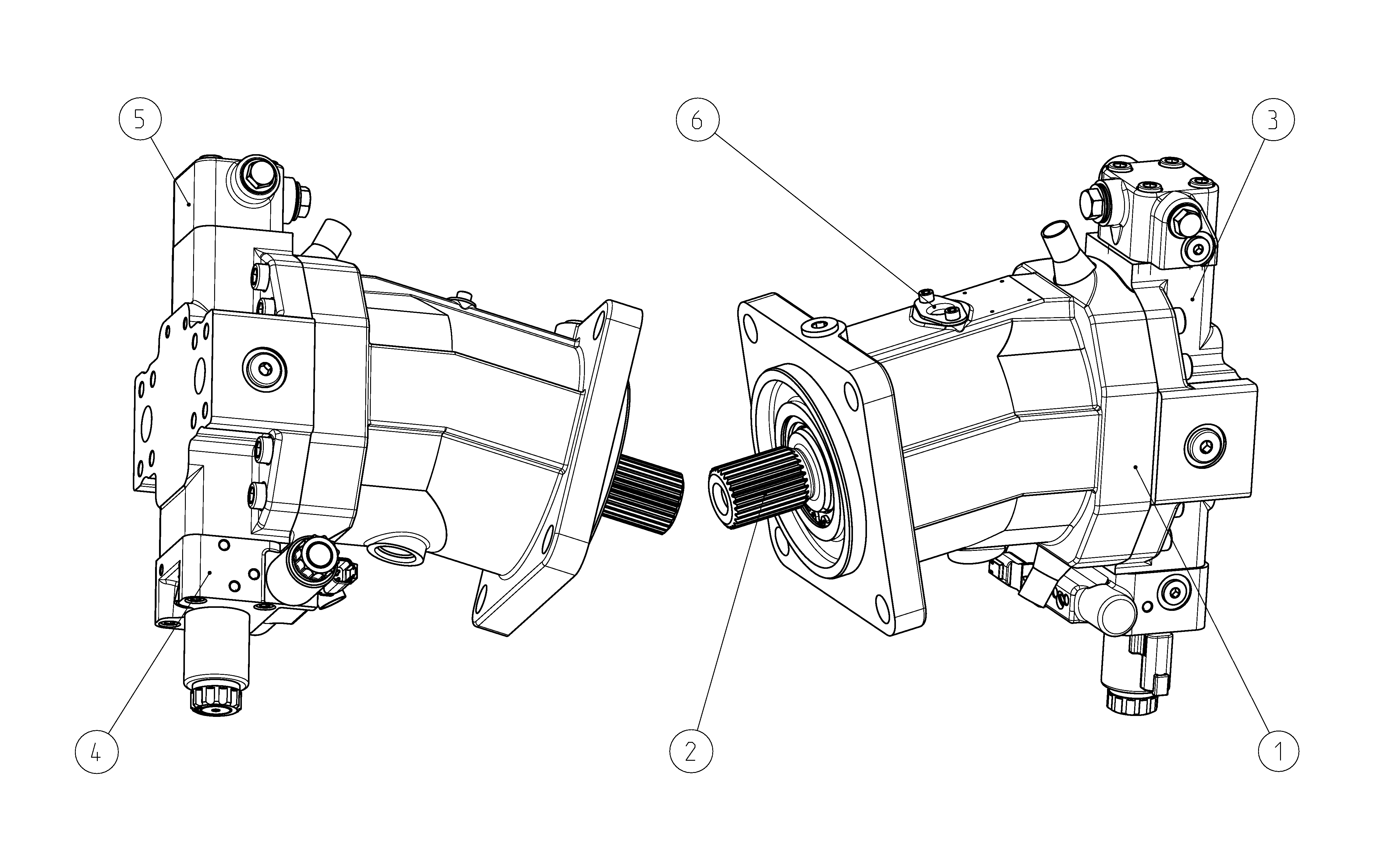

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902209686 | HOUSING Assembly parts list →L | 1 | ||
| R902227033 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902207660 | COVER PLATE Assembly parts list →L | 1 | ||
| R902227029 | CONTROL PART Assembly parts list →L | 1 | ||
| R902206880 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902151719 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | AA6V |
| Operating mode | Motor | M |
| Control device | Automatic control, high-pressure related with pressure increase Δp = 1450 psi (100 bar) | HA2 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Mounting flange | SAE J744 - 4-bolt 165-4 | D |
| Working port | SAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7 | 517 |
| Beginning of control | At Vg min (standard for HA) | A |
| Standard/special version | Special version | -S |
