Unit · AXIAL-PISTON PUMP
A4VG085EV1/40MR+AA10VO63DRF/53RR902227785
Axial piston pump Bosch Rexroth series A4VG, type code A4VG085EV1/40MR+AA10VO63DRF/53R, material number R902227785. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Additional function: neutral valve U = 24 V and mechanical stroke limiter, externally adjustable (V). DA control valve (only for NG110 and 125): DA control valve, fixed setting (1). Configuration of port and fastening threads: metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN (M). Direction of rotation: viewed on drive shaft clockwise (R).
- Number
- R902227785
- Type code
- A4VG085EV1/40MR+AA10VO63DRF/53R
- Group
- A10VO 63
- Edition
- 01/2020

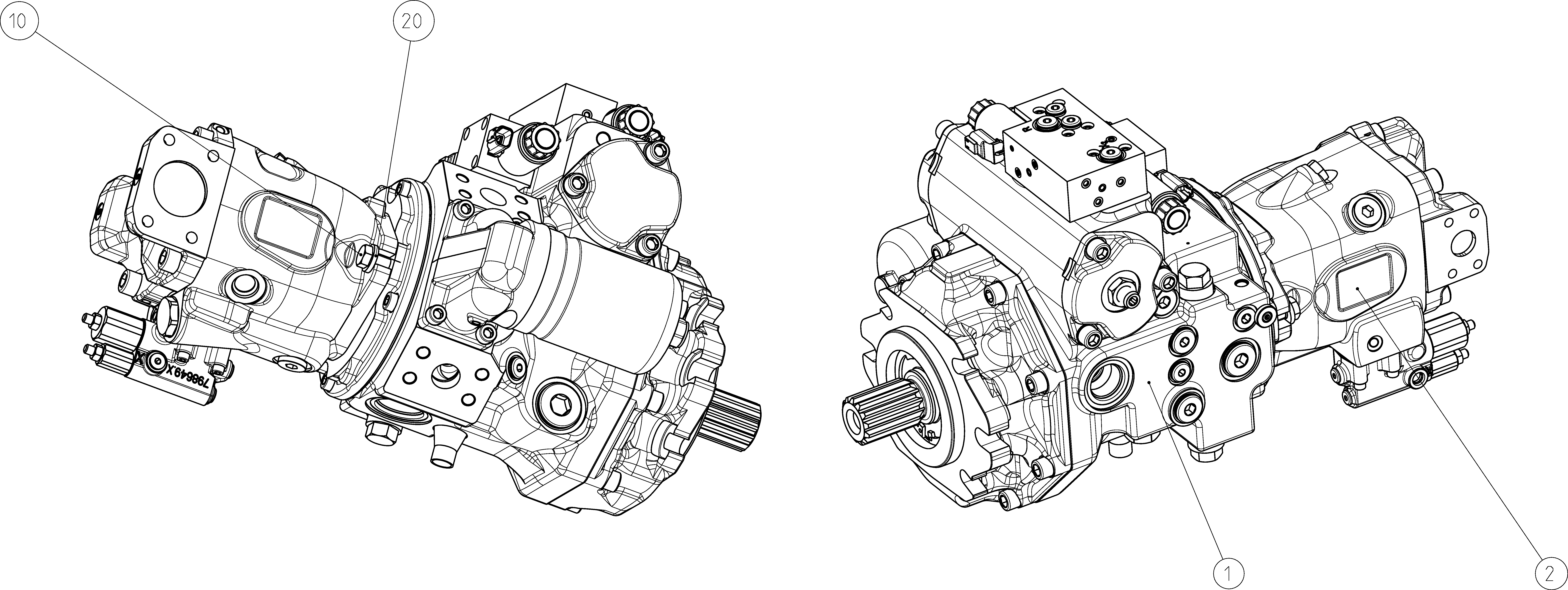

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902227786 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902478475 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083707 | HEXAGON SCREW | 2 | ||
| R909430409 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 85 | 085 |
| Additional function | Neutral valve U = 24 V and mechanical stroke limiter, externally adjustable | V |
| DA control valve (only for NG110 and 125) | DA control valve, fixed setting | 1 |
| Configuration of port and fastening threads | Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN | M |
| Direction of rotation | Viewed on drive shaft clockwise | R |
