Unit · AXIAL-PISTON MOTOR
A6VE80EP6/63W-VAL027UPBR902229018
Axial piston motor Bosch Rexroth series A6VM, type code A6VE80EP6/63W-VAL027UPB, material number R902229018. Nominal size: NG 80. Axial piston unit: bent-axis design, variable (A6V). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R902229018
- Type code
- A6VE80EP6/63W-VAL027UPB
- Group
- A6VE 80
- Edition
- 07/2020

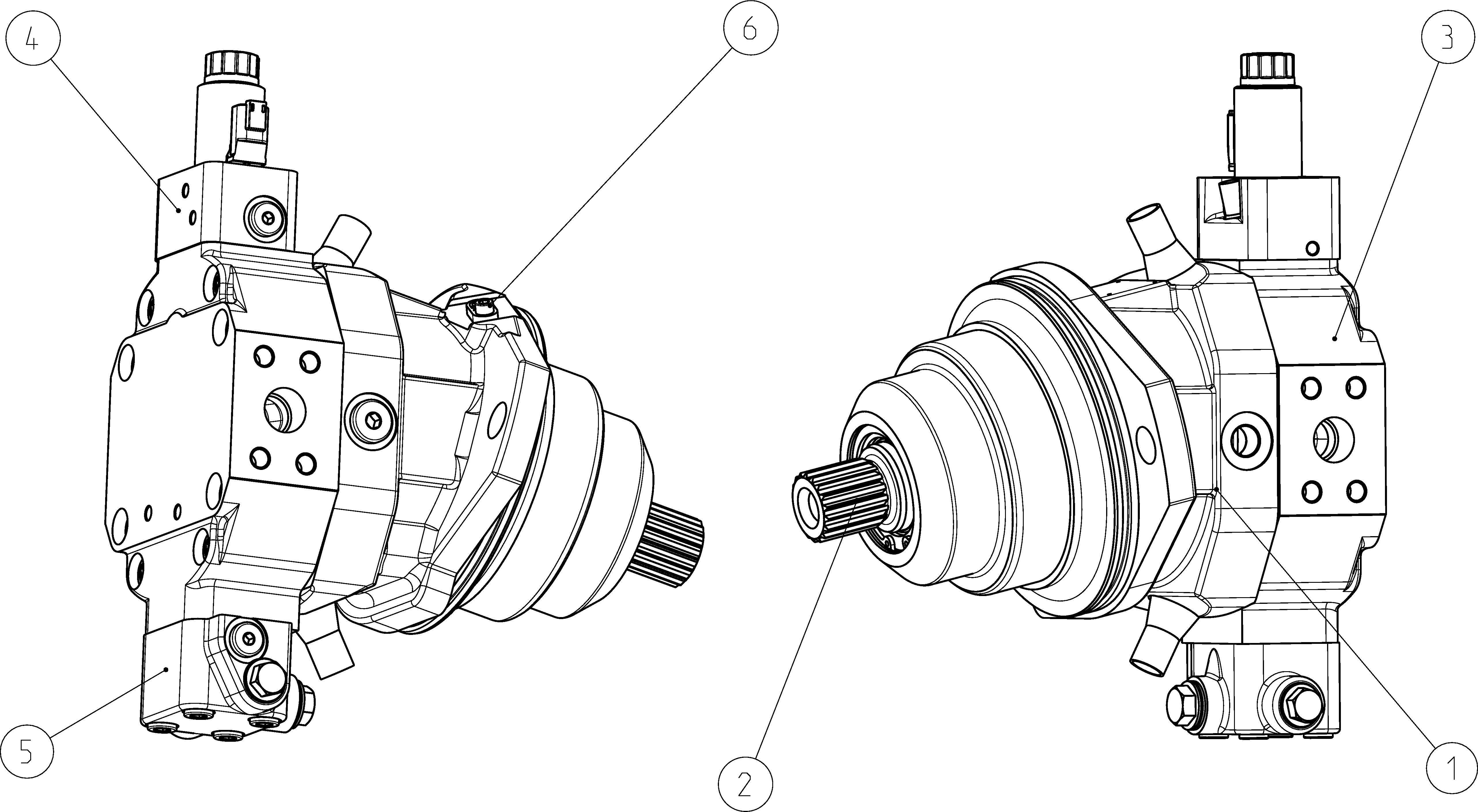

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902214842 | HOUSING Assembly parts list →L | 1 | ||
| R909604699 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902156193 | COVER PLATE Assembly parts list →L | 1 | ||
| R902189094 | CONTROL PART Assembly parts list →L | 1 | ||
| R902206864 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902191651 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 80 | 80 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 027 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
