Unit · PUMP COMBINATION
A10VG45HW/10+A10VG45DG/10R902229203
Pump combination Bosch Rexroth series A10VG, type code A10VG45HW/10+A10VG45DG/10, material number R902229203. Nominal size: NG 45. Operating mode: pump, closed circuit (G). Control device: proportional control, hydraulic mechanical servo (HW).
- Number
- R902229203
- Type code
- A10VG45HW/10+A10VG45DG/10
- Group
- A10VG 45
- Edition
- 06/2020

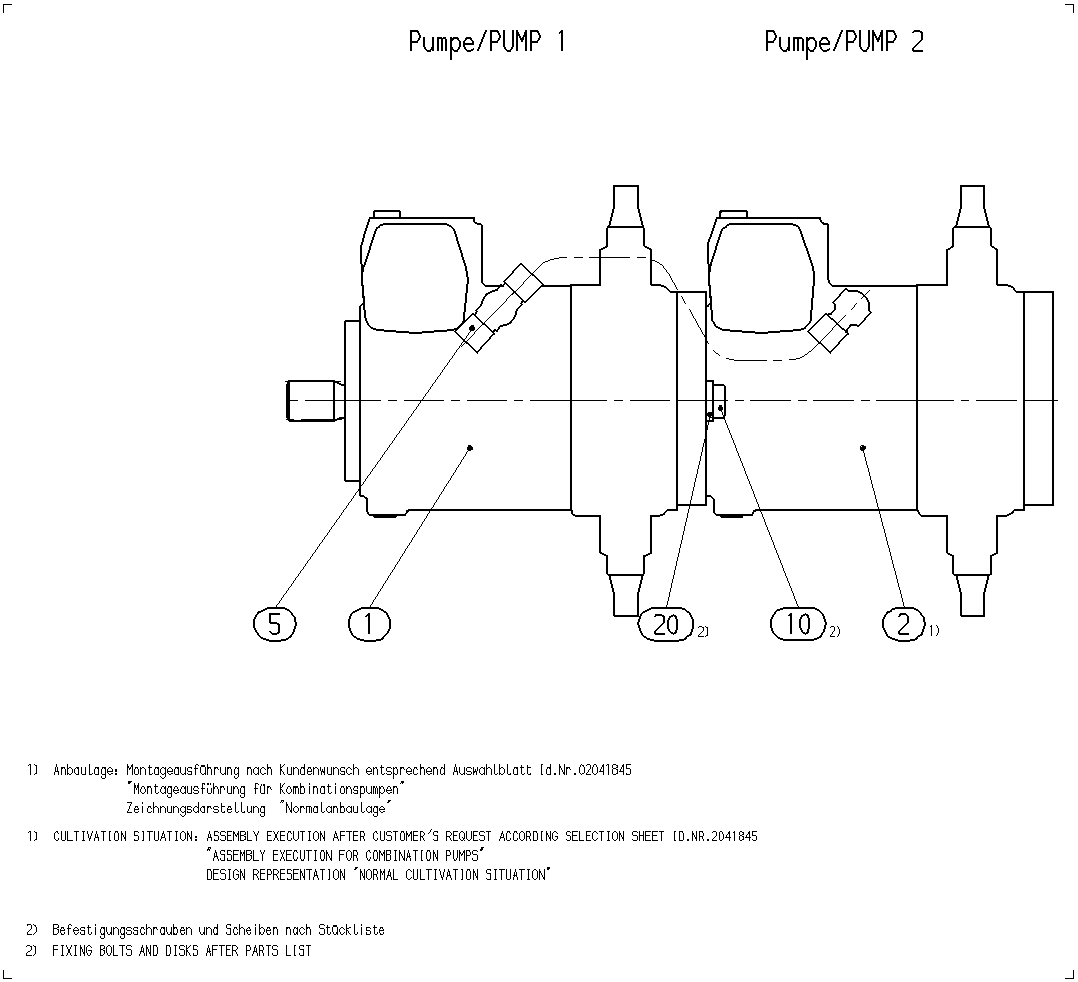

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902229201 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902229202 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 6 | R902079368 | HYDRAULIC LINE Assembly parts list →L | 2 | |
| R909083089 | SOCKET HEAD CAP SCREW | 2 | ||
| R909430409 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 45 | 45 |
| Control device | Proportional control, hydraulic mechanical servo | HW |
| Series | Series 1, index 0 | 10 |
