Unit · AXIAL-PISTON PUMP
A7VO80LA1S5/63R-NSC02 '542863' *EW*R902230456
Axial piston pump Bosch Rexroth series A7VO, type code A7VO80LA1S5/63R-NSC02'542863'*EW*, material number R902230456. Nominal size: NG 80. Axial piston unit: bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A7V). Operating mode: pump, open circuit (O). Control device: (only with load sensing and hydraulically proportional LS-override (LA1S5). Direction of rotation: viewed on drive shaft (R). Port plate for working lines: SAE flange ports A and S at side (available for power controllers LA1S and LA1S5 only, metric (02).
- Number
- R902230456
- Type code
- A7VO80LA1S5/63R-NSC02 '542863' *EW*
- Group
- A7VO 80
- Edition
- 06/2020

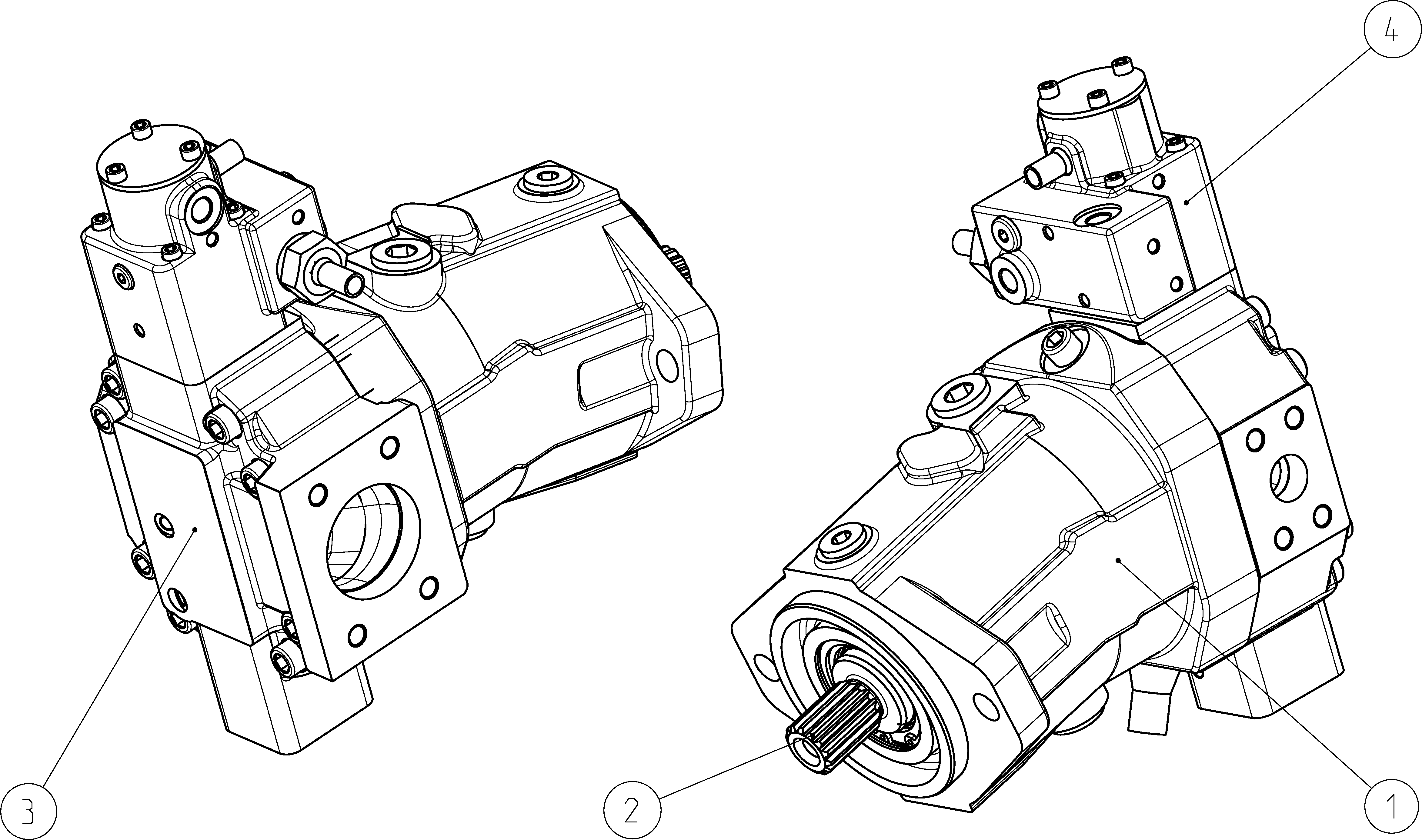

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902230484 | HOUSING Assembly parts list →L | 1 | ||
| R902230454 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902221991 | COVER PLATE Assembly parts list →L | 1 | ||
| R902230391 | CONTROL UNIT Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A7V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 80 | 80 |
| Control device | (only with load sensing and hydraulically proportional LS-override | LA1S5 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft | R |
| Port plate for working lines | SAE flange ports A and S at side (available for power controllers LA1S and LA1S5 only, metric | 02 |
