Unit · AXIAL-PISTON PUMP
A4VG085EP2/40MR+A4VG085EP2/40MRR902231492
Axial piston pump Bosch Rexroth series A4VG, type code A4VG085EP2/40MR+A4VG085EP2/40MR, material number R902231492. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, electric U = 24 V (EP2). Connector for solenoids: without connector (only for purely hydraulic control) (0). Additional function: neutral valve U = 12 V and ports X X for stroking chamber pressure (R).
- Number
- R902231492
- Type code
- A4VG085EP2/40MR+A4VG085EP2/40MR
- Group
- A4VG 85
- Edition
- 01/2020

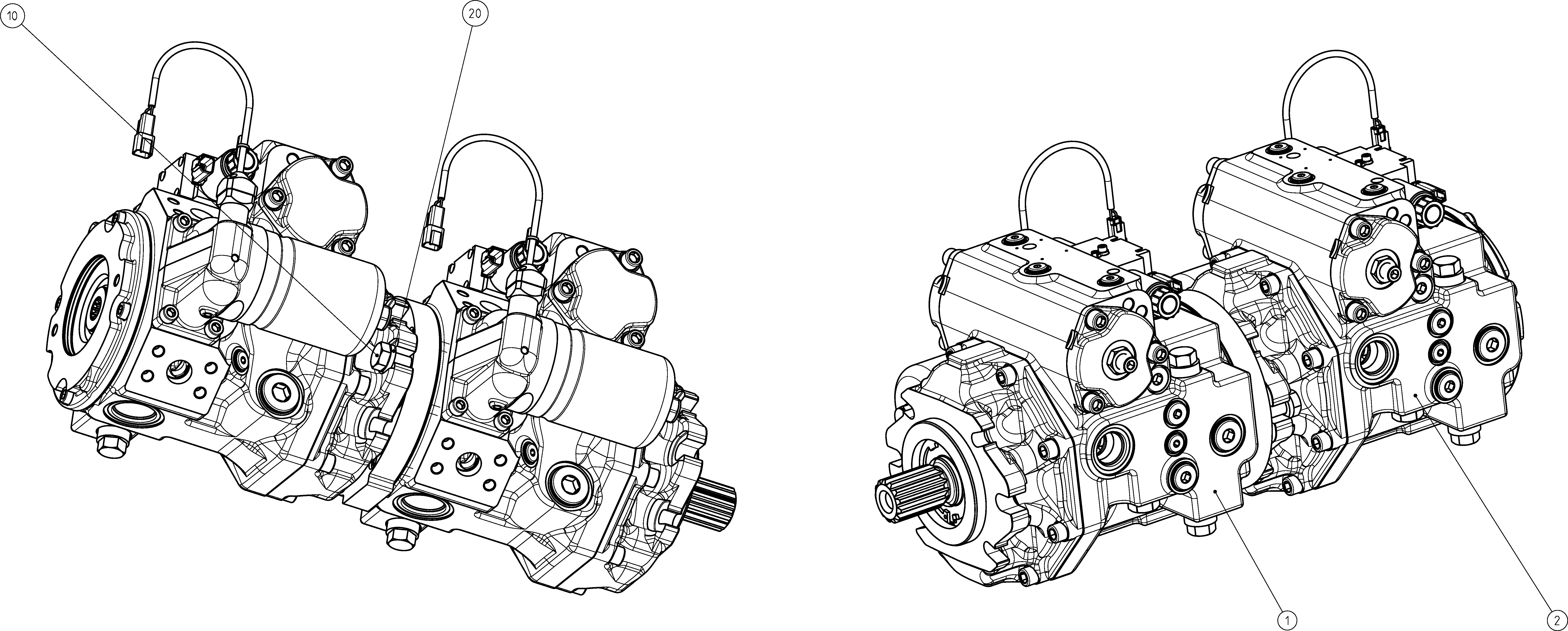

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902231490 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902231491 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909086139 | HEXAGON SCREW | 2 | ||
| R909430408 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 85 | 085 |
| Control device | Proportional control, electric U = 24 V | EP2 |
| Connector for solenoids | Without connector (only for purely hydraulic control) | 0 |
| Additional function | Neutral valve U = 12 V and ports X X for stroking chamber pressure | R |
