Unit · AXIAL-PISTON MOTOR
A6VM140HD2D/63W-VZB388F0B-YR902232642
Axial piston motor Bosch Rexroth series A6VM, type code A6VM140HD2D/63W-VZB388F0B-Y, material number R902232642. Nominal size: NG 140. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic ΔpSt = 25 bar (HD2). Pressure control (only for HD and EP): pressure control Fixed setting (D). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Mounting flange: ISO 3019-2 4-hole (B). Working port: port plate with 1-stage pressure relief valves (pilot operated) for mounting a counterbalance valve MHB Mounted counterbalance valve 8 (388). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R902232642
- Type code
- A6VM140HD2D/63W-VZB388F0B-Y
- Group
- A6VM 140
- Edition
- 06/2020

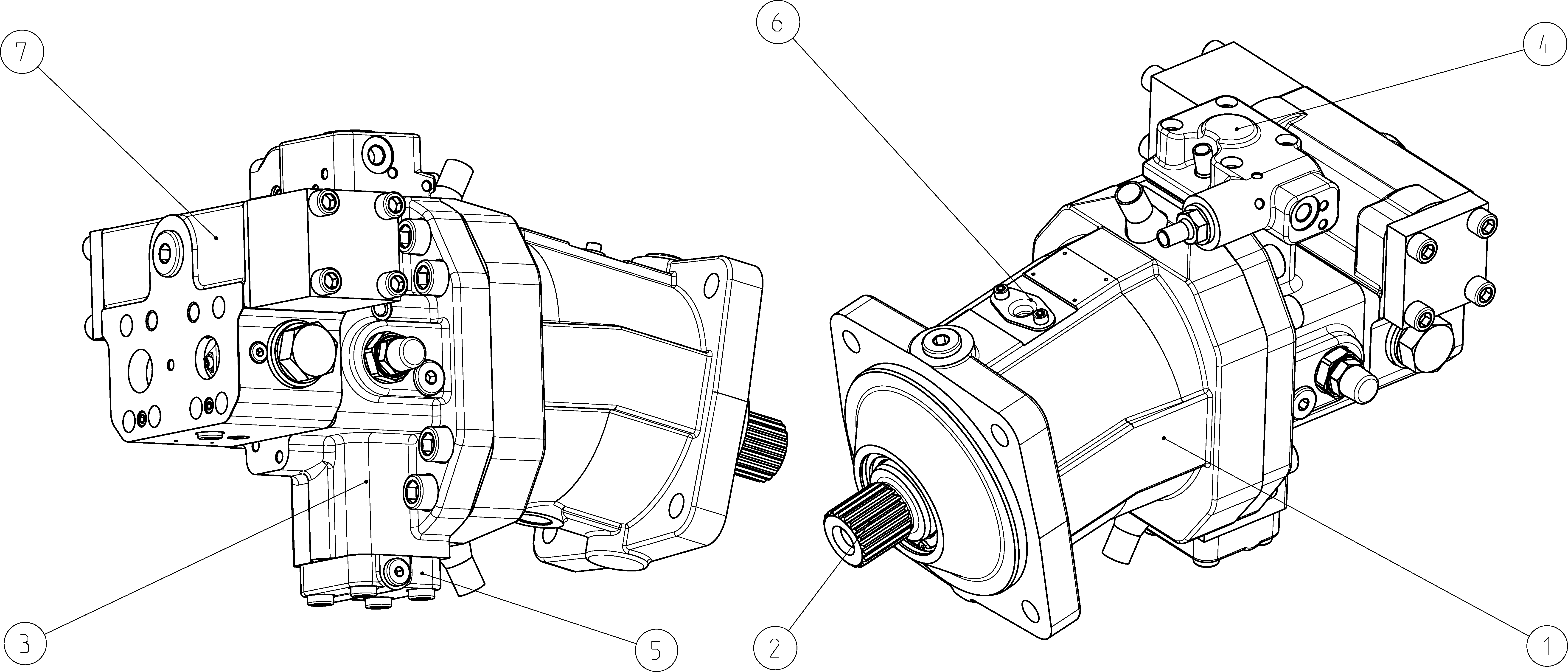

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902235782 | HOUSING Assembly parts list →L | 1 | ||
| R902281649 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902281546 | COVER PLATE Assembly parts list →L | 1 | ||
| R902235716 | CONTROL PART Assembly parts list →L | 1 | ||
| R902158562 | COVER Assembly parts list →L | 1 | ||
| R902151719 | FLANGE COVER | 1 | ||
| R902228523 | BRAKE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 140 | 140 |
| Control device | Proportional control, hydraulic ΔpSt = 25 bar | HD2 |
| Pressure control (only for HD and EP) | Pressure control Fixed setting | D |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | Port plate with 1-stage pressure relief valves (pilot operated) for mounting a counterbalance valve MHB Mounted counterbalance valve 8 | 388 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
