Unit · AXIAL-PISTON MOTOR
A6VM107HZ7000001P/65AWV0D4T1200-0R902232877
Axial piston motor Bosch Rexroth series A6VM, type code A6VM107HZ7000001P/65AWV0D4T1200-0, material number R902232877. Nominal size: NG 107. Axial piston unit: bent-axis design, variable, nominal pressure 5800 psi (400 bar), maximum pressure (A6V). Operating mode: motor (M). Control device: two-point control hydraulic (HZ7). Pressure control/override: without pressure control/override (00). Additional function 1: without additional function (0). Additional function 2: without additional function (0). Response time damping: damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with counterbalance (1). Configuration of ports and fastening threads: ANSI, port threads with O-ring sealing according to ISO 11926 (A). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: SAE J744 152-4 (D4). Drive shaft: splined shaft ANSI B92.1a 1 3/4 in 13T 8/16 DP (T1). Port plate for working ports: SAE working ports A and B at side, opposite (2).
- Number
- R902232877
- Type code
- A6VM107HZ7000001P/65AWV0D4T1200-0
- Group
- A6VM 107
- Edition
- 06/2020

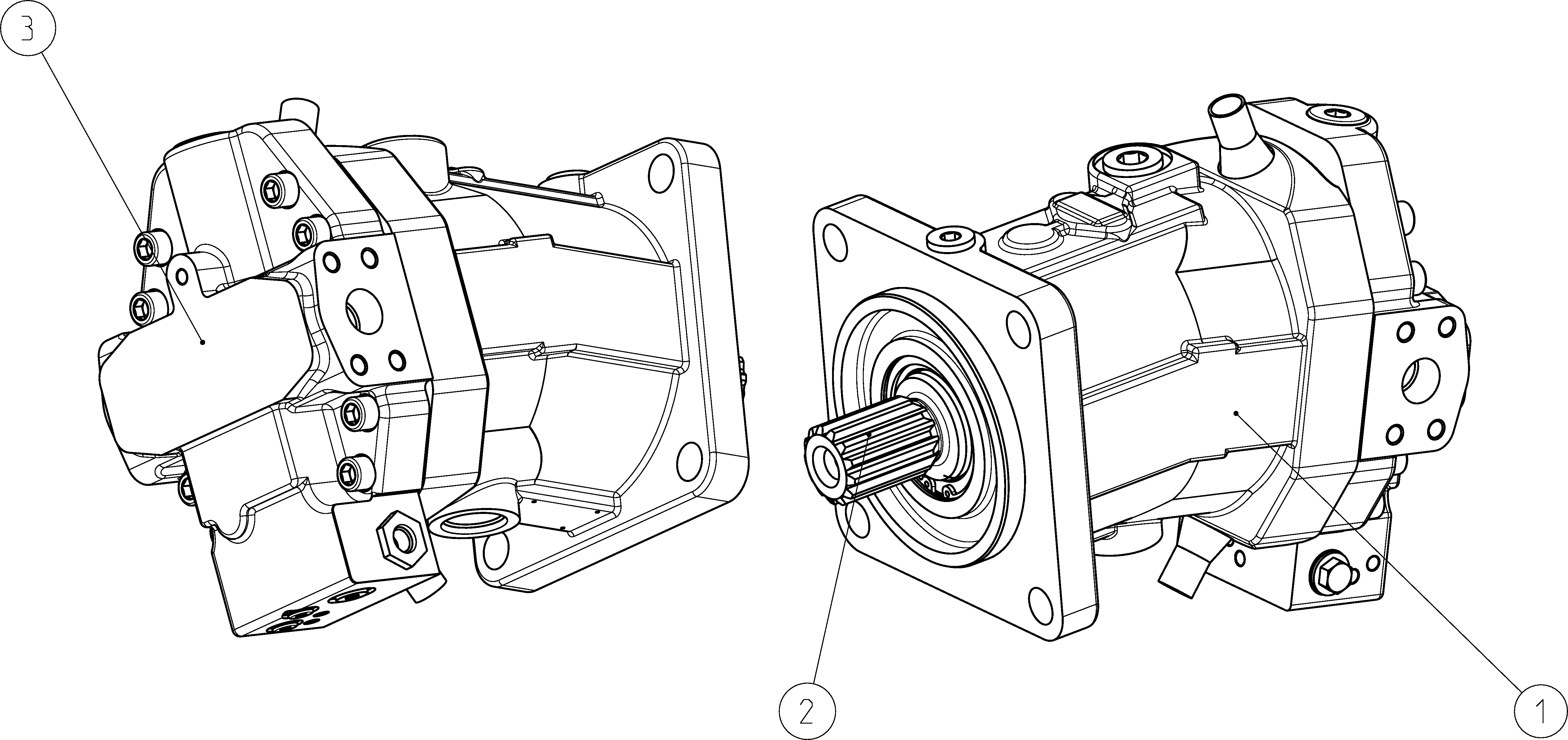

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902242974 | HOUSING Assembly parts list →L | 1 | ||
| R909604151 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902191736 | COVER PLATE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 5800 psi (400 bar), maximum pressure | A6V |
| Operating mode | Motor | M |
| Size (NG) | 107 | 107 |
| Control device | Two-point control hydraulic | HZ7 |
| Pressure control/override | Without pressure control/override | 00 |
| Without connector (without solenoid, only for hydraulic control) | 0 | |
| Additional function 1 | Without additional function | 0 |
| Additional function 2 | Without additional function | 0 |
| Response time damping | Damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with counterbalance | 1 |
| Series | Series 6, index 5 | 65 |
| Configuration of ports and fastening threads | ANSI, port threads with O-ring sealing according to ISO 11926 | A |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | SAE J744 152-4 | D4 |
| Drive shaft | Splined shaft ANSI B92.1a 1 3/4 in 13T 8/16 DP | T1 |
| Port plate for working ports | SAE working ports A and B at side, opposite | 2 |
| Valve | Without valve | 0 |
| Speed sensor | Without speed sensor | 0 |
| Standard / special version | Standard version | 0 |
