Unit · AXIAL-PISTON MOTOR

A6VE107HA1T/63W-VZL52700A-SR902232916

Axial piston motor Bosch Rexroth series A6VM, type code A6VE107HA1T/63W-VZL52700A-S, material number R902232916. Nominal size: NG 107. Axial piston unit: bent-axis design, variable (A6V). Control device: automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar (HA1). Override (only for HA): override, hydraulic, remote controlled, proportional (T). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S).

Number
R902232916
Type code
A6VE107HA1T/63W-VZL52700A-S
Group
A6VE 107
Edition
06/2020

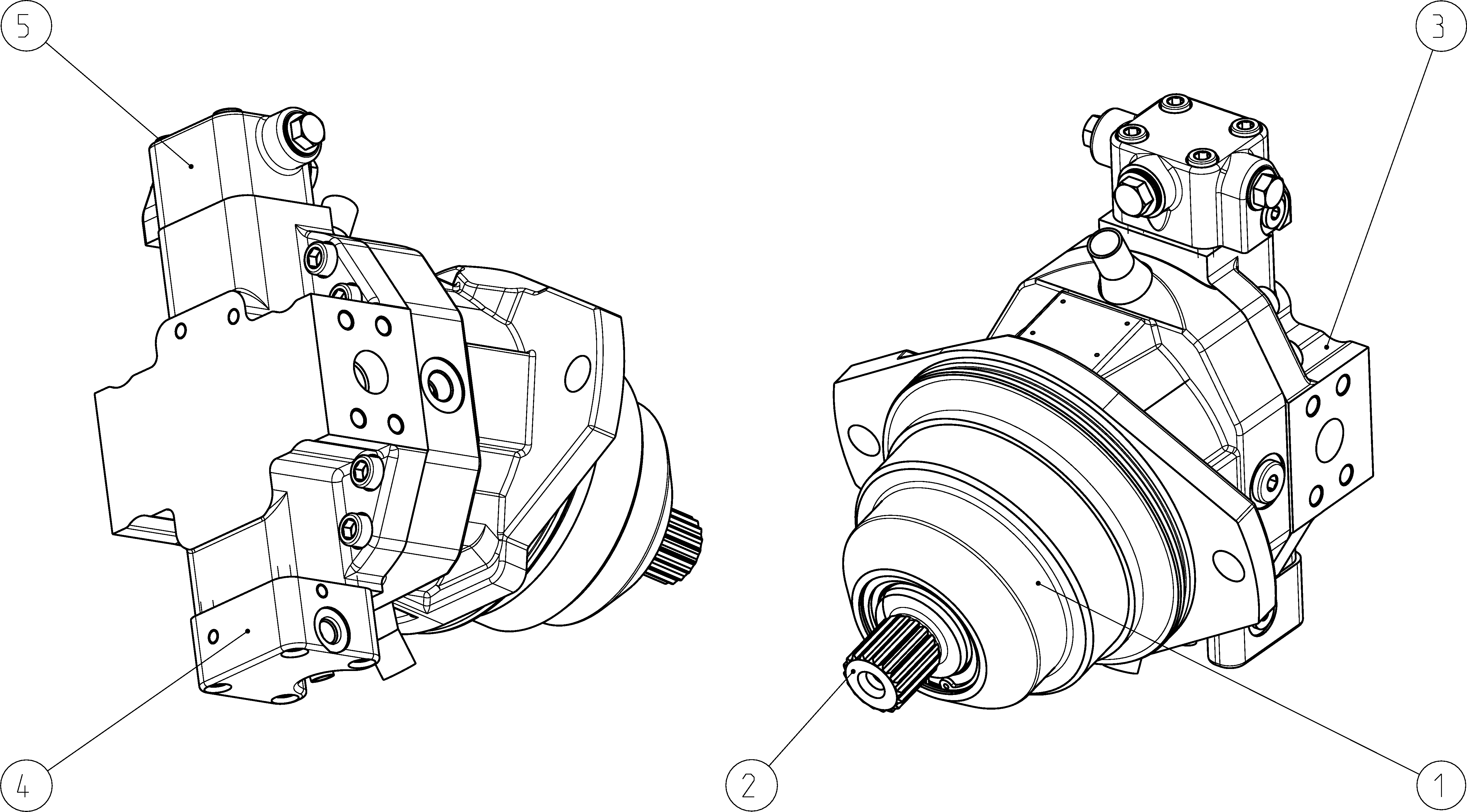

A6VE107HA1T/63W-VZL52700A-S — Drawing
Pos.NumberNameQtyAdd to inquiry
R902246028HOUSING Assembly parts list →L1
R902024835ROTARY GROUP Assembly parts list →L1
R902203781COVER PLATE Assembly parts list →L1
R902221806CONTROL PART Assembly parts list →L1
R902206880FLUSH/BOOST PRESSURE VALVE Assembly parts list →L1

Parameters from the type code

ItemMeaningCode
Axial piston unitBent-axis design, variableA6V
Size (NG)107107
Control deviceAutomatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 barHA1
Override (only for HA)Override, hydraulic, remote controlled, proportionalT
SeriesSeries 6, index 363
Direction of rotationViewed on drive shaft variableW
Sealing materialFKM (fluoroelastomer)V
Drive shaftSplined shaft DIN 5480Z
Beginning of controlAt Vg min (standard for HA)A
Standard/special versionSpecial version-S

Other versions 9
