Unit · AXIAL-PISTON PUMP
A4VG045EP1DP0N0/40MRNC2Z81B0000AB0V-0R902233111
Axial piston pump Bosch Rexroth series A4VG, type code A4VG045EP1DP0N0/40MRNC2Z81B0000AB0V-0, material number R902233111. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, U = 12 V electric (EP1). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: neutral valve U = 12 V (N). DA control valve (only for NG110 and 125): without DA control valve (0). Configuration of port and fastening threads: metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN (M). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) (N). Working port: SAE working port A and B, on left side (45° left) (1). Boost pump and rotary group configuration: standard rotary group boost pump integrated, large internal gear pump (B). Through drive: without through drive (0000).
- Number
- R902233111
- Type code
- A4VG045EP1DP0N0/40MRNC2Z81B0000AB0V-0
- Group
- A4VG 45
- Edition
- 01/2020

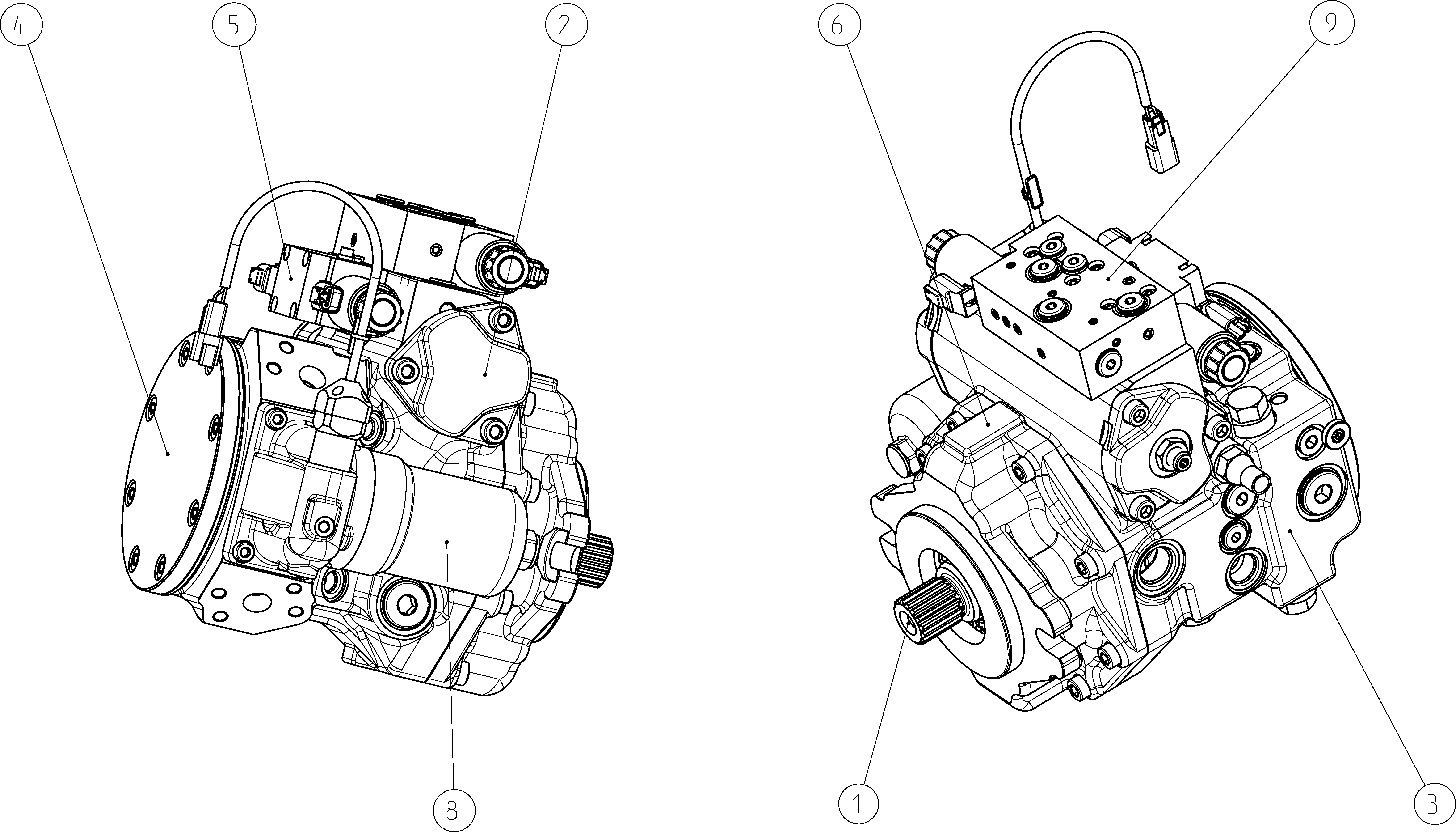

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902230779 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902121297 | CONTROL Assembly parts list →L | 1 | ||
| R902230776 | PUMP HOUSING Assembly parts list →L | 1 | ||
| R902230504 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902156788 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902108669 | BEARING FLANGE Assembly parts list →L | 1 | ||
| R902137407 | MOUNTABLE FILTER Assembly parts list →L | 1 | ||
| R902215855 | UNLOADING VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 45 | 045 |
| Control device | Proportional control, U = 12 V electric | EP1 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Neutral valve U = 12 V | N |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
| Configuration of port and fastening threads | Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN | M |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) | N |
| Working port | SAE working port A and B, on left side (45° left) | 1 |
| Boost pump and rotary group configuration | Standard rotary group boost pump integrated, large internal gear pump | B |
| Through drive | Without through drive | 0000 |
| High-pressure relief valve | High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting | A |
| Filtration boost circuit/external boost pressure supply | Attachment filter with cold start valve and electric contamination indicator – DEUTSCH con- nector | B |
| Pressure sensor | Without pressure sensor | 0 |
| Other sensors | Speed sensor DSM, DSA | V |
| Standard / special version | Standard version | 0 |
